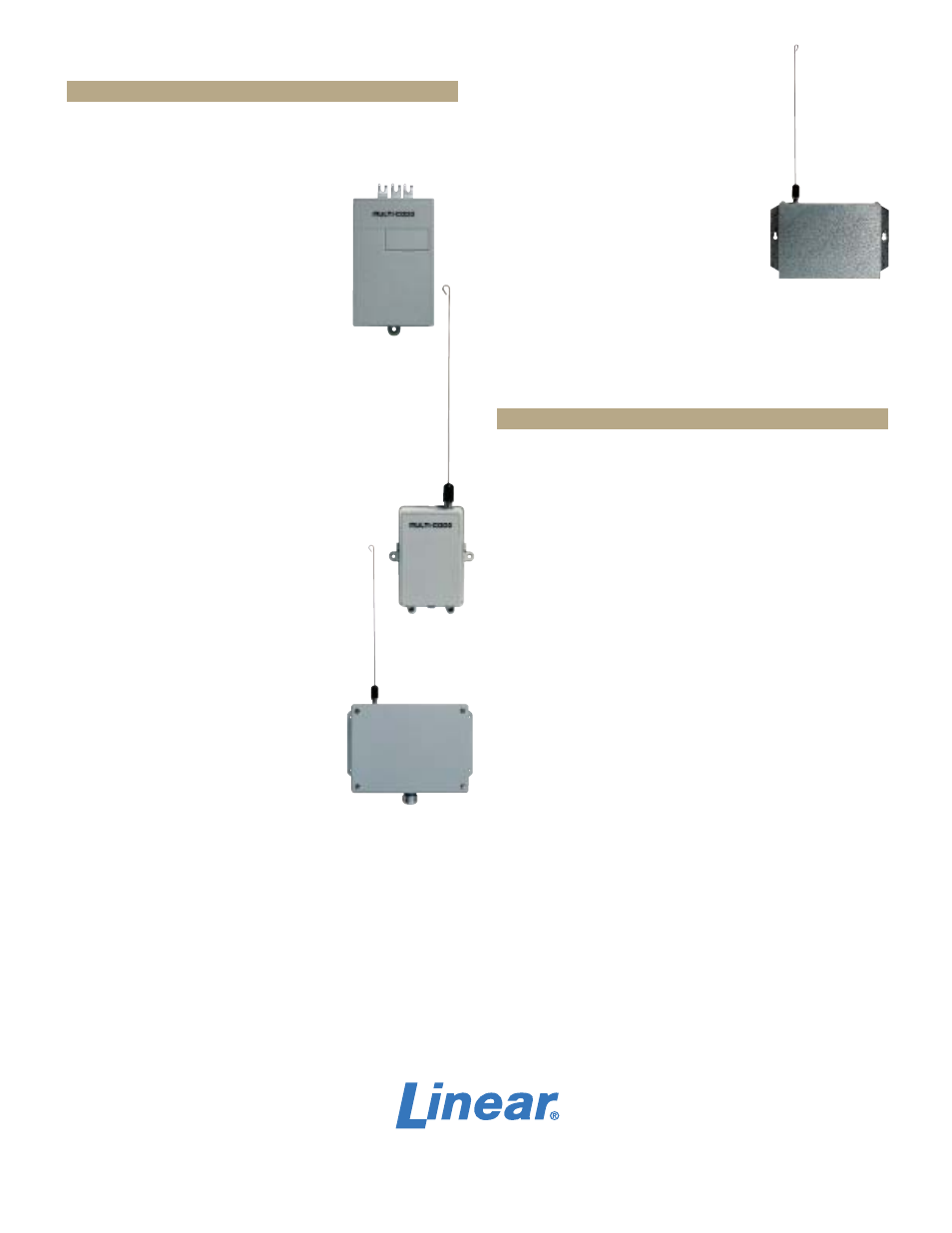

Model 3028 Light-Duty Commercial
Gate Receiver

• Identical to Model 3021, except for

enclosure

• Housed in light, stamped steel cabinet
• Ideal for sites with dual-channel

requirement and a protected
environment

Specifications

Power: 24 Vac ±10% power
Frequency: 300 MHz (310 MHz also
available)
Codes: 1,024 total (set by dip switches);
512 codes each of two channels
Dimensions: 6 x 8 x 2 inches

Accessories

Model 1066 Coaxial Cable

• For use with all 1099, 3021, and 3028 series receivers
• Includes 16 feet of coaxial cable with F-type

connectors at both ends, plus a BNC to F-type adapter
and a 5.25-inch mounting bracket with a 2.5-inch
outward extension

Model 1092-01 115 V Adapter Harness with Old
Style Terminal Block

• For use in applications with an older receiver

(with terminal lugs rather than spades)

• Includes six feet of wire, adapter to block, as well as

installation instructions

• 115 Vac transformer input
• Rated 1 amp @ 30 Vac maximum on relay contacts

Model 1092-06 24 Volt Adapter with Push/On
Connection
• For remote mounting where operator supplies 24V

power to radio through three terminal screws

• Push-on connectors at the radio and lugs for operator

terminal screws

• Includes three feet of wire

Model 1092-07 115 V Adapter Harness with
Push/On Connection

• For installations requiring a 115 Vac adapter
• Quick connection to 1090 receiver spade lugs (with lug

connections for operator pushbutton terminals)

• Includes six feet of wire (adapter to lug)
• 115 Vac transformer input
• Rated 1 amp @ 30 Vac maximum on relay contacts

Receivers

Model 1090 General Purpose Digital Receiver

• Exclusive two-way lugs fit under terminal screws or

accept push-on terminals in remote sites

• 11-inch wire antenna supplied
• Three tabs for universal operator

mounting

Specifications

Power: for connection to any
three-terminal 24 V operator (for higher
voltages, consult factory); no need for
separate transformer or adapter
Frequency: 300 MHz (310 MHz also available)
Codes: 1,024 (set by dip switches)
Dimensions: 3 x 5.5 x 1.5 inches

1099 Series Gate Receivers

• For use inside metal enclosures and in other

applications requiring stronger signal reception

• Antenna with coaxial connector supplied
• Three models for varying power inputs
• 1 amp output @ 30 Vac maximum on

relay contacts

Specifications

Available Models:

a. Model 1099-20: 115 Vac, transformer

input (included)

b. Model 1099-30: 24 V input
c. Model 1099-40: 12 V input

Frequency: 300 MHz (310 MHz also
available for Model 1099-30)
Codes: 1,024 (set by dip switches)
Dimensions: 5.25 x 3.625 x 1.5 inches

Model 3021 Heavy-Duty
Commercial Gate Receiver

• For any application requiring two channels in one

location — 512 codes each channel

• Up-down, open-emergency-stop, and other functions
• For heavy-duty operation
• Cabinet meets NEMA 13, JIC specs
• Two-channel relay output, N/O, N/C, Common — rated

1 amp @ 30 Vac max

Specifications

Power: 24 Vac ±10% power
Frequency: 300 MHz
Codes: 1,024 total (set by dip switches);
512 codes each of two channels
Dimensions: 6 x 8 x 4 inches
