Cypress Suprex® SPX-7200 Series - Door Strike and LED I/O
Note: The LED and Door Strike operation of the Ethernet Suprex® differs from previous Suprex® versions.
To activate the relay on the Remote unit, connect as shown below. These connections can be used to allow the
Remote relay to operate a DOOR STRIKE, GATE, or other locking hardware. Refer to following pages in this
document for details of each I/O operation and connection.
There are two relays available for accessory outputs at the Remote end. Either relay can be used to provide the
Door Strike or Gate activation function. This example uses Relay 1.

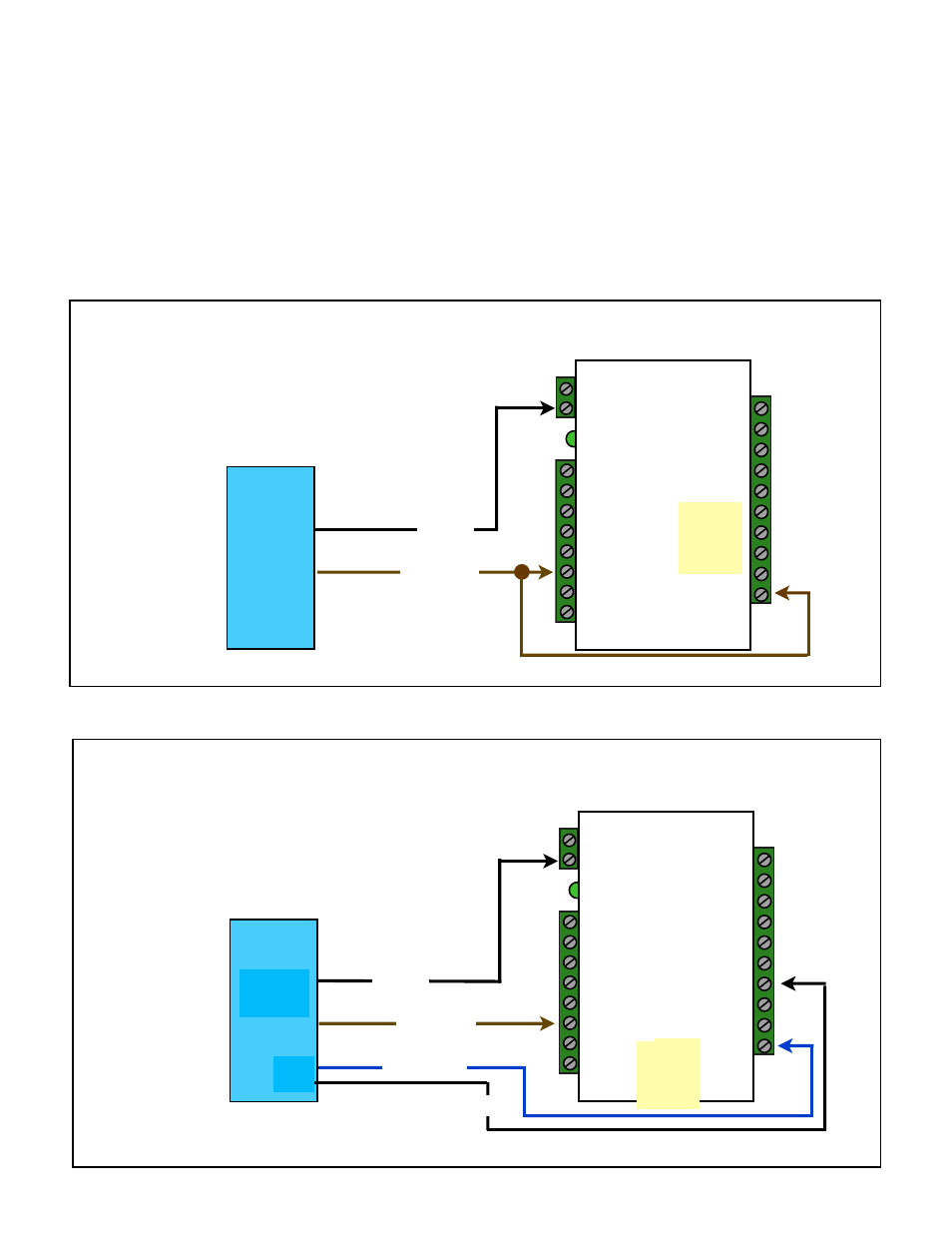

Wiring Example - Door Strike Follows LED
Access
Control
Panel
LED In
R1 IN
R1 Input
Controls
Strike on
Remote
Suprex RF Central
Ground
LED Signal
Ground
Wiring Example - Door Strike does not follow LED
LED Signal
Strike Signal
Access
Control
Panel
N.O.
Com
Ground
Ground
Ground
Suprex RF Central
R1 Input
Controls
Strike on
Remote
Ground
R1 IN
LED In
Only Relay and LED Connections are shown for clarity, refer to previous diagrams for Power and Data connections.
