Controlled Products Systems Group AP-5 - Manual (Page 2)

– 5 – SET TRANSMITTER BUTTONS – 6 – SET FACILITY CODES – 7 – MGT TRANSMITTER SUPERVISION – 8 – SUSPENDING/ACTIVATING MGT TXS
PRINTER’S INSTR
UCTIONS:
INSTR,INSTL,AP-5 - LINEAR P/N:
227701 A - INK:
BLA
CK - MA
TERIAL:
20 LB
. MEAD BOND - SIZE:
8.500”
X 11.000”
- SCALE:
1-1;
SIDE 2
OF 2
– 1 – ADDING TRANSMITTERS – 2 – ADDING AN MGT TRANSMITTER – 3 – ADDING MDKP OR MDTK KEYPADS – 4 – RELAY ACTIVATION TIME
– 9 – SUSPENDING/ACTIVATING TRANSMITTERS – 10 – REMOVING ALL TRANSMITTERS – 11 – REMOVING MGT TRANSMITTERS LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship for twenty-four
(24) months. This warranty extends only to wholesale customers who buy direct from
Linear or through Linear’s normal distribution channels. Linear does not warrant this product
to consumers. Consumers should inquire from their selling dealer as to the nature of the
dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear LLC
for consequential damages arising out of or in connection with use or performance of
this product or other indirect damages with respect to loss of property, revenue, or profi t,
or cost of removal, installation, or reinstallation. All implied warranties, including implied
warranties for merchantability and implied warranties for fi tness, are valid only until the warranty
expires. This Linear LLC Warranty is in lieu of all other warranties express or implied.
All products returned for warranty service require a Return Product Authorization Number (RPA#).
Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.
IMPORTANT!!!
Linear radio controls provide a reliable communications link and fi ll an important need in portable
wireless signalling. However, there are some limitations which must be observed.
• The radios are required to comply with FCC Part 15 and Industry Canada Rules and
Regulations. As such, they have limited transmitter power and therefore limited range.
• A receiver cannot respond to more than one transmitted signal at a time and may be
blocked by radio signals that occur on or near their operating frequencies, regardless of
code settings.
• Changes or modifi cations to the device may void FCC compliance.
• Infrequently used radio links should be tested regularly to protect against undetected
interference or fault.
• A general knowledge of radio and its vagaries should be gained prior to acting as a
wholesale distributor or dealer, and these facts should be communicated to the ultimate
users.
PRESS ← UTILITY FUNCTION #1 THEN 1-6 TO DISPLAY
STATUS FOR MGT TRANSMITTERS
IN MEMORY LOCATIONS 1-6
CANCEL PRESS
← CLEARS MGT STATUS FROM AP-5 MEMORY AND STOPS BEEPER
IF THE AP-5 BEEPS EVERY 5 SECONDS,
ONE OR MORE MGT OBSTACLE TRANSMITTER HAS SENT A SUPERVISORY SIGNAL
← INDICATES MGT TRANSMITTER LOW BATTERY
← INDICATES AN MGT TAMPER OR LOOP FAULT
← INDICATES THAT HOURLY STATUS REPORTS HAVE
NOT BEEN RECEIVED FROM THE MGT TRANSMITTER IN
THE PREVIOUS FOUR HOURS
← AFTER CLEARING, DASHES INDICATE THAT NO
SUPERVISORY CONDITIONS EXIST WITH THE MGT
TRANSMITTER
NOTE: WHEN ANY MGT HAS A SUPERVISORY CONDITION, TRANSMITTERS
WILL HAVE TO BE TRIGGERED TWICE TO GAIN ACCESS
NOTE: PRESS CANCEL WITHOUT PRESSING #1 TO CLEAR MGT
SUPERVISORY INDICATIONS FROM ALL MGT TRANSMITTERS

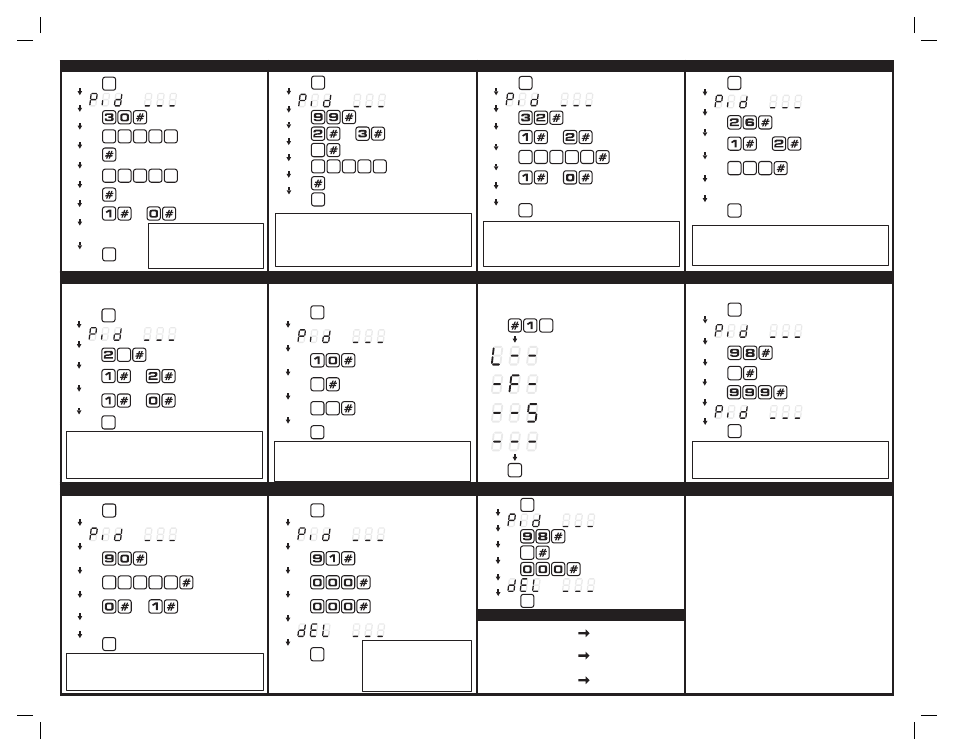

PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 3: PRESS
STEP 4: PRESS
← REMOVE COMMAND
STEP 5: PRESS
← EXITS
PROGRAM
MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← TRANSMITTER REMOVING FUNCTION NUMBER
NOTES:
PROGRAM
← MEMORY CLEAR DISPLAY: THEN:
← VERIFY REMOVE COMMAND
1. WARNING! ALL TRANSMITTERS INCLUDING
THE MGT TRANSMITTER WILL BE REMOVED
(TRANSMITTERS CANNOT BE INDIVIDUALLY
REMOVED)
2. WARNING! ALL OTHER OPTIONS WILL BE
RESET TO THE FACTORY DEFAULTS
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 3: PRESS ← RECEIVER FACILITY CODE LOCATION (FROM 1-4)
STEP 4: PRESS
← TRANSMITTER FACILITY CODE NUMBER
(FROM 1-15; 0 = IGNORE FACILITY CODE)
STEP 5: PRESS ← EXITS PROGRAM MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← FACILITY CODE FUNCTION NUMBER
NOTES:
PROGRAM
USE THESE STEPS ONLY IF TRANSMITTER BLOCKS HAVE BEEN
ORDERED WITH A PRE-SET FACILITY CODE
1. REPEAT STEPS 2-4, IF REQUIRED, FOR EACH OF THE FOUR RECEIVER FACILITY
CODE LOCATIONS
2. WHEN THE TRANSMITTER FACILITY CODE IS SET TO "0", THE RECEIVER WILL
ACCEPT ALL TRANSMITTERS REGARDLESS OF THEIR FACILITY CODE
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 3: PRESS
← SINGLE TRANSMITTER ID #
OR STARTING TRANSMITTER
BLOCK ID # (FROM 1-65535)
STEP 4: PRESS ← ENTERS ID #
STEP 5: PRESS
STEP 6: PRESS ← COMPLETE ID # ENTRY
STEP 8: PRESS ← EXITS
PROGRAM
MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← TRANSMITTER ADDING FUNCTION NUMBER
NOTE:
PROGRAM
← ENDING TRANSMITTER
BLOCK ID # (FROM 1-65535)
SKIP TO STEP 6 FOR SINGLE TRANSMITTERS
IF THE TRANSMITTER ID # IS NOT LABELED ON
A TRANSMITTER, TRIGGER THE TRANSMITTER
TO VIEW THE ID # ON THE AP-5 DISPLAY. USE
THE STAR KEY TO REVIEW THE LAST RECEIVED
ID # (PRESS THE DISPLAY BUTTON TO VIEW
THE LEFT THREE DIGITS OF THE ID #) REPEAT STEPS 2-7 TO
ADD MORE TRANSMITTERS
STEP 7: PRESS
← ENTER "1" FOR TIMED RELAY
ENTER "0" TO TOGGLE RELAY
OR
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 4: PRESS
← ENTER "1" TO ENABLE BUTTON
ENTER "0" TO DISABLE BUTTON
STEP 5: PRESS
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← TRANSMITTER BUTTON FUNCTION NUMBER
(ENTER 21-25: 21 = LEFT; 22 = RIGHT; 23 = TOP;
24 = LOWER LEFT; 25 = LOWER RIGHT)
NOTES:
PROGRAM ← EXITS PROGRAM MODE
USE THESE STEPS TO CHANGE WHICH BUTTONS ON
MULTI-BUTTON TRANSMITTERS WILL ACTIVATE WHICH ACCESS RELAY
OR
1. THE FACTORY DEFAULT SETTING ONLY ALLOWS THE LEFT TRANSMITTER
BUTTON TO ACTIVATE ACCESS RELAY K1
2. THE BUTTON SETTING WILL BE USED BY ALL TRANSMITTERS PROGRAMMED
3. REPEAT STEPS 2-4 TO PROGRAM OTHER BUTTONS
STEP 3: PRESS
← ENTER "1" ACTIVATES RELAY K1
ENTER "2" ACTIVATES RELAY K2 OR
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 3: PRESS
← TRANSMITTER ID #
(FROM 1-65535)
STEP 4: PRESS
← ENTER "0" TO SUSPEND XMTR
ENTER "1" TO ACTIVATE XMTR
STEP 5: PRESS ← EXITS PROGRAM MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← TRANSMITTER STATUS FUNCTION NUMBER
NOTES:
PROGRAM
OR
1. SUSPENDED TRANSMITTERS CAN NOT TRIGGER ANY ACCESS RELAY, THE
SUSPENDED INDICATOR WILL LIGHT INSTEAD
2. ACTIVATED TRANSMITTERS CAN TRIGGER ANY ACCESS RELAY
REPEAT STEPS 2-4 TO SUSPEND OR ACTIVATE ADDITIONAL TRANSMITTERS
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 3: PRESS ← REMOVE COMMAND
STEP 4: PRESS ← EXITS PROGRAM MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← MGT TRANSMITTER FUNCTION NUMBER
PROGRAM
DISPLAY: THEN: ← MGT REMOVED
STEP 4: PRESS ← ENTER "1-6" FOR MGT MEMORY LOCATION NUMBER
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 5: PRESS
← MGT TRANSMITTER ID #
(FROM 1-65535)
STEP 6: PRESS ← ENTERS MGT ID #
STEP 7: PRESS ← EXITS PROGRAM MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← MGT TRANSMITTER ADDING FUNCTION NUMBER
PROGRAM
1. IF THE TRANSMITTER ID # IS NOT LABELED ON THE TRANSMITTER, TRIGGER
THE TRANSMITTER TO VIEW THE ID # ON THE AP-5 DISPLAY. USE THE STAR KEY
TO REVIEW THE LAST RECEIVED ID # (PRESS THE DISPLAY BUTTON TO VIEW THE
LEFT THREE DIGITS OF THE ID #)
NOTES:
STEP 3: PRESS
← ENTER "2" FOR RELAY K2
ENTER "3" FOR RELAY K3 OR
2. RELAY K1 CANNOT BE PROGRAMMED AS AN OBSTACLE RELAY
3. IF RELAY K2 IS CONFIGURED FOR OBSTACLE, IT CANNOT BE CHANGED BACK
TO ACCESS UNTIL THE ALL MGT TRANSMITTERS SET TO RELAY K2 ARE REMOVED
STEP 4: PRESS ← ENTER "1-6" FOR MGT MEMORY LOCATION NUMBER
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 4: PRESS ← SUSPEND/ACTIVATE COMMAND
STEP 5: PRESS ← EXITS PROGRAM MODE
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← MGT TRANSMITTER FUNCTION NUMBER
PROGRAM
DISPLAY: THEN:
← MGT SUPERVISION CHANGED
(SUSPEND INDICATOR LIGHTS FOR
2 SECONDS WHEN MGT
HAS BEEN SUPSENDED)
TO DISABLE MGT SUPERVISION ON A SPECIFIC TRANSMITTER AND PREVENT
THE AP-5 FROM SOUNDING THE 5-SECOND MGT SUPERVISORY BEEPS
NOTES:
2. SUSPENDING AN MGT WITH A SUPERVISORY CONDITION WILL ALLOW
TRANSMITTERS TO GAIN ACCESS WITH ONE ACTIVATION INSTEAD OF TWO
1. USE THE SAME COMMAND TO ACTIVATE (UNSUSPEND) THE MGT TRANSMITTER
STEP 3: PRESS ← ENTER "1-6" FOR MGT MEMORY LOCATION NUMBER
Copyright © 2007 Linear LLC 227701 A
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 4: PRESS
← ENTER "01" TO "120" SECONDS
FOR THE RELAY ACTIVATION TIME
(TWO DIGITS REQUIRED)
STEP 5: PRESS
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← RELAY ACTIVATION TIME FUNCTION NUMBER
NOTES:
PROGRAM ← EXITS PROGRAM MODE
1. THE FACTORY DEFAULT ACTIVATION TIME FOR ACCESS RELAYS IS TWO
SECONDS
STEP 3: PRESS
← ENTER "1" FOR RELAY K1
ENTER "2" FOR RELAY K2 OR
REPEAT STEPS 2-4 IF PROGRAMMING THE OTHER RELAY
2. OBSTACLE RELAYS ALWAYS ACTIVATE FOR TWO SECONDS AND CANNOT
BE PROGRAMMED DIFFERENTLY
PROGRAM STEP 1: PRESS FOR 3 SECONDS
DISPLAY:
STEP 2: PRESS
STEP 4: PRESS
← ONE TO FIVE DIGIT
KEYPAD TRANSMITTER
ID CODE FOR THE PIN
STEP 6: PRESS
THEN:
← ENTERS PROGRAM MODE
← READY FOR PROGRAMMING
← ADDING KEYPAD FUNCTION NUMBER
NOTES:
PROGRAM ← EXITS PROGRAM MODE
TO DETERMINE THE TRANSMITTER ID CODE SENT BY A KEYPAD WHEN A
PARTICULAR PIN CODE IS ENTERED AT THE KEYPAD, OBSERVE THE AP-5 DISPLAY.
STEP 3: PRESS
← ENTER "1" TO ACTIVATE RELAY K1
ENTER "2" TO ACTIVATE RELAY K2 OR
REPEAT STEPS 2-5 FOR ADDITIONAL KEYPADS OR KEYPAD PIN CODES
STEP 5: PRESS
← ENTER "1" FOR TIMED RELAY
ENTER "0" TO TOGGLE RELAY
OR
1. ENTER A PIN AND SEND A SIGNAL FROM THE KEYPAD
2. PRESS STAR ON THE AP-5 TO VIEW THE LAST THREE DIGITS OF THE ID CODE
3. PRESS DISPLAY ON THE AP-5 TO VIEW THE FIRST THREE DIGITS OF THE ID CODE
– 12 – SYSTEM TESTING
ACTIVATE A TRANSMITTER THAT HAS BEEN
PROGRAMMED (AND IS NOT SUSPENDED)
IF MGT OBSTACLE TRANSMITTERS ARE
PROGRAMMED, RUN THE ACCESS DEVICE
AND TRIGGER EACH OBSTACLE SENSOR
IF OPEN REQUEST PUSHBUTTONS ARE
INSTALLED, PRESS EACH ONE THE ACCESS GRANTED INDICATOR
SHOULD LIGHT AND THE ACCESS
DEVICE SHOULD OPERATE
THE RADIO AND ACCESS GRANTED
INDICATORS SHOULD LIGHT AND
THE ACCESS DEVICE SHOULD OPERATE
VERIFY THAT THAT ACCESS DEVICE
STOPS OR REVERSES
