GB - 9
Fumes from engine exhaust can cause injury or death.
DO NOT run engine in an enclosed area. Always
provide good ventilation.
ALWAYS maintain unit in safe operating condition.
Damaged or worn out muffler can cause fire or
explosion.
Keep all hardware properly tightened. Check shear
bolts frequently.
STORAGE SAFETY RULES
NEVER store unit with fuel in fuel tank, inside a
building where any ignition sources are present.
Allow engine to cool completely before storing in
closed area or covering unit.
For extended storage, clean unit thoroughly. See
Engine Manual for proper storage.
ACCESSORY AND ATTACHMENT SAFETY
RULES
Use only attachments or accessories designed for your
unit.
Check attachment components frequently. If worn or
damaged, replace with manufacturer’s recommended
parts.
Tools Required:
• Pliers
• Open-End Wrenches: 3/8, 7/16, 1/2, 9/16 and/or
Adjustable Wrench
• Tire Gauge

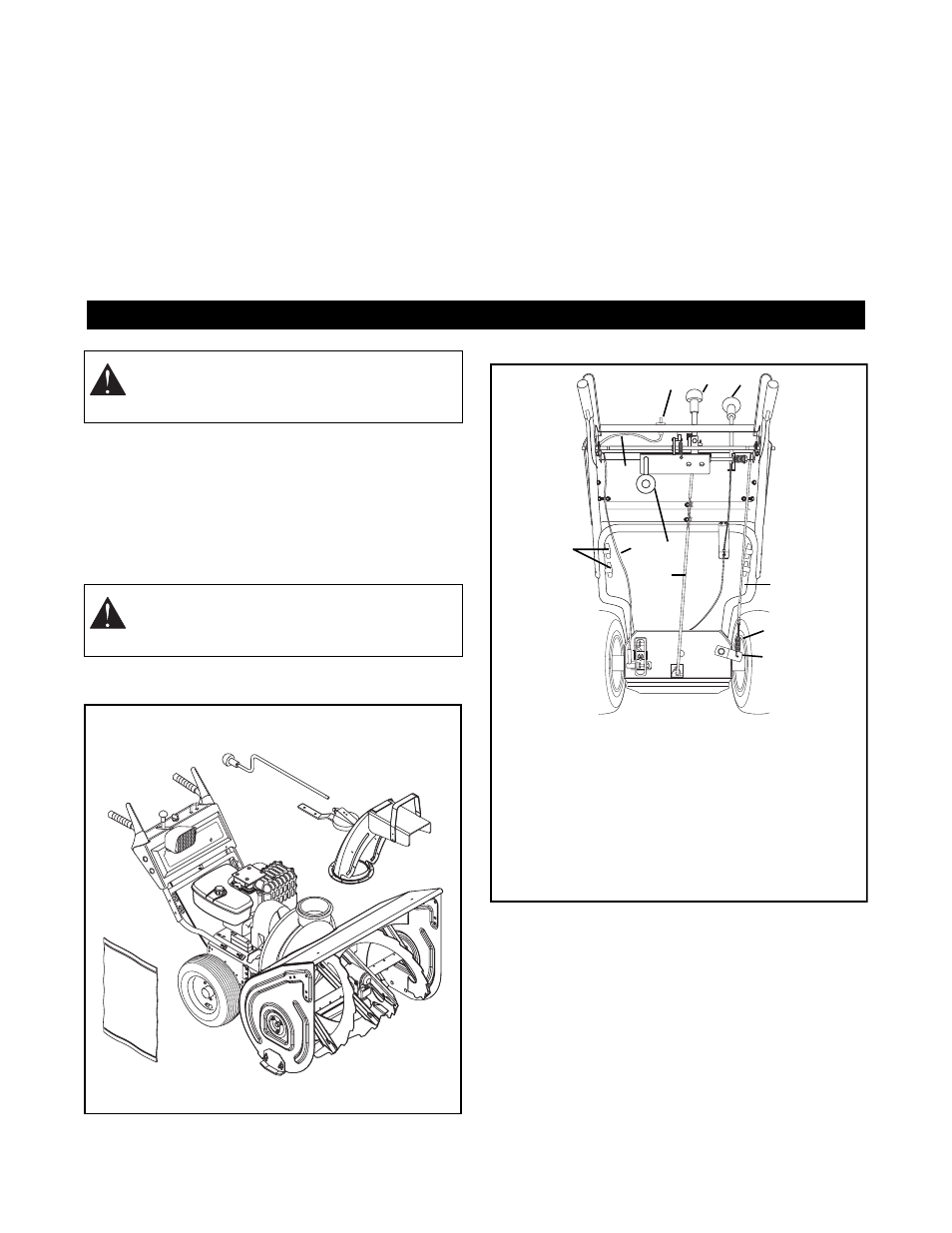

UNPACKING UNIT
PACKAGE CONTENTS
ASSEMBLY
Handlebar and Shift Rod
1. Remove lower wing knobs on handlebar
assembly (Figure 5).
2. Remove upper wing nut and bolt on shift rod.
3. Loosen upper wing knobs on handlebar.
4. Loosen lower wing nut and bolt on shift rod.
5. Make sure speed selector lever is in 2nd or 3rd
position.
6. Rotate handlebar up so wing knob holes align.
Install and tighten all wing knobs.
ASSEMBLY
WARNING: AVOID INJURY. Read and
understand Assembly, Fuel and Battery
Safety Rules before proceeding.
WARNING: Dropping or tipping over boxed
unit could result in personal injury or damage
to unit.
Lite
ra
tu
re
Pac
k
Figure 4
Sno-Thro
Unit
Discharge
Chute
Chute Crank
(119,120,333,334)
1. Chute Crank Handle
2. Speed Selector
Lever
3. Wing Knobs
4. Chute Deflector
Remote
5. Attachment Clutch
Arm
6. Clutch Cable Spring
7. Clutch Cable
8. Shift Rod
9. Traction Clutch
Cable
10. Wiring Harness
(333,334,502,503)
11. Key Switch
(333,334,502,503)
1
2
3
4
5
6
7
8
10
11
9
Figure 5
DS0162
