HDMI Matrix Switcher
8
UNDO Undo button: To resume to the status before the command just performed
Backspace button: To backspace the latest input button
7.2 Command Format of the Switching Operation
With the front control panel, the CSW-HD1616 matrix could be control directly and rapidly by pressing
the buttons under below format.
CSW-HD1616: “Input Channel” + “Switch Mode” +“Output Channel 1”+“Enter”
“Switch Mode”: Audio & Video synchronal or break away switching mode, which includes buttons “AV”,
“Audio”, “Video”.
“Input Channel”: Fill with the number of input channel to be controlled, the input channels on the rear
panel are counting from left to right, top to bottom. And if the input channel is two digits number, the
input delay time between two numbers must less than 5 seconds; otherwise the operation will be
cancelled.
“Output Channel”: Fill with the number of output channels to be control, the output channels on the rear
panel are counting from left to right, top to bottom. And if the output channel is two digits number, the
input delay time between two numbers must less than 5 seconds; otherwise the operation will be
cancelled.

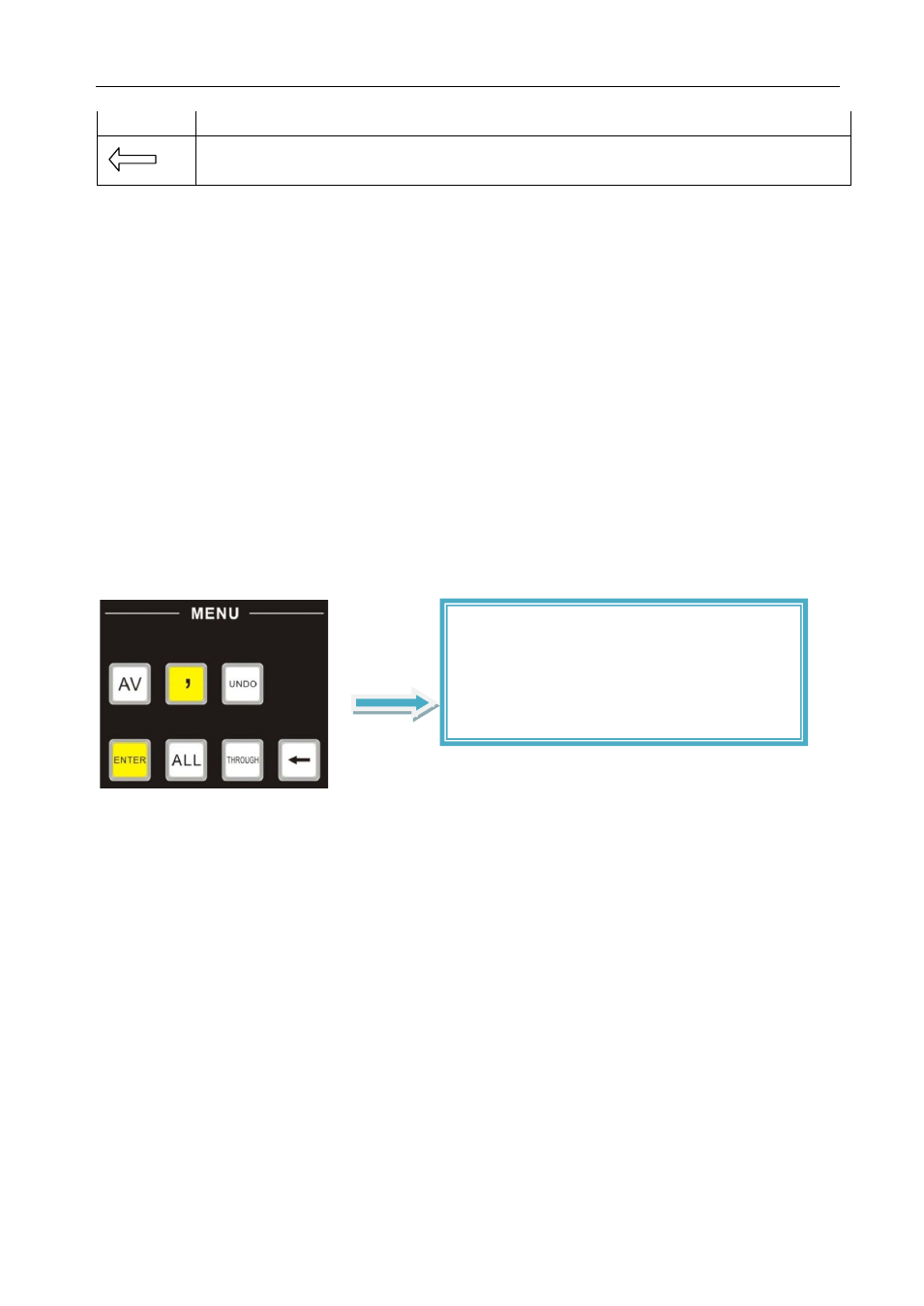

Below shows the function buttons of CSW-HD1616:
CSW-HD1616 needs to use “,” button to
separate multiple outputs, and “ENTER” button
to confirm the operation. MHD88 does not need
these for all the output channel numbers are
single digit type.
