8
Chapter 2: Printer Installation
Setting up the DLXi Printer

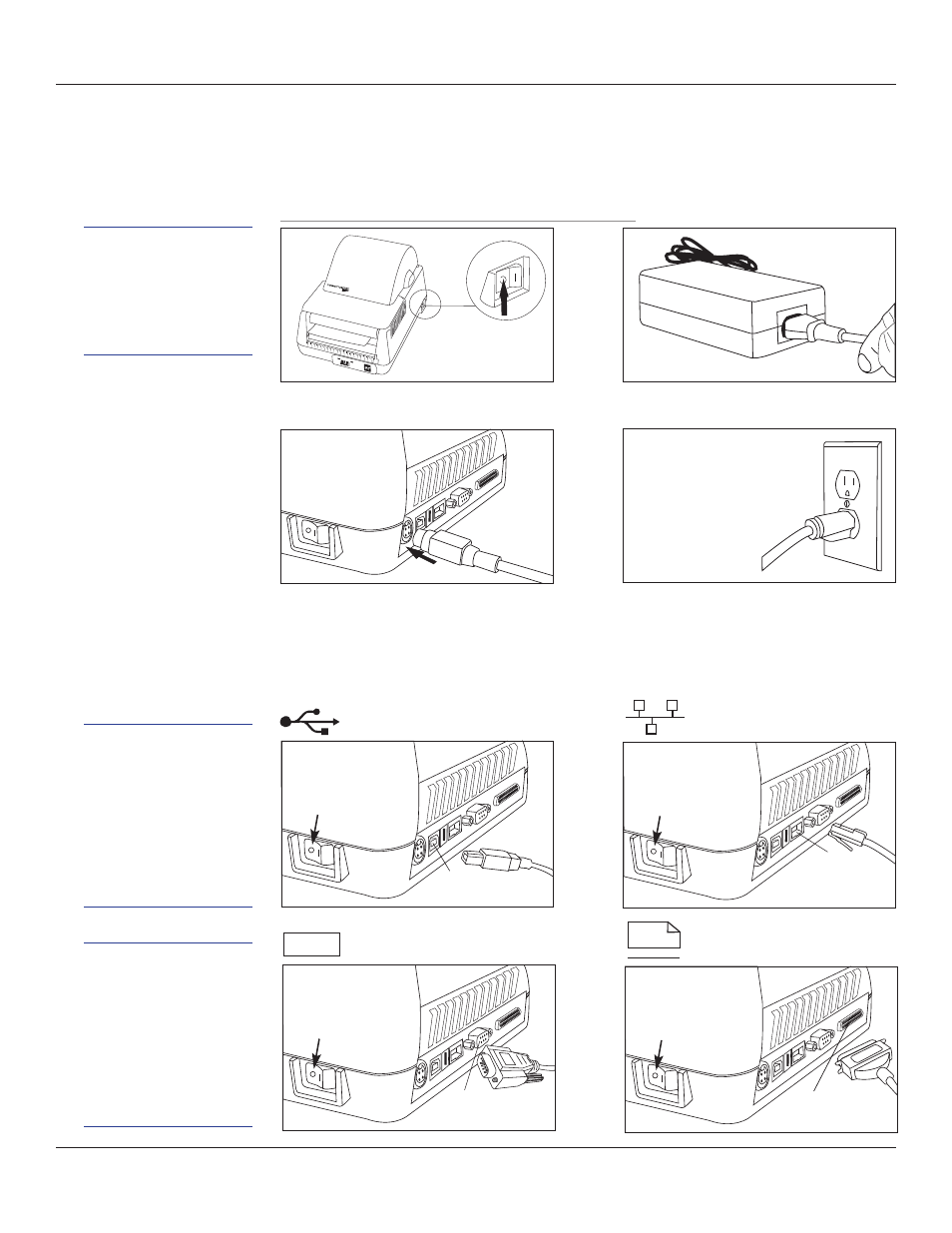

Connecting the Interface and Power Cables
5. Connect the interface cable to the rear of the printer. For Serial or Parallel cables, securely
fasten the interface connector screws or clips.
POWER OFF
2. Connect power cable to AC adapter 1. Make sure power switch is OFF
4. Plug the power cable into an AC
outlet
3. Connect the AC adapter to the power
connector on the printer
USB-B
(Device)
Power OFF
IMPORTANT! PRIOR
TO CONNECTING ANY
INTERFACE CABLE
AND POWER CABLE TO
PRINTER, MAKE SURE
PRINTER IS OFF.
Power OFF
Serial
(DB9)
Power OFF
Ethernet
Power OFF
Parallel
(Mini-Centronics)
I O I O
PARALLEL
ETHERNET
COM/SER
USB
NOTE: DLXI IS
CONFIGURED TO USE
A STANDARD NULL
MODEM CROSSOVER
SERIAL CABLE WHEN
USING THE COM/SER
PORT TO CONNECT TO
A DTE DEVICE SUCH AS
A COMPUTER.
NOTE: IF USING USB
CONNECTION, IT
IS RECOMMENDED
TO DOWNLOAD
COGNITIVETPG
ADMINISTRATOR AND
DRIVERS. SEE CHAPTER
3 BEFORE CONNECTING
TO COMPUTER
