CognitiveTPG DLXi User Manual
Page 6
6

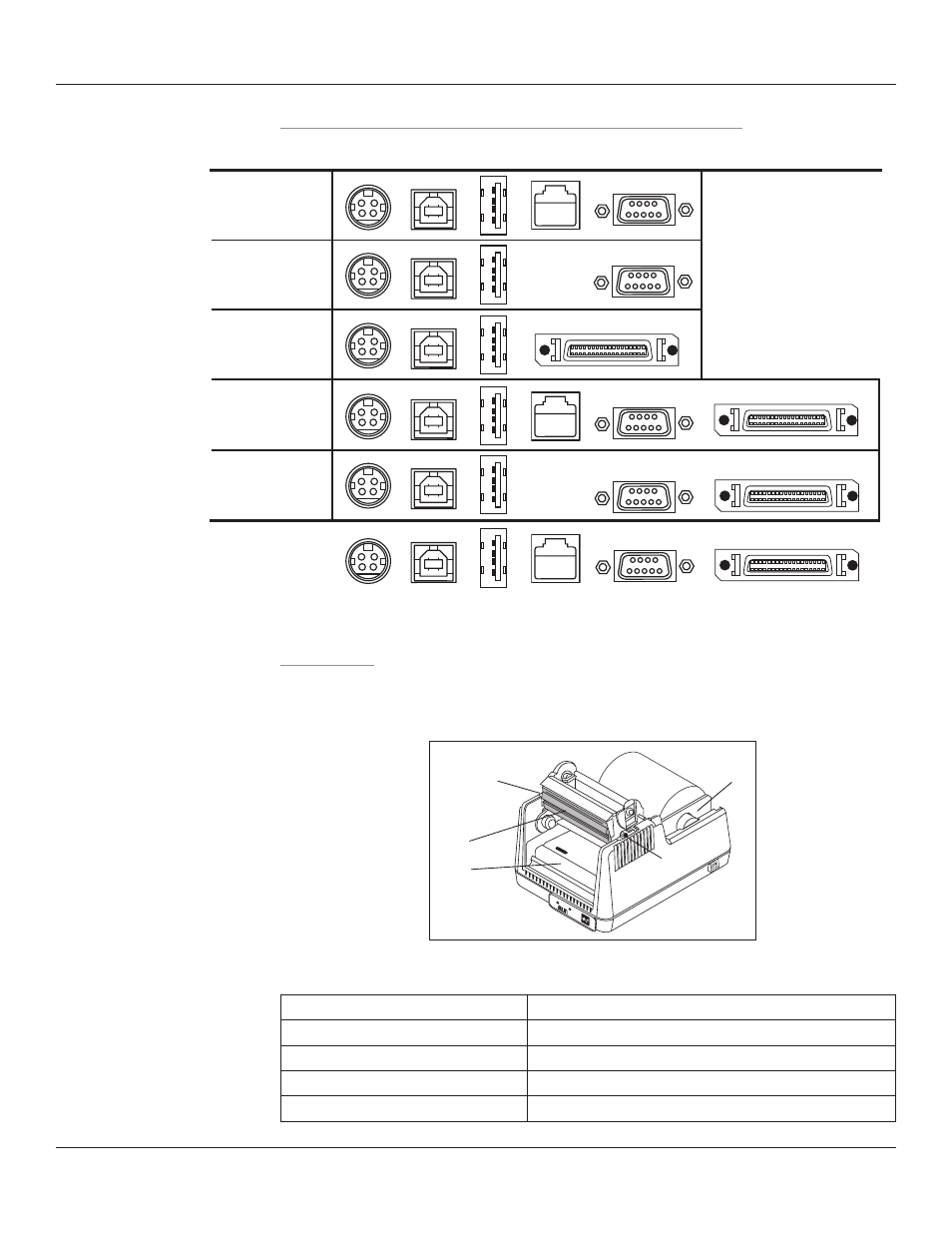

DLXi Communication Interfaces (2” and 4” Model Detail)
Inside View
Common Components for All Models (Direct Thermal and Thermal Transfer)
(TT Printer Shown)
Component (DT & TT Models)
Function
A - Printhead
Printing mechanism
B - Platen Roller
Friction feed printing surface
C - Printhead Latches
Latches for printhead mechanism
D - Media Guide & Spindle
Holds and guides label roll
2”
4”
2” USB/Ethernet/
Serial
2” USB/Serial
2” USB/Parallel
4” USB/Ethernet/
Serial/Parallel
4” USB/Serial/
Parallel
KEY
DC
USB-B USB-A ETHERNET SERIAL 9-PIN
MINI-CENTRONICS
(DTE Device)
Parallel 1284-C
A
B
C
C
D
