Ethernet Interface Setup Guide
TPG-ETHSUG Rev. A 11/07
Ethernet Default Setup
To return the printer to the default settings, put the printer in the boot mode and hold down the feed switch until you hear
the high-low-high tones (about 10 seconds).
The default settings are:
Bootp Disabled
DHCP Enabled
Default IP 192.0.0.192 (in use after 2 minute Bootp time-out)
Net mask of 0.0.0.0 (causes default mask of selected IP to be used)
LP Daemon disabled
Telnet Daemon enabled
Raw TCP/IP Port 9001 active
Whenever the printer is attempting to locate its IP address via Bootp or DHCP, or has the default IP address in use, the
IP address can be set by pinging the printer. Do this by using the arp command to set a static MAC to IP mapping on
your host. Then ping the printer by using the ping command. This will set the IP address to the address used in the ping
command and stored for future use.
The printer can also be configured by letting the Bootp time-out using the default IP address (using the default IP address)
when the printer is connected to a host on an isolated network. Setup commands can then be sent to the printer via TCP/IP
port 9001.

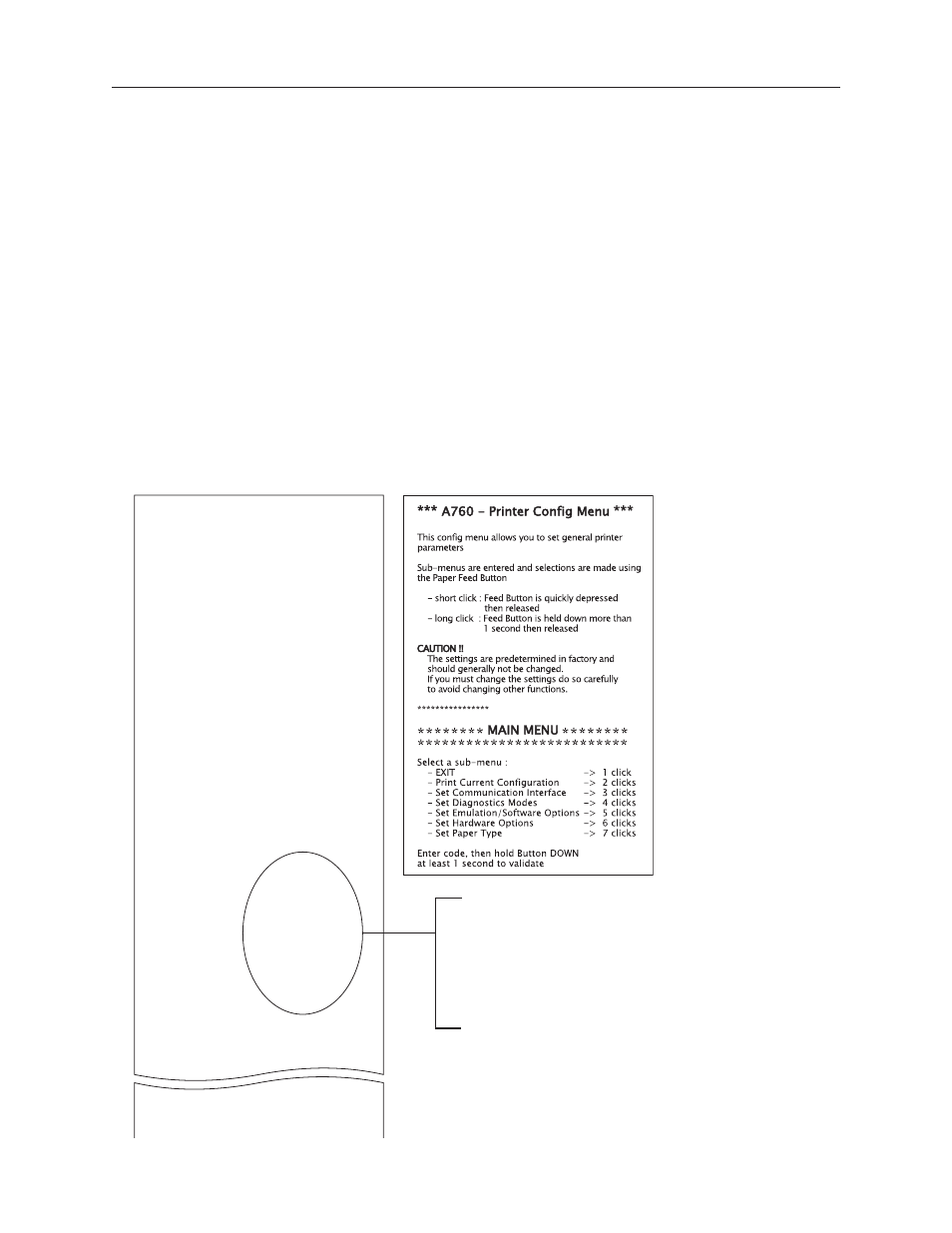

Sample diagnostic printout of an Ethernet printer
Highlighted area shows Ethernet settings.
These settings can not be changed through the configuration
menu and must be set by sending commands from the host.
See commands, beginning on the following page.
To enter Printer Config Menu :
1) Flip DIP switch #1 down
2) Reset the printer, while holding
the Paper Feed button down
Model number : A760-1125
Serial number : A012451679
Boot Firmware
Revision : V1.03
CRC : FFDE
P/N : 189-7600118A
Flash Firmware
Revision : V1.05
CRC : 7196
P/N : 189-7600117A
H/W parameters
Flash Memoriy Size : 1 Mbytes
Flash Logos/Fonts : 320 kbytes
Flash User Storage : 0 kbytes
SRAM Size : 256 kbytes
Head setting : D
Paper Type Name : Type 1, Version 0
Color Density Adj : 100%
Max Speed : 100 mm/sec
Max Power : 55 W
Alternate Reset : Disabled
Knife : Enabled
Paper Low Sensor : Disabled
MICR : Enabled
MICR Dual Pass : Disabled
MICR DC Offset : 80
Check Flip : Enabled
Comm. Interface
RX Buffer Size : 4096
Interface type : 10BaseT
Parameters
MAC Address : 00:E0:70:00:50:2B
IP Address : 10.1.2.10
Net Mask : 0.0.0.0
Gateway : 0.0.0.0
LP Daemon : Disabled
Telnet : Enabled
Raw TCPIP Port : 9001
DHCP : Enabled
Inactivity Timeout : Enabled
Keep Alive Pings : Disabled
On Error & Full : Reject Data
Resident Code Pages : 437, 850, 852, 857, 858
860, 863, 865, 866
1252, 862, 737, 874
Logo(s) Defined : YES
User Char(s) defined : NO
Journal Unused : 64 kbytes
*** A760 – Diagnostics Form ***
