Codelocks CL525 Mortice Lock with Double Cylinder - Manual (Page 2)

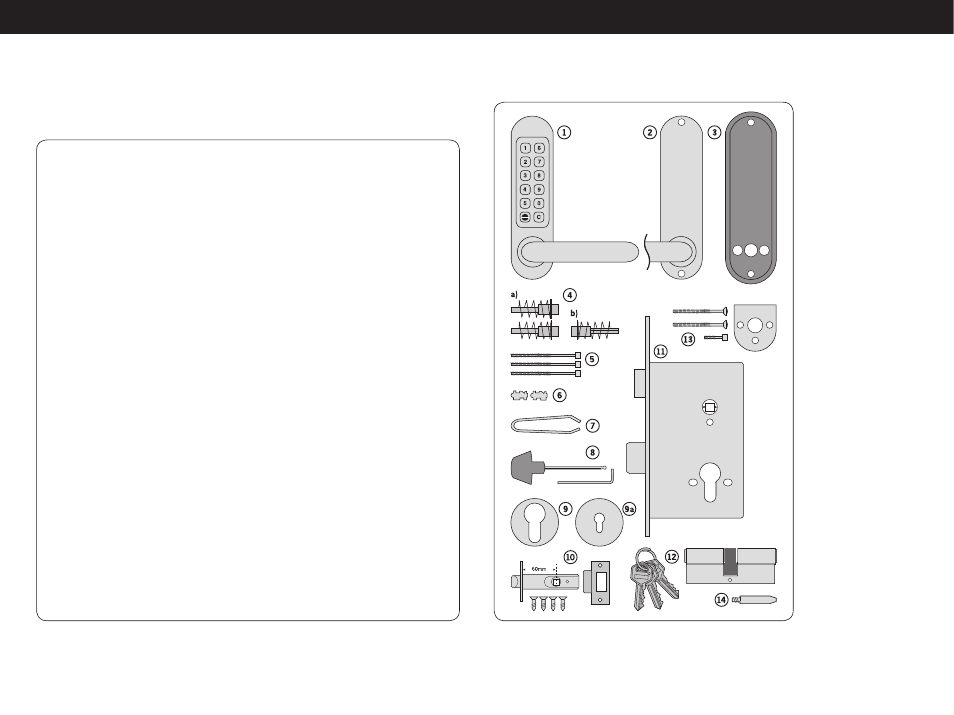

1 Front plate and handle
2 Back plate and handle
3 Neoprene seals x2
4 Spindles a) RED & BLUE tipped spindles
b) Butterfly spindle
5 Fixing bolts x2 (1x spare)
6 Spare code tumblers x2
7 Tweezers for code changing
8 Allen keys x2
9 Euro profile cylinder escutcheons
9a Keyhole escutcheons
10 Mortice latch, strike & 4 screws
11 2 bolt mortice lock and strike
12 Double Europrofile cylinder & 3 keys
13 Adaptor kit for mortice locks
with horizontal fixings
14 Latch support post
■ Installation template
■ Code change instructions
■ Code card
■ Power drill
■ Drill bit 30mm
25mm
20mm
16mm
12mm
■ Phillips screwdriver
■ Chisel 22mm
■ Chisel 25mm
■ Hammer/mallet
■ Stanley knife
■ Adhesive tape, pencil, bradawl
tape measure
CHECK THAT THE CONTENTS OF YOUR BOX ARE CORRECT
ACCORDING TO THE MODEL
Model 500/505 Model 510/515 Model 520/525
• • •
• • •
• • •
• • •
• • •
• • •
• • •
• • •
• • •
1 pair – 1 pair
1 pair – –
– • –
– – •
– – •
• – –
– • –
• • •
• • •
• • •
• • •
– – •
– • –
– – •
– – •
• • •
• • •
– – •
– • •
– • •
– • •
– • •
TOOLS REQUIRED
On models 505, 515 and
525 note the slotted turn
within the bottom left hand
button. If the slot is in the
vertical position it signifies
that a code is needed each
time to operate the lever
handle. Enter the code from
the code card and the lever
handle should turn fully
to 80 degrees, and then
spring back to horizontal.
Enter the code again, turn
the slot to the horizontal
position and the lock will be
in code-free access mode.
Return the slot to the
vertical position and after
one further free turn of the
handle the lock will be in
code control mode again.
Turn the front plate over
and note that the red tipped
tumblers inside correspond
to the code. The code
may be entered in any
sequence, i.e. 1370 may
be entered as 3710 or any
other sequence of those
numbers. There are a total
of 2,047 codes available
on the 500, 510 and 520
locks, any of which may be
entered in any order. There
are 1,023 codes available
on the 505, 515 and 525.
If you intend to change the
code you should do it, if
convenient, before installing
the lock – see the Code
Change Instructions in the
separate sheet.
BOX CONTENTS
CHECK OPERATION
OF THE CODED
FRONT PLATE
