XNET Network Weatherproof Camera Installation Guide

6/20

2.3 Hardware

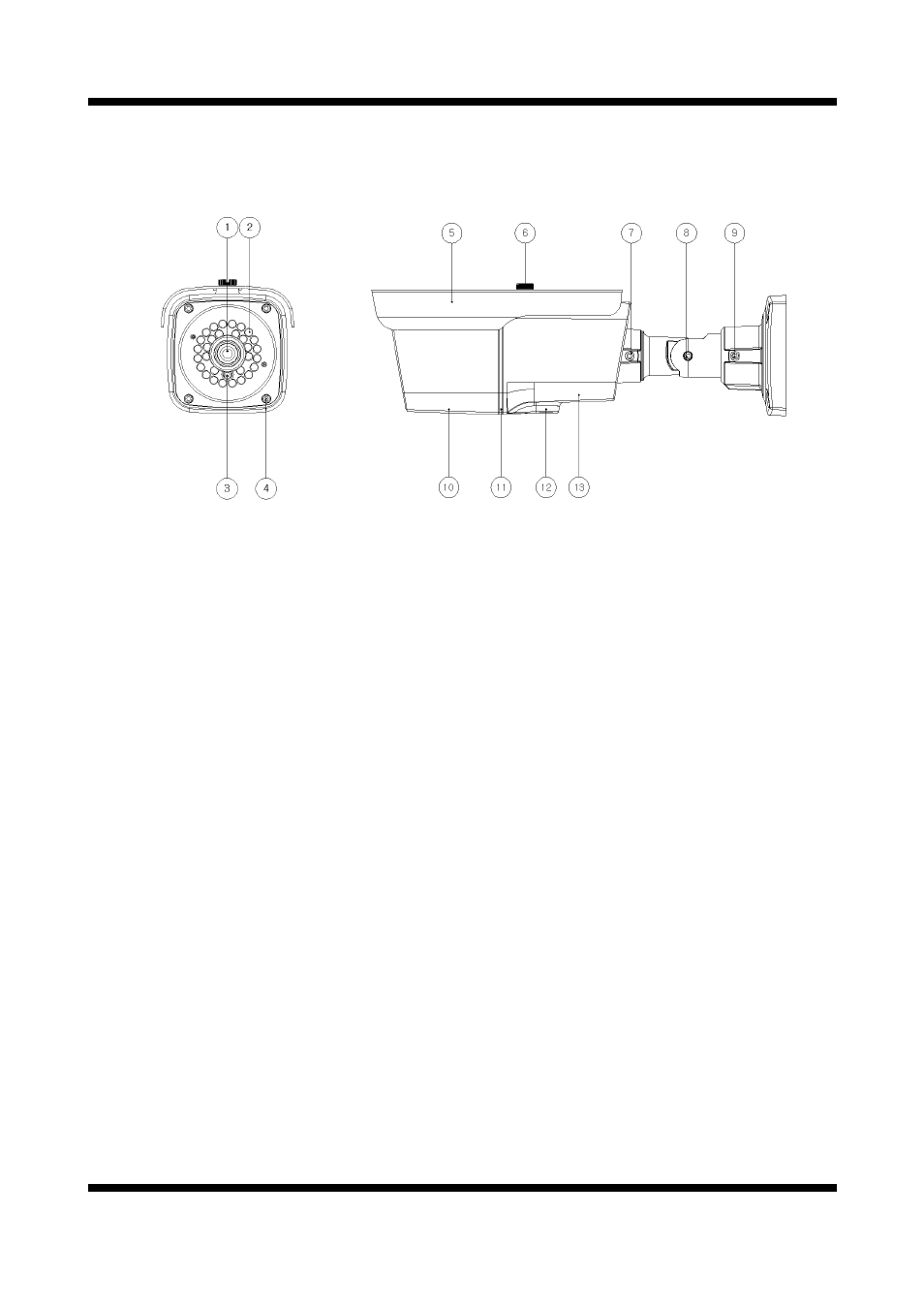

2.3.1 Hardware Designation

Complete System

①

MegaPixel Fixed Lens

②

IR Illuminator : automatically illuminates depending on the light intensity

③

CDS Sensor

④

Screws (front-4EA & rear-4EA) : Sets the front and back cap

⑤

Sunsheild

⑥

Sunsheild fixing Screw : fixes the Sunsheild of the camera

⑦

Rotate adjusting Bolt : fixes the rotate angle of the camera

⑧

Tilt adjusting Screw : fixes the tilt angle of the camera

⑨

Pan adjusting Screw : fixes the pan angle of the camera

⑩

FRONT BODY

⑪

GASKET(Micro SD Card Slot, Video Out, Factory Reset Button)

⑫

CAMERA MODULE – BOTTOM

⑬

REAR-BODY
