AO-70135 3 of 11

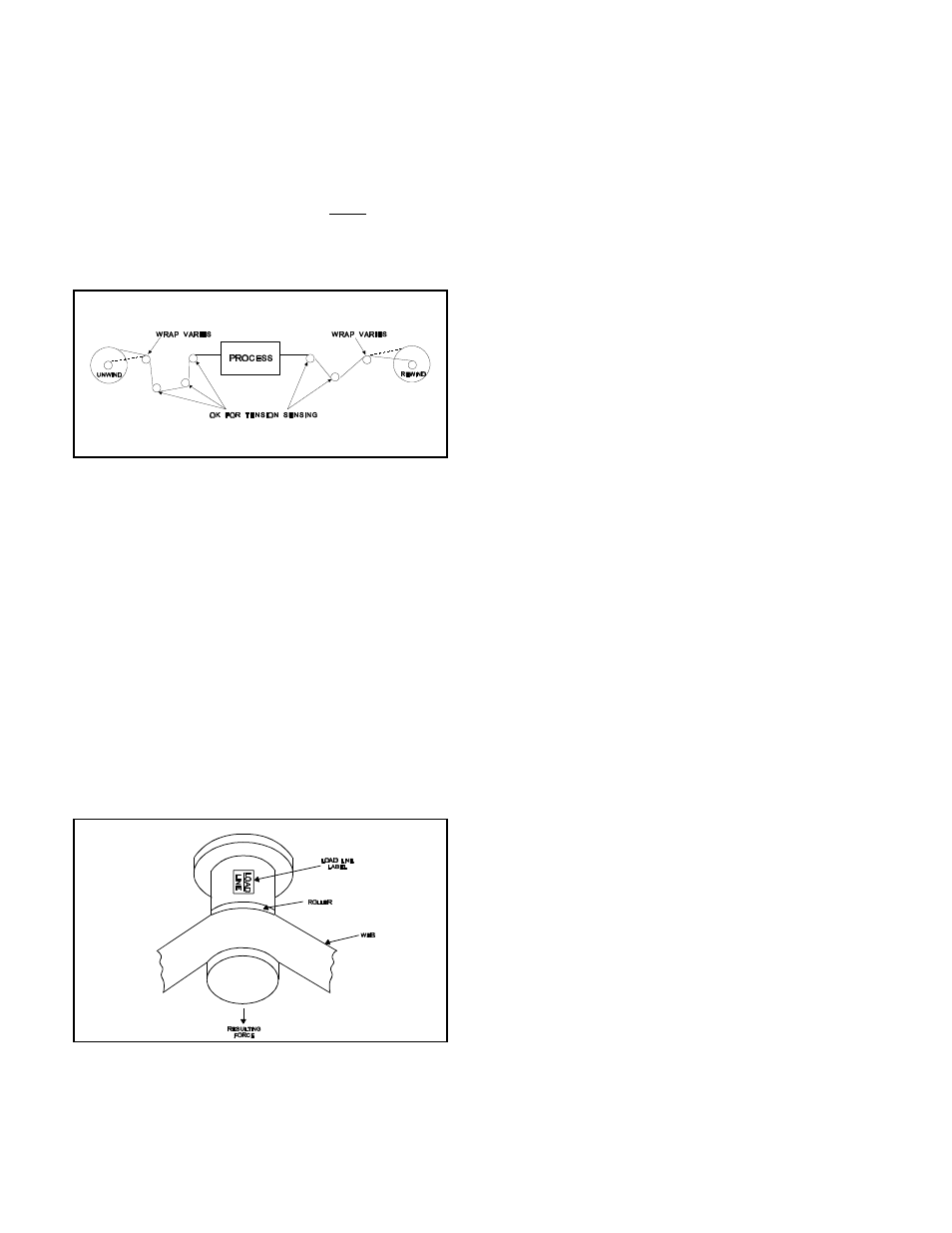

Figure 2
Figure 3
2.0 INSTALLATION
2.1 SELECTION OF TRANSDUCER
MOUNTING LOCATION
When selecting a transducer mounting location, keep in
mind that the tension sensing roll must NOT be mounted
where the web wrap can vary. Any change in wrap
angle will be sensed by the transducers as a change in
tension, and indicated as such on the indicator.
In some cases it may be impossible to find a location for
the transducer when the wrap angle does not vary. The
change in indicated tension which will result can be
calculated, and if small may not be significant.
2.2 GENERAL INSTALLATION
INFORMATION
Orient the base of the transducer so that the force
applied by the web will be in line with the load line label
and that the resulting force caused by the web will be
opposite the load line as shown in Figure 3
