2

English

8-Port Rackmount PoE Midspan • User Manual

English

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

8-port

Rackmount PoE Midspan, Model 502931. For a full list of specifications, refer

to the datasheet available at www.intellinet-network.com.

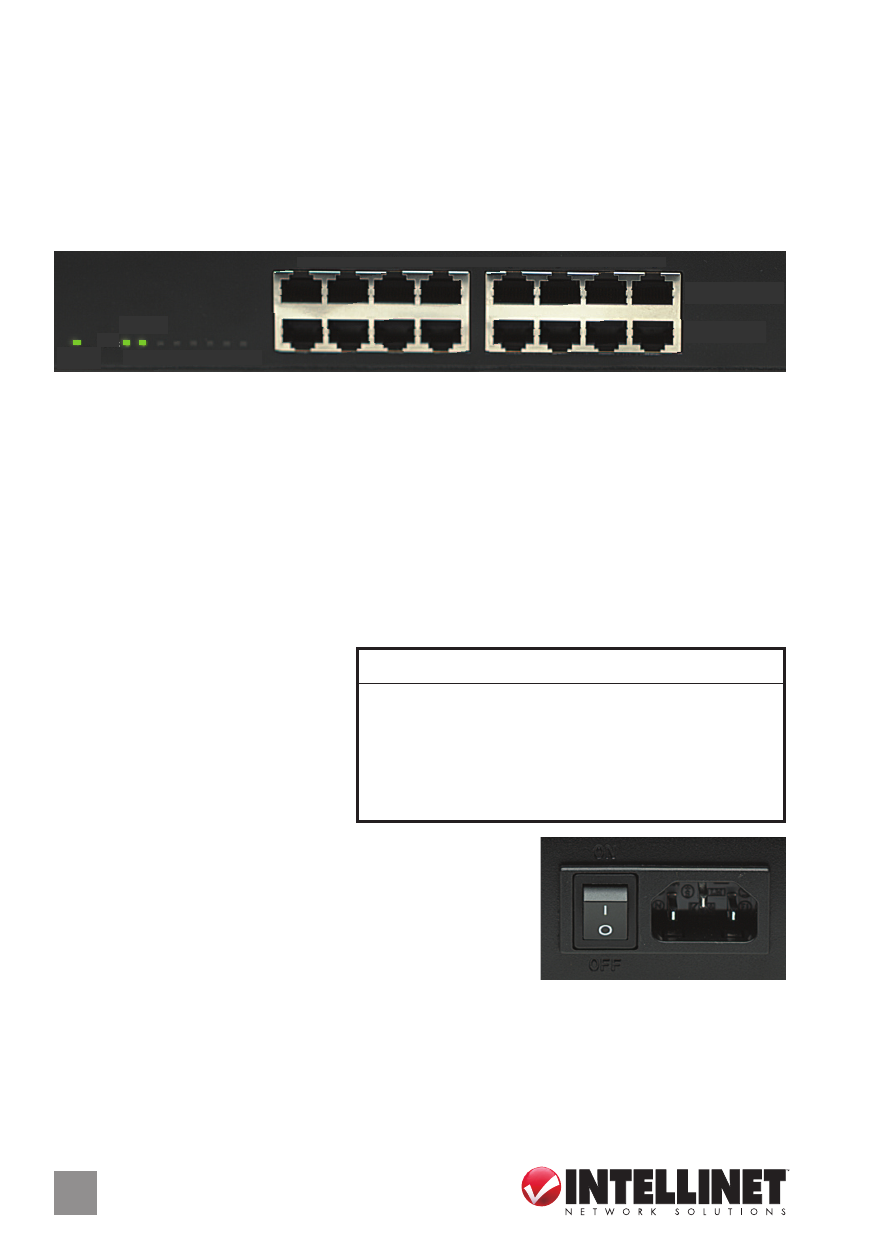

ConneCtions & indiCators

Ports

The lower row of RJ45 ports — Data (In) — on the front panel delivers data

to the Midspan from existing network devices. The upper row of RJ45 ports

— Power + Data (Out) — delivers data while also powering added devices

(up to 15.4 Watts per port). Use standard Cat5 or better Ethernet cables for

connections to PoE-supported IP cameras, wireless access points, other

switches, etc. NOTE: Powered devices should also comply with IEEE 802.3af.
Leds

If an LED doesn’t light to

indicate a link or activity,

check the corresponding

device for proper setup and

operation.
Power

On the rear panel, plug in the included power

cord and connect the switch to an AC outlet.

Toggle the Power switch to On and confirm that

the Power LED is lit.

raCk Mounting

Simply align the two brackets with the holes on each side panel and secure

them with the included screws. Use the remaining screws to mount the

device in a rack.

Led

status

operation

POWER On

Power on

Off

Check the AC connection; power on

PD Link On

Port is linked and providing 48 V to a

(1-8)

powered device

Off

No link is established

OFF

ON

RJ45 10/100 Mbps ports

1 2 3 4 5 6 7 8

POWER

1 2 3 4 5 6 7 8

PD LINK

POWER + DATA (OUT)

DATA (IN)
