Thank you for purchasing the Intellinet Network Solutions ™ Wireless 300N
Outdoor PoE Access Point, Model 524711.
This guide presents the basic steps to set up and operate this device. For
detailed instructions and specifications, refer to the user manual on the CD
enclosed with this product or at intellinet-network.com.
Installation

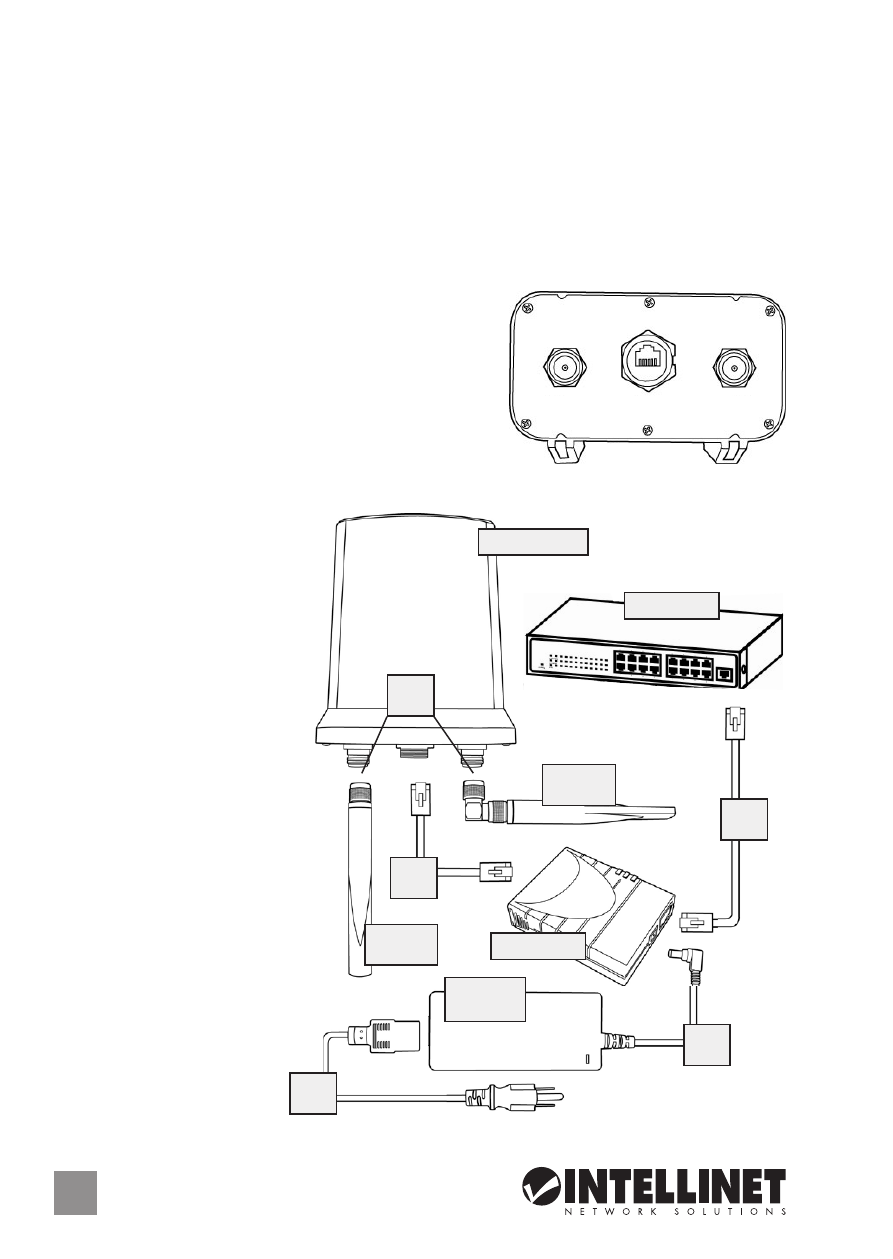

1. Attach the antennas to the access point.
NOTE: Antenna 1 is the primary antenna,
used while transmitting/receiving in
11b/g/n (single antenna) mode.
2. Using the included Ethernet cable,
connect the RJ45 port of the access point to the Power/Data Out port on
the DC injector.
3. Connect the LAN port
on the DC injector to
your network switch
or hub.
4. Connect the power
adapter to the DC
injector.
5. Using the included
power cord, connect
the power adapter
to an available AC
outlet. NOTE: Only use
the power adapter
included with this
access point — not
one from any other
device. (See Step 6
for an alternative
configuration.)
