6

Rail mounting hardware

9. Refer to the Filter Probe sc operating instructions to determine the installation position

for the two top brackets and loosely fit the brackets to the mounting pipe. Refer to

Figure 3 on page 3

for installation dimensions.

10. Slide the two top brackets over the mounting lug. Align the brackets and tighten

the screws.

11. Undo one of the screws on the top bracket and fit a strap for a spring locking pin

(

Figure 13 on page 11

). Tighten the screw.

12. Adjust the tank bracket and tighten all screws. Refer to

Figure 3 on page 3

for

installation dimensions.

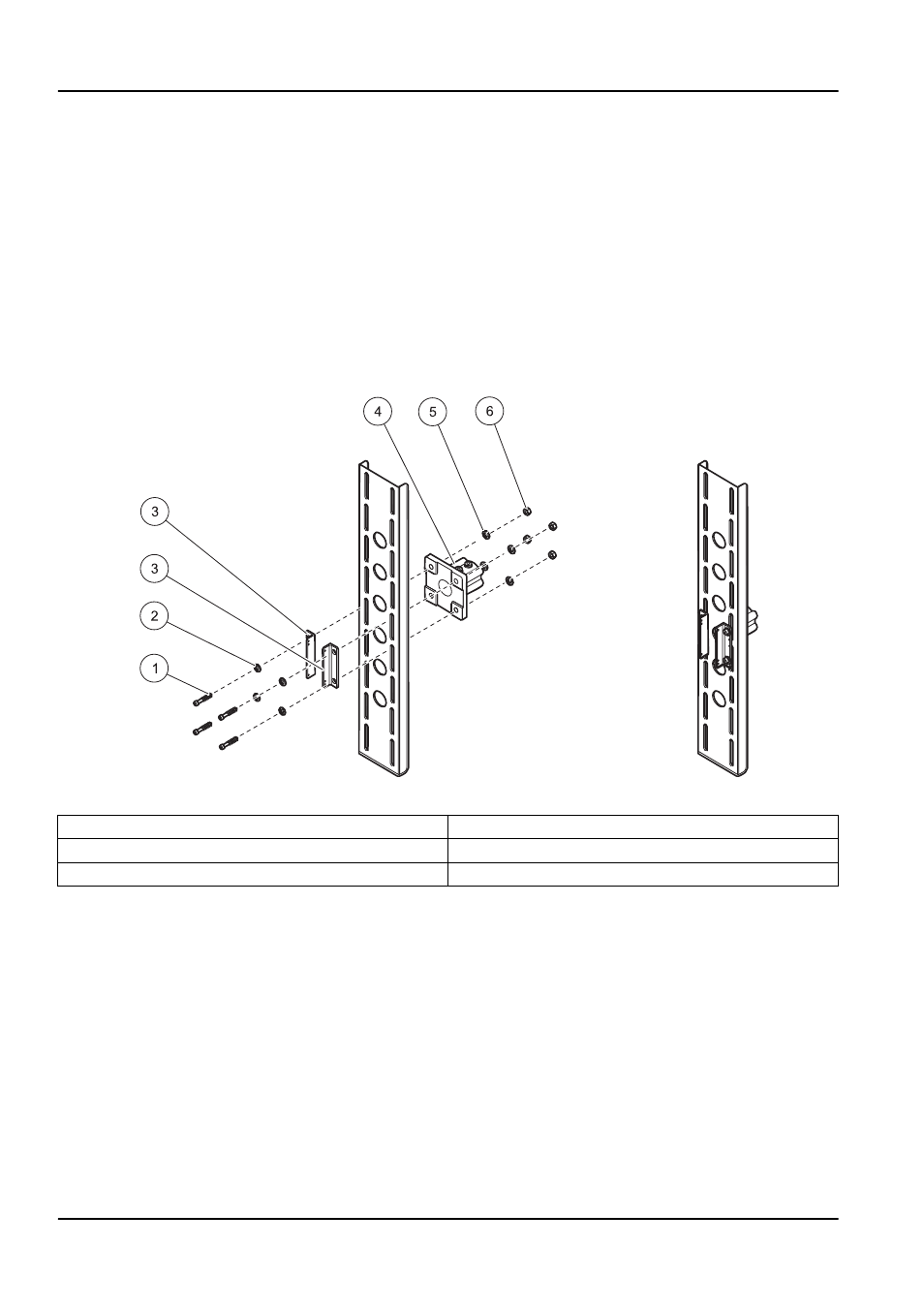

Figure 6 Fitting the base and angles

1

Socket head cap screw M8 x 40 mm

4

Base ATS010

2

Washer for M10

5

Spring washer for M8

3

Angle

6

Nut, M8
