Rail mounting hardware
Mounting the probe
1. Pull out the spring locking pin on the fastening lug. Remove the mounting pipe with
the brackets from the fastening lug.
2. Fit the probe to the mounting pipe and push the mounting pipe with the brackets back
onto the fastening lug.
3. Secure the tubing for the probe to the mounting pipe using cable ties.
4. Secure the mounting pipe on the fastening lug against floating upwards using the
spring locking pin.
5. Continue as described in the operating instructions for the Filter Probe and
the analyzer.

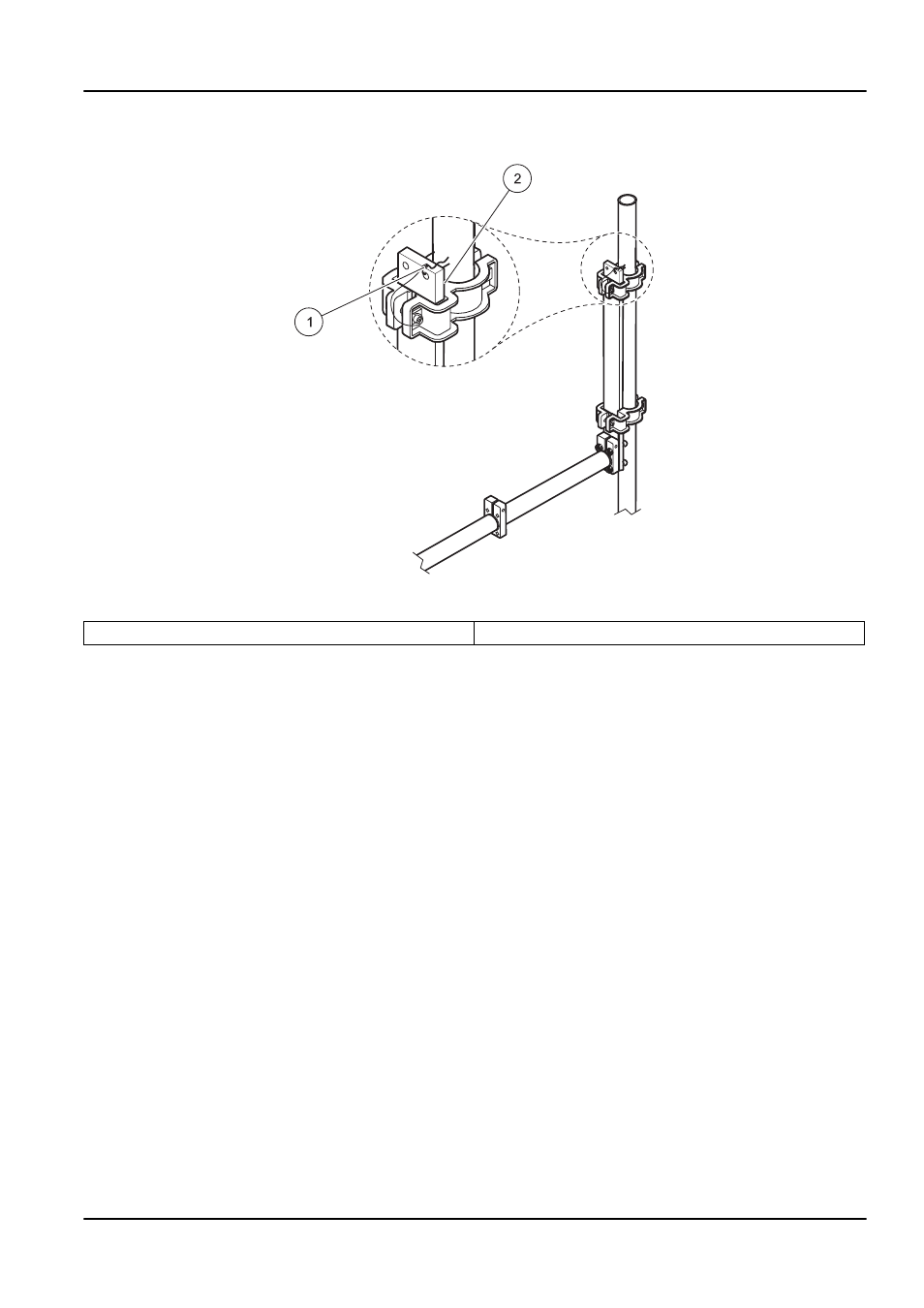

Figure 13 Securing the mounting pipe
1 Spring locking pin 2 Fastening lug
