DOC273.52.00087.Jul05 Instruction Sheet
Rail mounting hardware
Introduction
These installation instructions describe the installation of rail mounting hardware kit
LZX414.00.60000. Items supplied with the rail mounting hardware are shown in
Figure 1 on
page 1 . Figure 2 on page 2 shows the dimensions for the mounting hardware components.

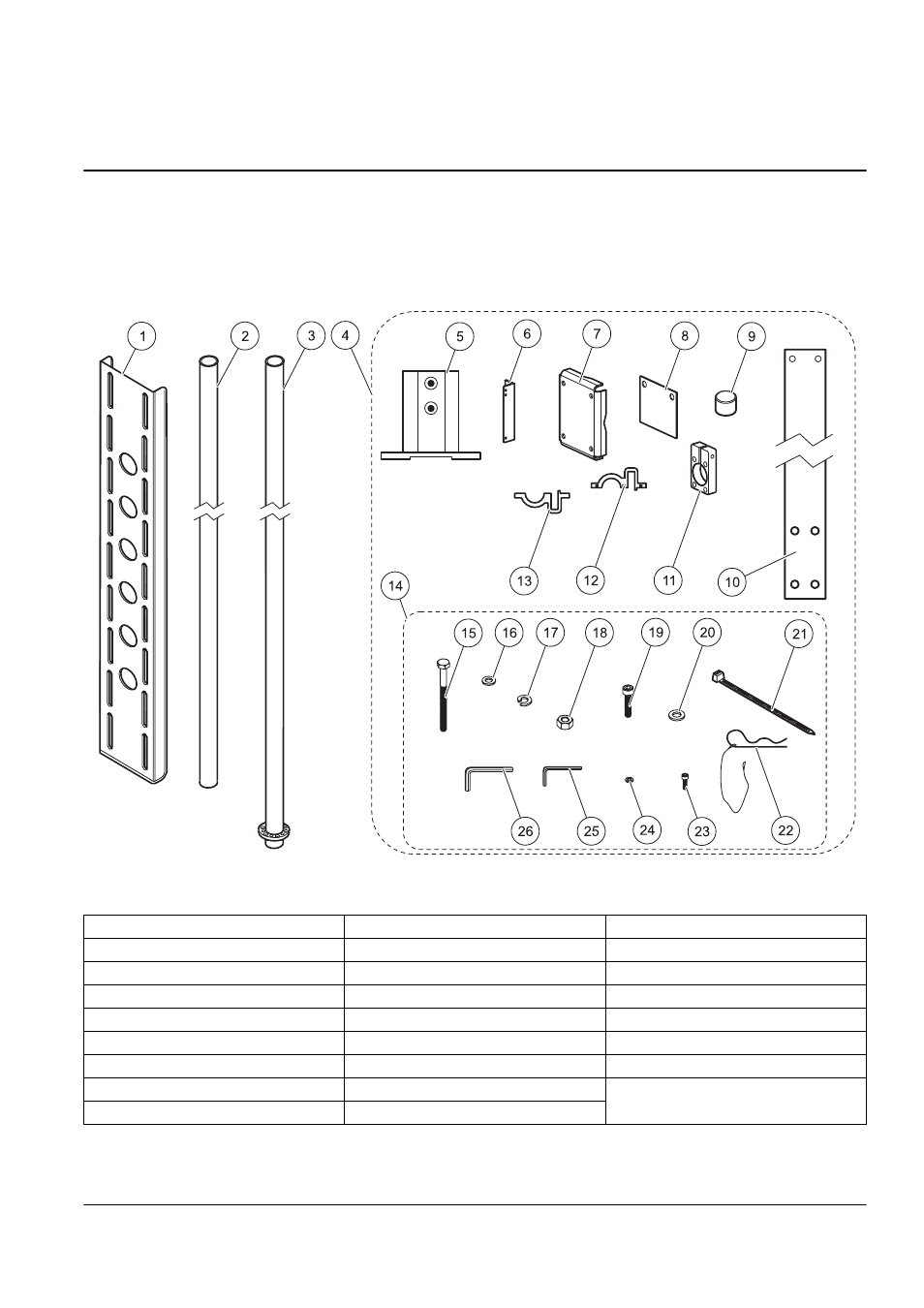

Figure 1 Items supplied with the rail mounting
1 Mounting rail HPS063 10 Fastening lug 19 Cap screw M8 x 40 mm (11x)
2 Supporting pipe (1 m) HRO307 11 Clamp (3x) 20 Washer for M10 (4x)
3 Mounting pipe (2 m) BRO075 12 Bracket, threaded AHH032 (3x) 21 Cable tie (3x)
4 Hardware set, LZY363 13 Bracket, unthreaded AHH033 (3x) 22 Spring locking pin (2x)
5 Base ATS010 14 Set of small parts LZY434 23 Cap screw M5 x 20 mm (10x)
6 Angle (2x) 15 Hex screw M8 x 120 mm (8x) 24 Spring washer for M5 (9x)
7 Clamping plate (2x) 16 Washer for M8 (12x) 25 Hex wrench 4 mm
8 Shim (3x) 17 Spring washer for M8 (19x) 26 Hex wrench 6 mm
9 Pipe cap (2x) 18 Nut M8 (16x), from LZY220
