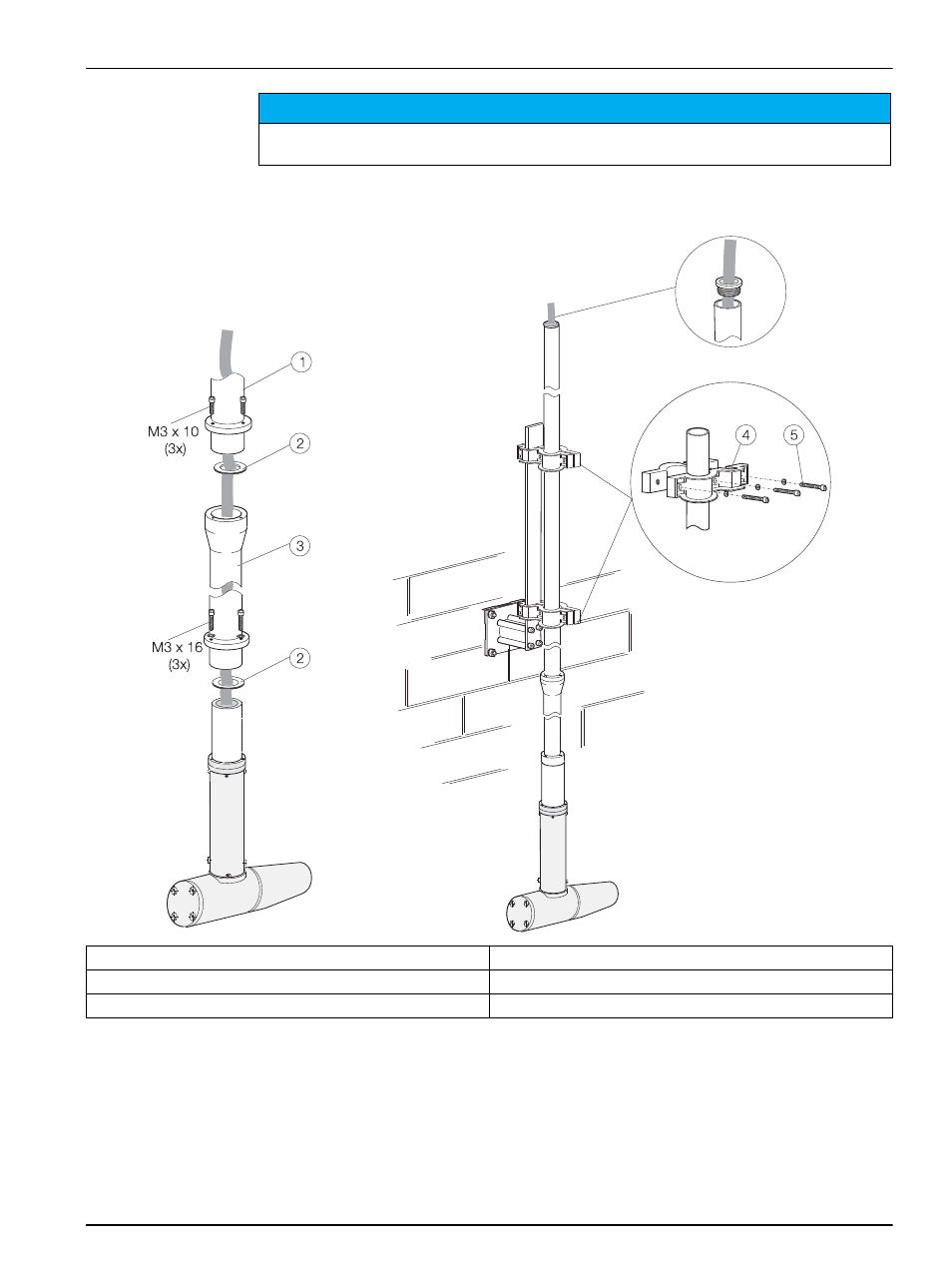

Figure 8 Installation with extension pipe.
1 Mounting pipe, 2 m (78.7 in) 4 Retaining clamp
2 EPDM flat seal 5 Cylinder-head screw, M5 Ч 20 (3Ч)
3 Extension pipe
N O T I C E
When carrying out an installation variant that deviates from this example, make sure that the
connection tube from the sampling probe is guided vertically upward for at least 0.5 m (19.6 in).
