22

Installation

3.7 Connecting air tubing

Note: Pay attention to the markings on the tubing.

1. Connect the white air tubing to the analysis instrument (see

operating instructions for the analysis instrument).

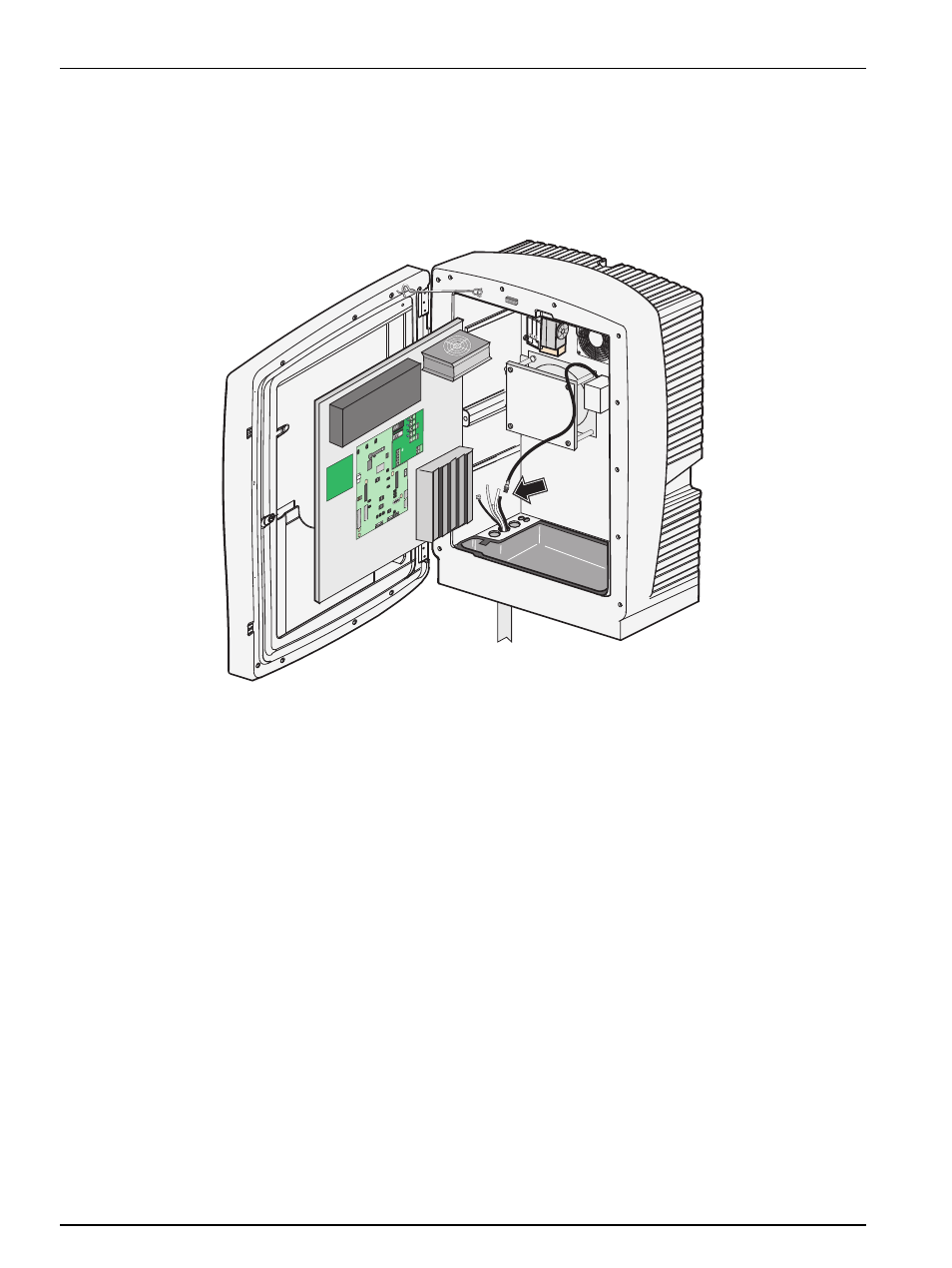

Figure 11 Connecting air tubing
