Connect the universal power adapter to the meter, Figure 2, Figure 3 – Hach-Lange SENSION+ MM378 User Manual

Page 8

background image

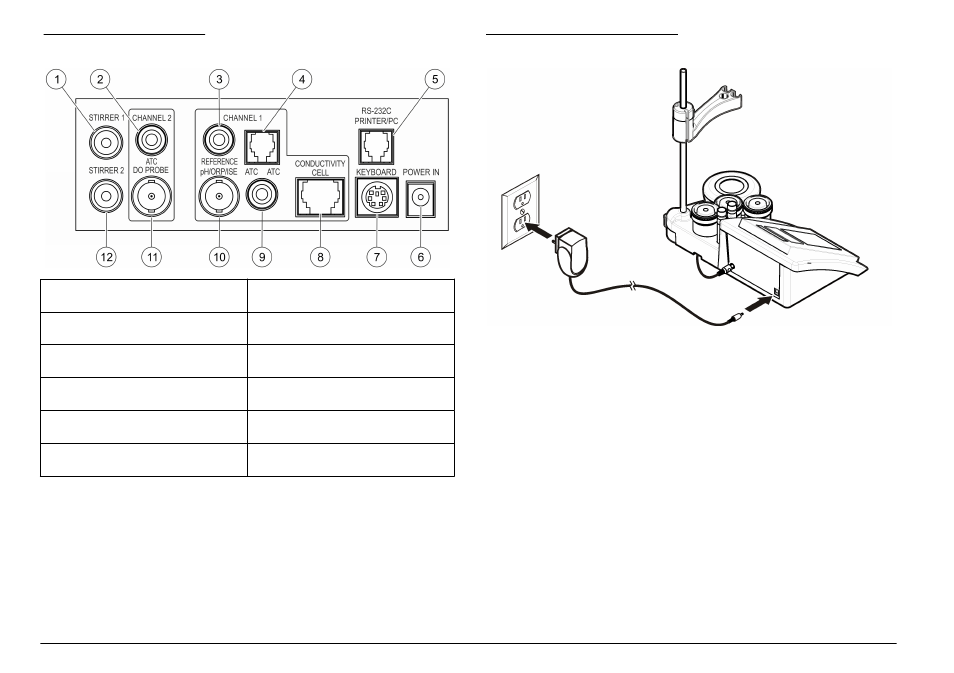

Figure 2 Connector panel

1 Magnetic stirrer 1 connector,

Channel 1

7 PC keyboard, mini DIN connector

2 Temperature probe connector,

Channel 2

8 Conductivity probe connector,

Channel 1

3 Reference electrode (separated

electrodes) connector, Channel 1

9 Temperature probe connector,

Channel 1

4 Separated temperature probe

connector, Channel 1

10 BNC combined (or indicator) pH

probe connector, Channel 1

5 RS-232 for printer or PC connector

11 BNC DO probe connector,

Channel 2

6 Power supply

12 Magnetic stirrer 2 connector,

Channel 2

Figure 3 AC power connection

Note: Position the equipment so it is not difficult to disconnect power to the
equipment.

8 English
