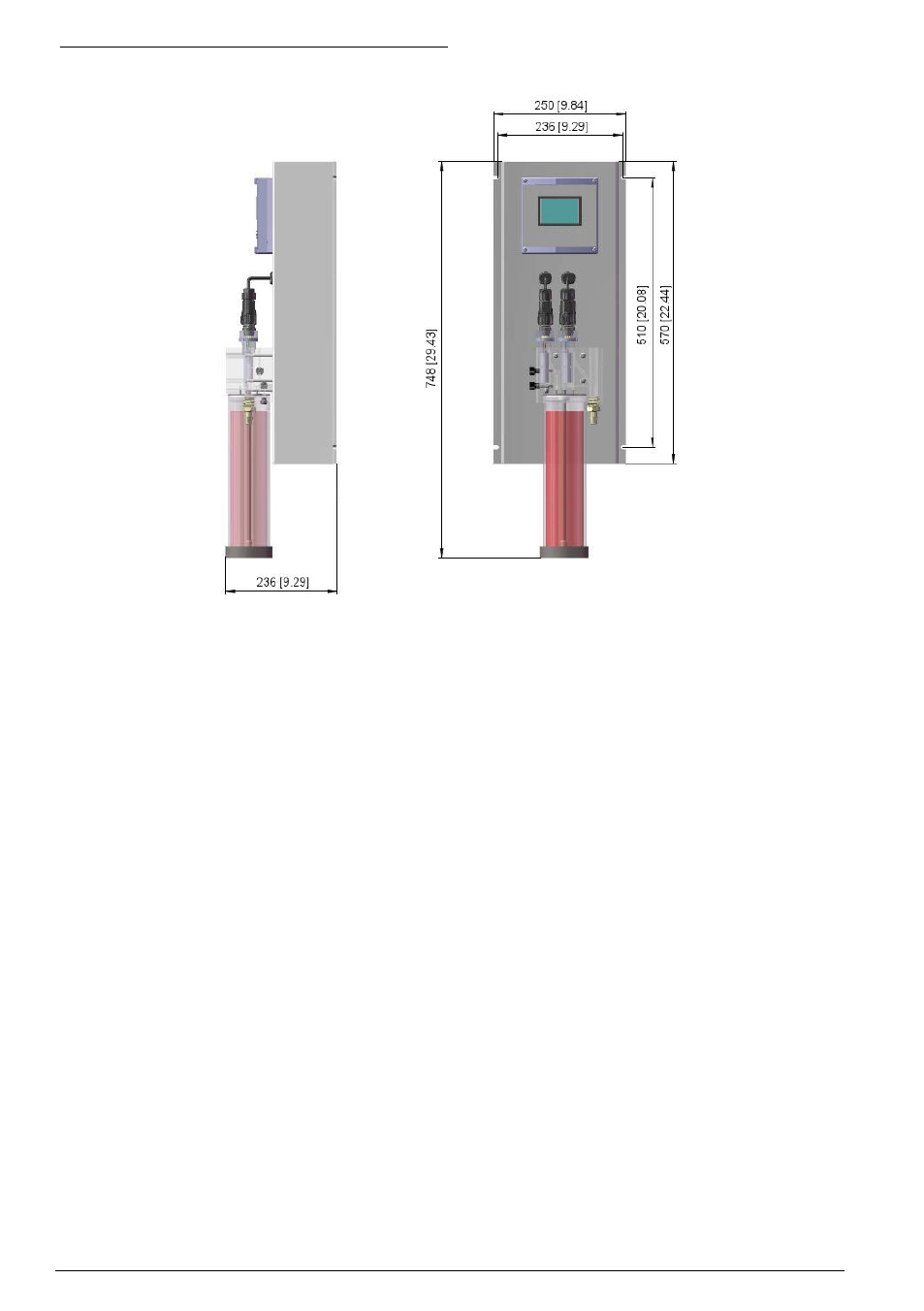

Figure 2 Analyzer dimensions in mm [inches]

1. Mount the analyzer using 4 M6 screws to fix it securely in place.
2. The sensor for channel one is placed before the resin (on the left side as viewed from the front),

and for channel two after the resin (on the right side as viewed from the front).

8 English
