33
Installation
3.6.2 Ethernet connector (table version)
The Harting RJ Industrial® IP 67 Push Pull connector can be locked and unlocked using one
hand and minimal force. Only a few steps are necessary in order to quickly and reliably attach
an Industrial Ethernet cable to the Harting RJ Industrial® connector. Only a Harting cable should
be used.

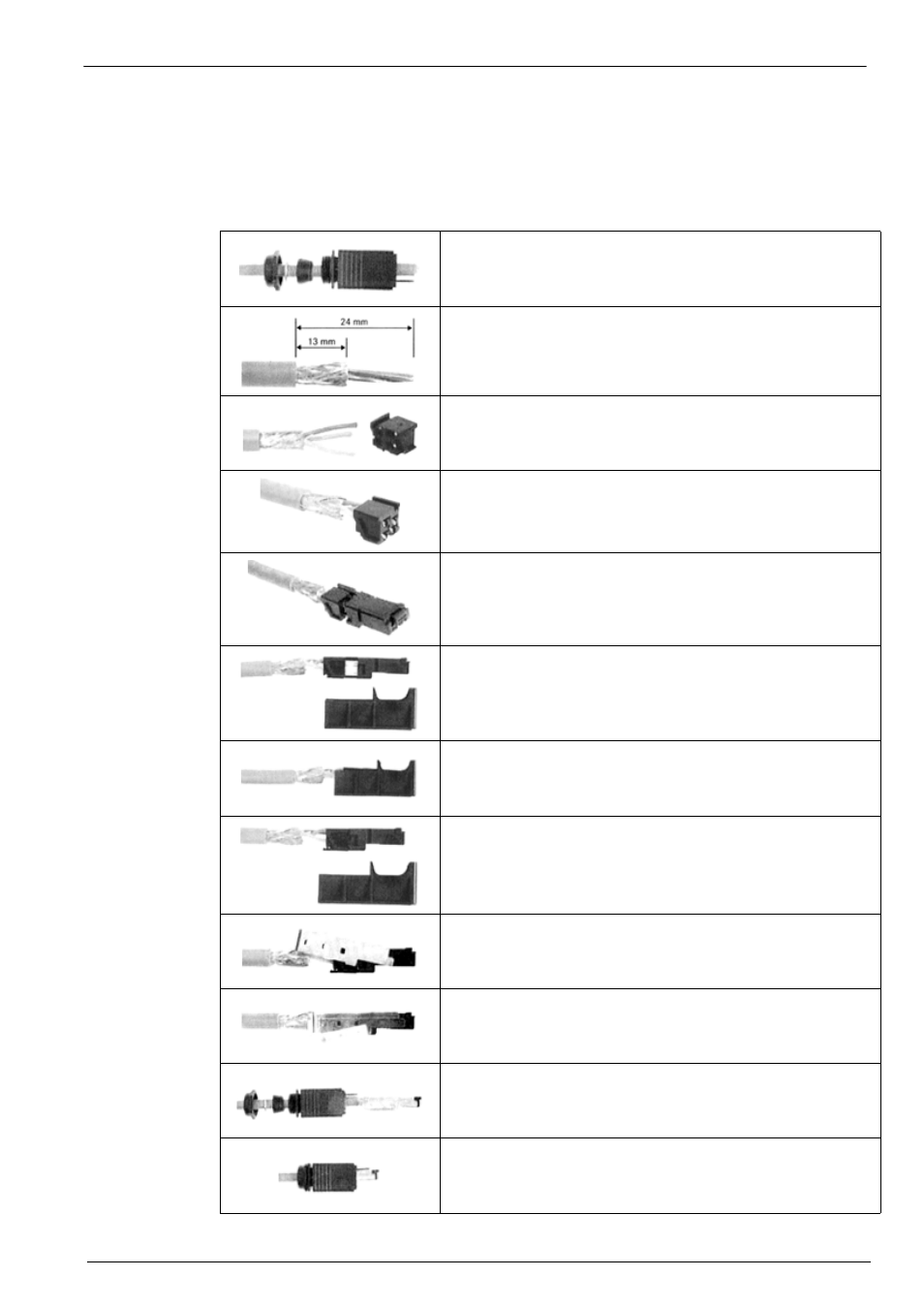

1. Push the cable gland and housing over the cable
2. Strip the skin on 24 mm and the shielding screen on 13
mm
3. Prepare the individual wires for insertion into the splicing
element, according to the PROFInet® color code (see
PROFInet® color code on page 34 )
4. Insert the wires into the splicing element up to the end of
the wire chambers
5. Push the splicing element onto the RJ 45 data module
and engage
6. Put the splicing element and the RJ 45 data module into
the IDC assembly tool
7. Press data module and element together with the aid of
the 1 DC assembly tool
8. Remove the terminated data module from the assembly
tool
9. Put on the upper shielding shell and press it over the
cable screen
10. Put on lower shielding shell and lock it with the upper
shell with an audible "click"
11. Push housing over the installed data module and lock it
with an audible "click"
12. Tighten cable gland
