Interface and navigation
31
4.3 Display
Figure 10 identifies all of the possible icons and symbols that may be
seen in the si792 transmitter display.

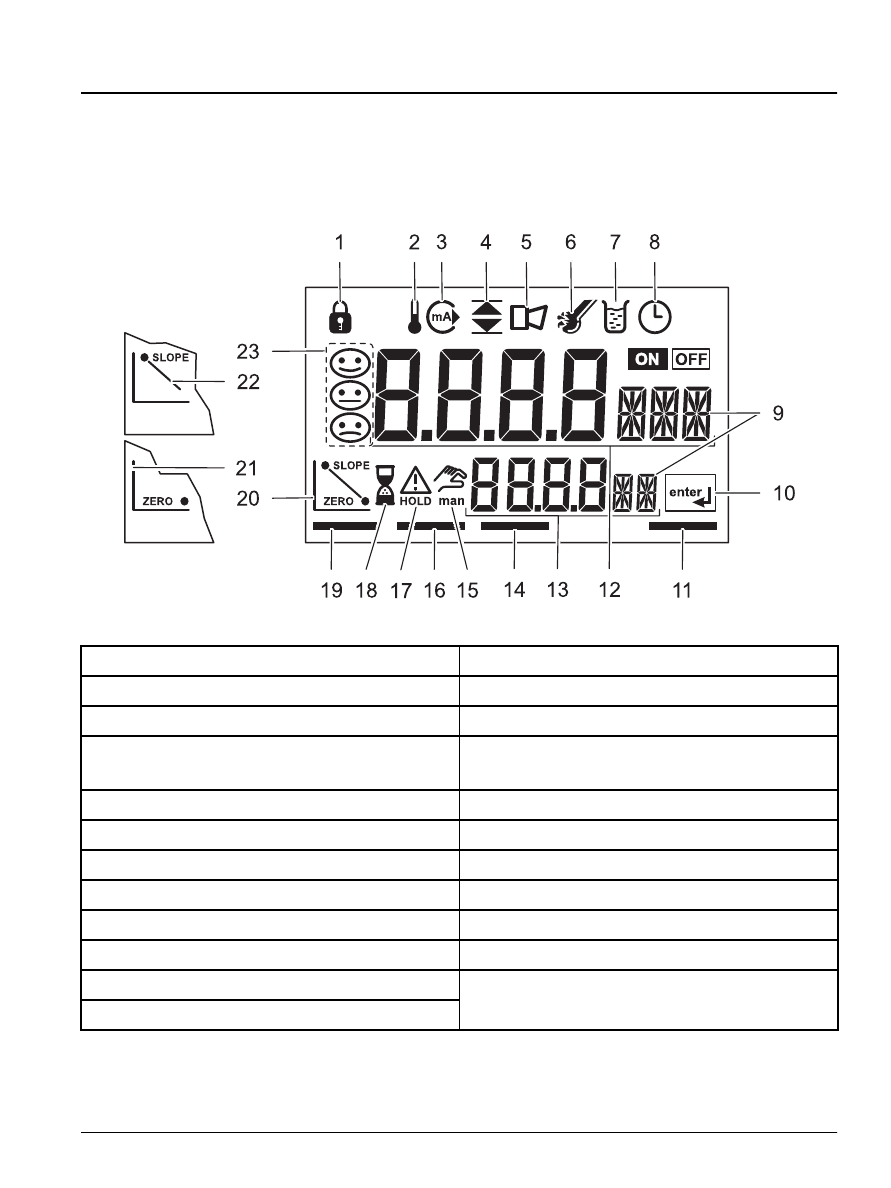

Figure 10 si792 display
1 Passcode 13 Secondary display
2 Temperature 14 Alarm mode
3 4–20 mA output (HART) 15 Manual temperature on
4 Limit values (Foundation Fieldbus
and Profibus PA)
16 Calibration mode
5 Alarm 17 Hold mode on
6 Sensocheck 18 Hourglass
7 Calibration 19 Measure mode
8 Calibration interval 20 Calibration indicator
9 Parameter 21 Zero indicator/error
10 Enter prompt 22 Slope indicator/error
11 Configuration mode
23 Sensoface
12 Main display
