5.8 Manually releasing the motor
5.7 Adjusting the closing and opening-speed brake microswitches

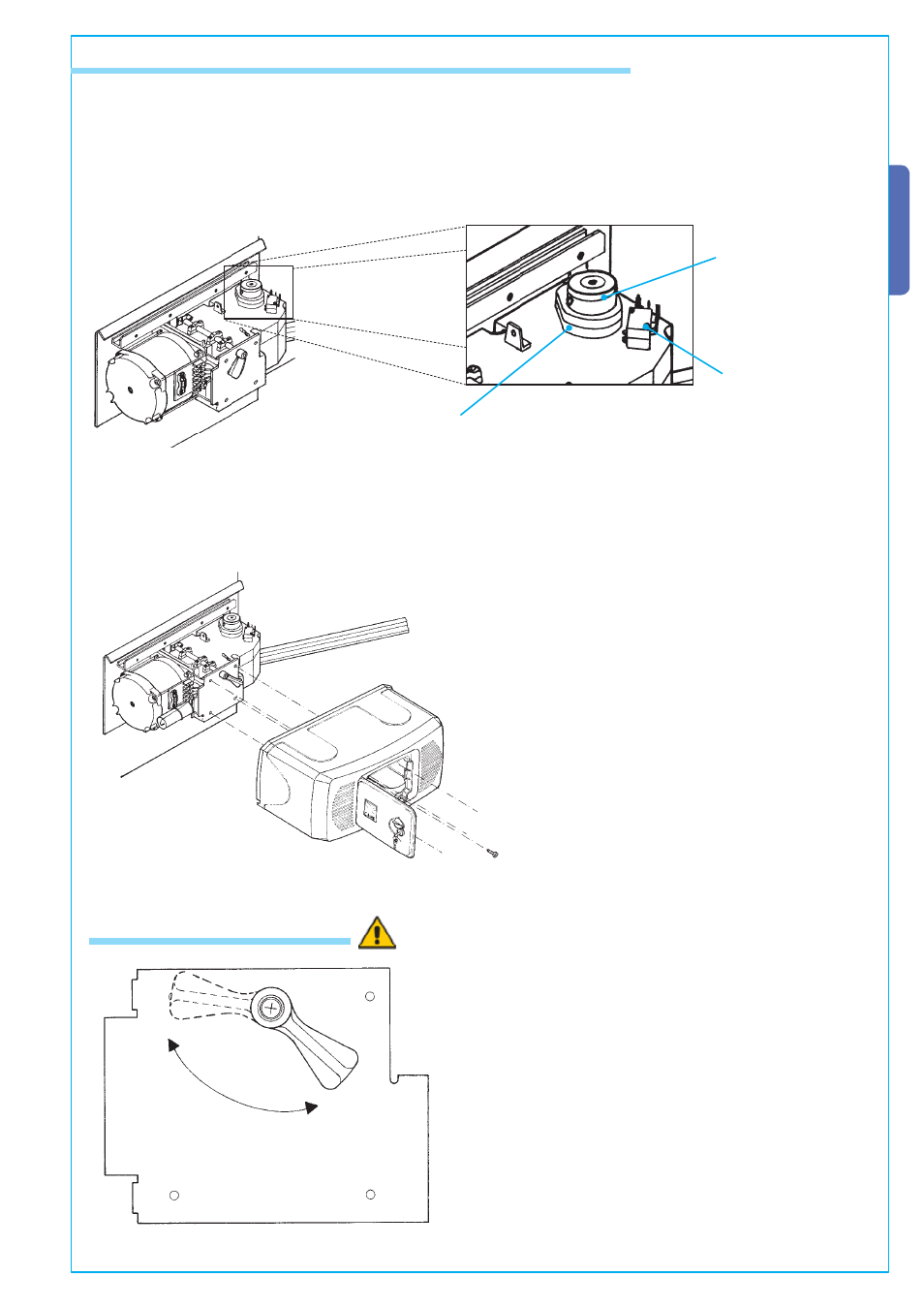

Opening: release the gearmotor and lead the gate leaf 500 mm from the fully open position. Turn the upper cam until the micro-
switch is inserted and tighten the screw found on the cam.
Closing: release the gearmotor and lead the gate leaf 500 mm from the fully closed position. Turn the lower cam until the micro-
switch is inserted and tighten the screw found on the cam.
Lower cam
When performing the next, required, electronic adjustment of the closing space, please consult the technical documentation of
the installed CAME control panel.
Upper cam
Microswitch
In the event of power outages or breakdowns, release the
gearmotor using the apposite handle.
ø 3,9x13
Once fi nished with mounting, electrical connections and
adjustments, lock the motor back into place and replace the
cover securing it with the 4 issued screws.
- Carry out when motor is not in operation
Release
Lock
Handle
