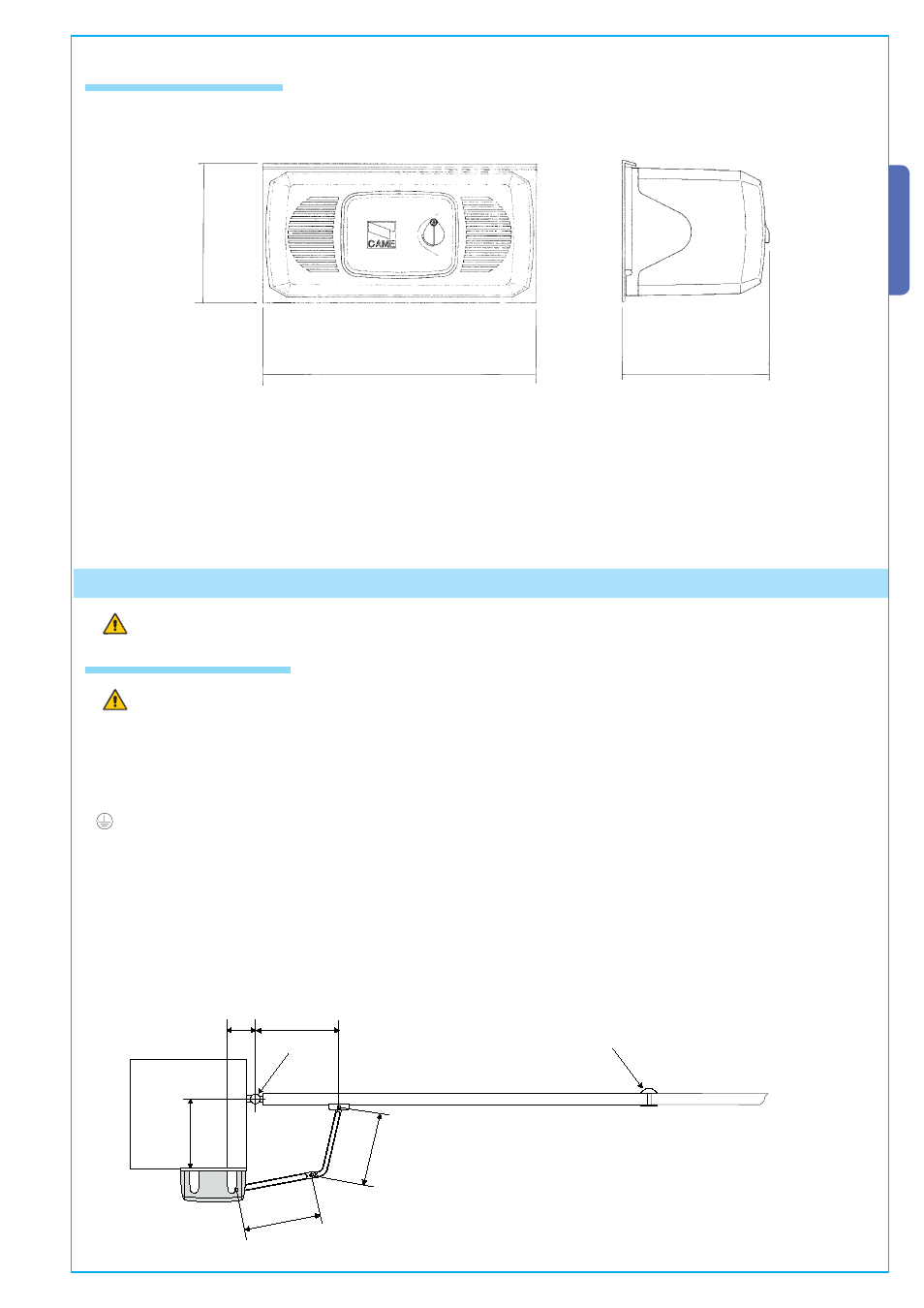

4.4 Overall dimensions
Measurements in mm
Before installing, do the following:
• Make sure the structure of the gate is sturdy, the hinges work and that the is no friction between moving and non-moving parts;
• That measurement C is not greater than the value shown in Tab. 3, p. 4. In which case you need to work on the pillar until said
measurement is obtained;
• Make sure the path of the electrical cables complies with the command and safety instructions;
• That there is a (soundly secured to the ground) mechanical stop to prevent the gate leaf/gearmotor from over extending
.
• You may perform internal back up circuit connections, provided you use additional insulation when compared to the other
internal live parts;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
5 Installation
5.1 Preliminary checks
Pillar
Gate leaf
End stop
Hinge
182 340
16
8
* If distance B is 0 to 300 mm, distance A
must be at least 110 mm
If distance B is 300 to 380 mm, distance A
must be at least 150 mm
450
400
350
*A
*B
