Timer Features
Features of the SXT:
Power backup that continues to keep time and the passage of days for a minimum of 48 hours in the event of
power failure. During a power outage, the control goes into a power-saving mode. It does not monitor water
usage during a power failure, but it does store the volume remaining at the time of power failure.
Settings for both valve (basic system) and control type (method used to trigger a regeneration).
Day-of-the-Week controls.
While in service, the display alternates between time of day, volume remaining or days to regeneration, and
tank in service (twin tank systems only).
The Flow Indicator flashes when outlet flow is detected.
The Service Icon flashes if a regeneration cycle has been queued.
A Regeneration can be triggered immediately by pressing the Extra Cycle button for five seconds.
The Parameter Display displays the current Cycle Step (BW, BF, RR, etc) during regeneration, and the data
display counts down the time remaining for that cycle step. While the valve is transferring to a new cycle step,
the display will flash. The parameter display will identify the destination cycle step (BW, BF, RR, etc) and the
data display will read “----”. Once the valve reaches the cycle step, the display will stop flashing and the data
display will change to the time remaining. During regeneration, the user can force the control to advance to
the next cycle step immediately by pressing the extra cycle button.
•
•
•
•
•
•
•
•

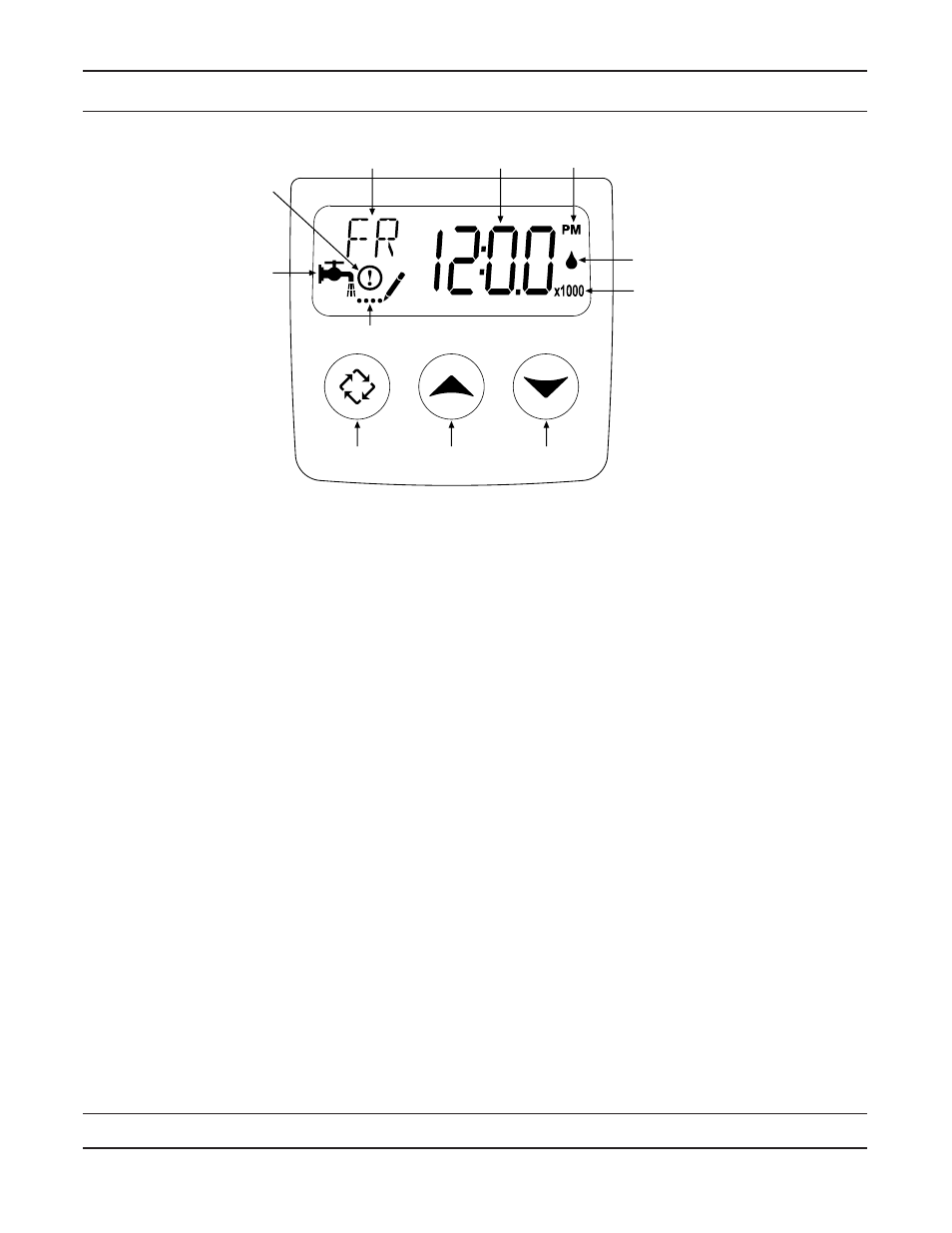

Parameter
Display
Data
Display
PM
Indicator
Flow Indicator
x1000 Indicator
Service
Icon
Programming
Icon
Extra Cycle
Button
Up
Button
Down
Button
Error/
Information
Icon
