6
Item# Part # Description
– 978003 Kit, Air Pump & Tank, AP1 Assy, 115V
– 978004 Kit, Air Pump & Tank, AP2 Assy, 230V
– 978010 Kit, Air Tank, 9x48, Assy
– 978011 Kit, Repair, 115-230V, Air Pump
1 87603 Connector, 3/8Cx1/4NPT
2 978013 Connector, 3/8x1/4, Tube Female, Plastic
4 978014 Diffuser, Head
5 – Hose, 6 FT needed
6 978015 Valve, Air Regulator AP1 & AP2 Air Pump
7 101047 Gauge, Pressure, 2, 0 - 100x1/4 PT
8 978016 Head, PVC, 1" Air Tank Head
9 978017 Valve, Check, 1/4"SS, Air Pump/Tank
10 978018 Rod, Smart Vent Air Tank
11 978019 Bushing, Smart Vent Hex Nut PVC Head, Air Tank
12 978020 Float, Smart Vent Air Tank
13 978021 Sleeve, Smart Vent Air Tank
14 978022 Stopper, Smart Vent Air Tank
17 978024 Pipe, Vent 1/2"x8-3/4" PVC Head, 4 Hole, Short
16 978021 Sleeve
18 978005 Pump, Air, AP1 115 Volt
18 978009 Pump, Air, AP2 230 Volt
19 978012 Air Filter, AP1, AP2 Air Pump
20 121780 Valve, Check, 1 FMX1 FM, Brass
21 12320-58 Tubing, Distributor, 58.5 X1
22 33611006 Nipple, Sch 80, 1x2, MxM
23 194804 Tank, 9x48, Natural, Single
– 978006 Kit, Install, SH-SS-KIT
Parts included in this kit are #2 (Qty of 2),3,5,6,7,9 (Qty of 2), Pump Feet
(Qty of 3)-not shown, Bracket-not shown.
– 978007 Kit, Smart Vent
Parts included in this kit are #2 (Qty of 2),4,8,10,11,12,13,14,16.

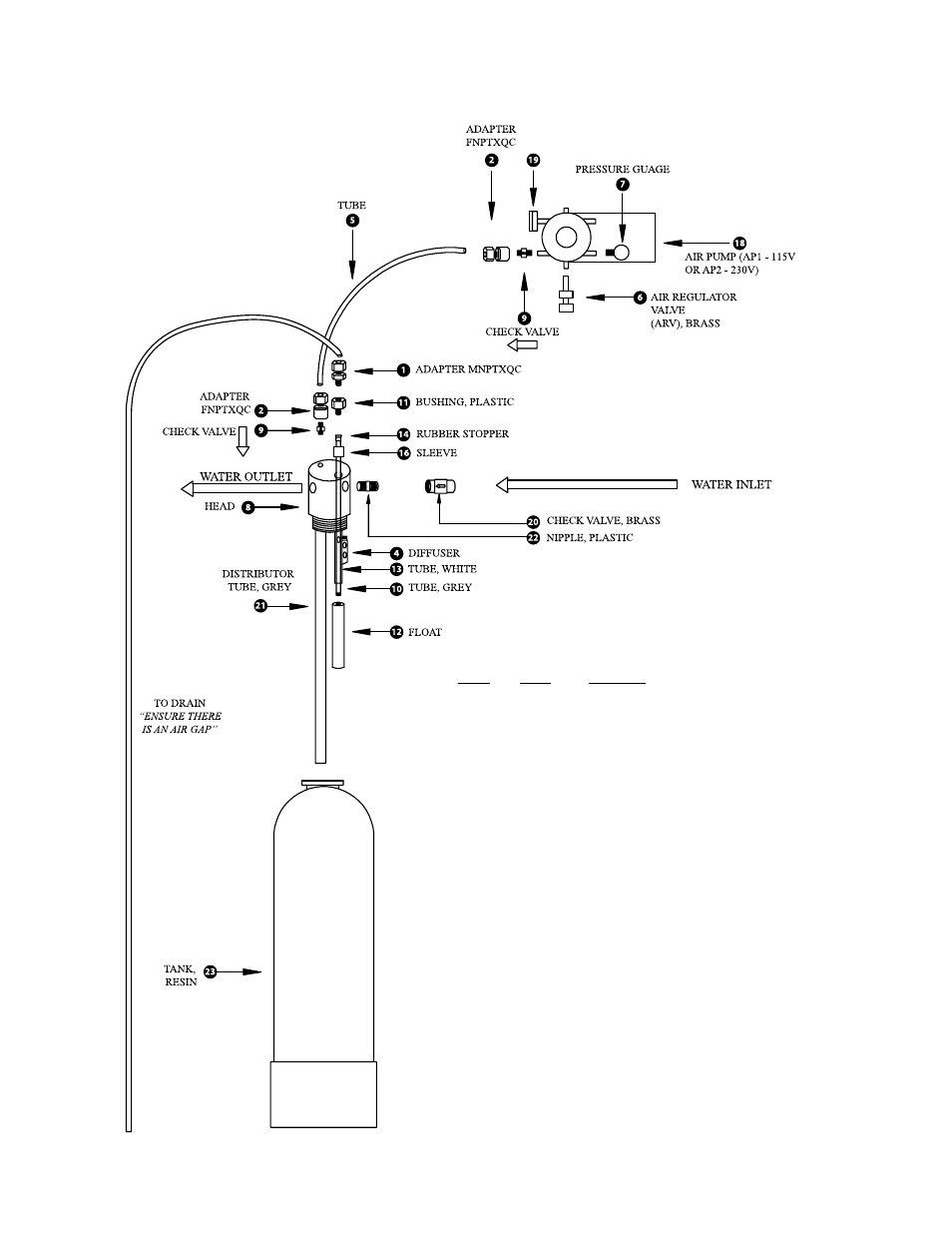

SECTION 11: PARTS BREAKDOWN
