Operating Manual
© Hydra-Flex Inc 2011 - 7 -
Triple Foam Setup (for MD5 if ordered with extra regulators)
If your MD5 panel was ordered with 3 air valves and 5 air regulators or with 5 air valves and 7 air regulators the
below instructions will show you how to setup your triple foam.
3 Valve / 5 Regulator MD5 Panel
• Your triple foam has been setup from the factory to be in port 3
• Insert your triple foam manifold into position 3 with your selected injectors already inserted
• On the side of the panel the 3 rd , 4 th , and 5 th regulators (numbering starts at the top) will control the air to each of
your triple foam colors
• Insert your air lines to the arch into the bulkhead fittings on the bottom of the panel. The 3 rd , 4 th , and 5 th bulkhead
(counting from left to right) will be the airlines for each color.

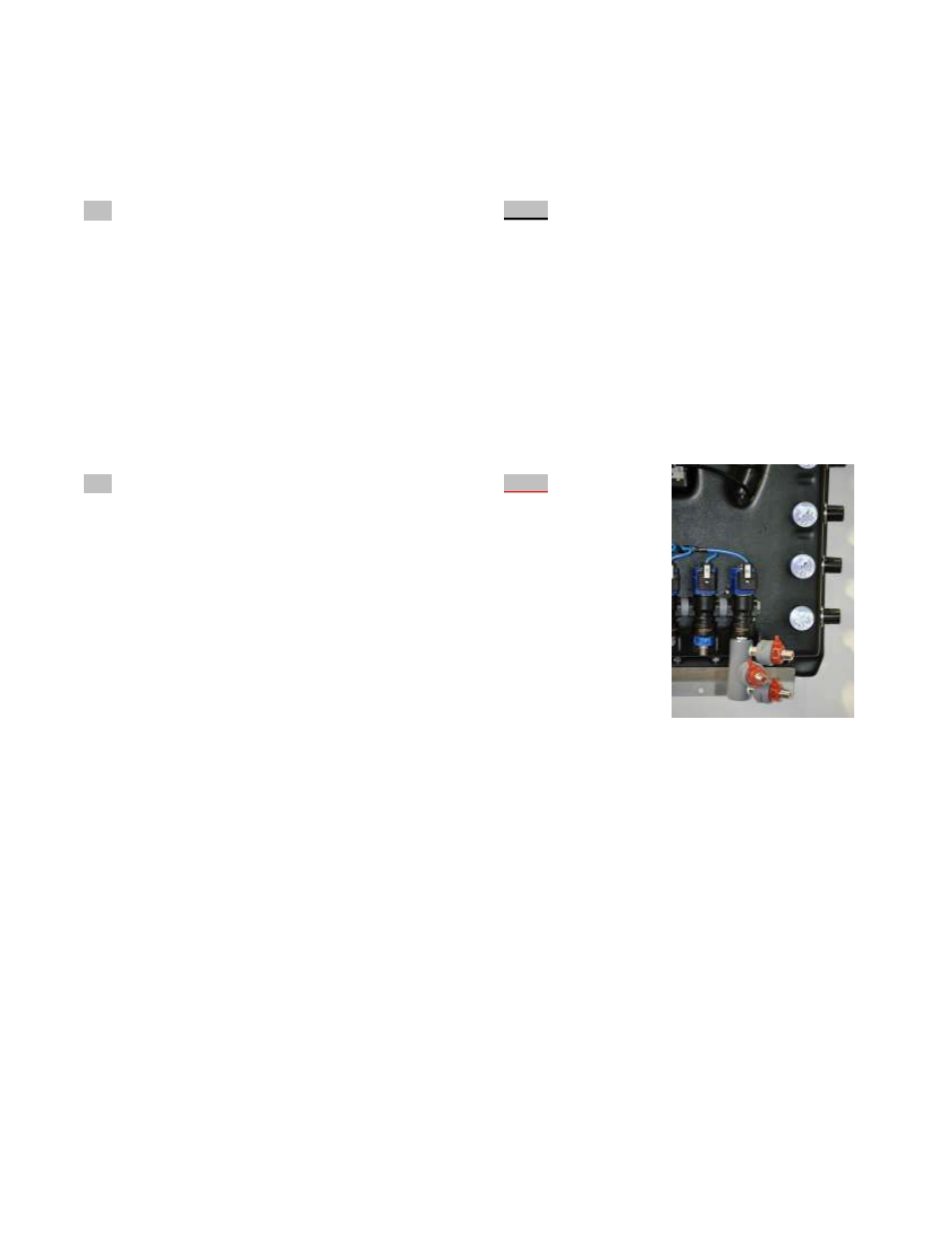

5 Valve / 7 Regulator MD5 Panel
• Your triple foam has been setup from the factory to be in port 5
• Insert your triple foam manifold into position 5 with your selected injectors
already inserted
• On the side of the panel the 5 th , 6 th , and 7 th regulators (numbering starts at the
top) will control the air to each of your triple foam colors
• Insert your air lines to the arch into the bulkhead fittings on the bottom of the
panel. The 5
th , 6 th , and 7 th bulkhead fittings (counting from left to right) will be
the airlines for each color.
Note: Occasionally if all three regulators are pre-set too high, you may need to lower all three regulators to their
lowest setting and then turn them up to the desired pressure.
