Installation instructions, Rear stabilizer bar 7652

7652 (R-652) 12/29/04
TORQUE TABLE
Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs
SAFETY
: BEFORE BEGINNING INSTALLATION BE SURE TO SET THE PARKING BRAKE
AND CHOCK THE WHEELS.
NOTE:
TO EASE INSTALLATION AND PROPERLY ADJUST THE BAR, THE WEIGHT OF THE
VEHICLE MUST BE ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE
THE VEHICLE BY THE FRAME.
NOTE:
THIS UNIT IS DESIGNED TO MOUNT TO THE BOTTOM OF THE AXLE TUBES WITH
THE ARMS OF THE BAR TOWARD THE REAR OF THE VEHICLE.
1. Place the D shaped bushings onto the straight areas of the bar on each side of the center hump.
2. Hold bar up to the axle and locate the position on the axle tubes to mount the u-bolts. Be sure to put the
U-Bolts Under Any Brake Lines, Wires or Hoses on the Axle to Avoid Any Possible Damage. The
threads of the U-Bolts will point down.
3. Place saddle brackets onto the U-Bolts on the axle tubes. Place the U-Plates over the D shaped bushings
on the bar and attach the bar to the U-Bolts and saddle brackets with the flat washers and nuts provided. Install
spacer plates between bushing and saddle if more clearance to the differential is required. LEAVE LOOSE
AT THIS TIME to allow for adjustment later. Remove brake cable/line bracket from axle and use single flat
plate to relocate higher. Also, for additional bar clearance remove the driver side lower shock bolt, turn it
around and reinstall from the opposite side of the lower shock bracket.
INSTALLATION INSTRUCTIONS

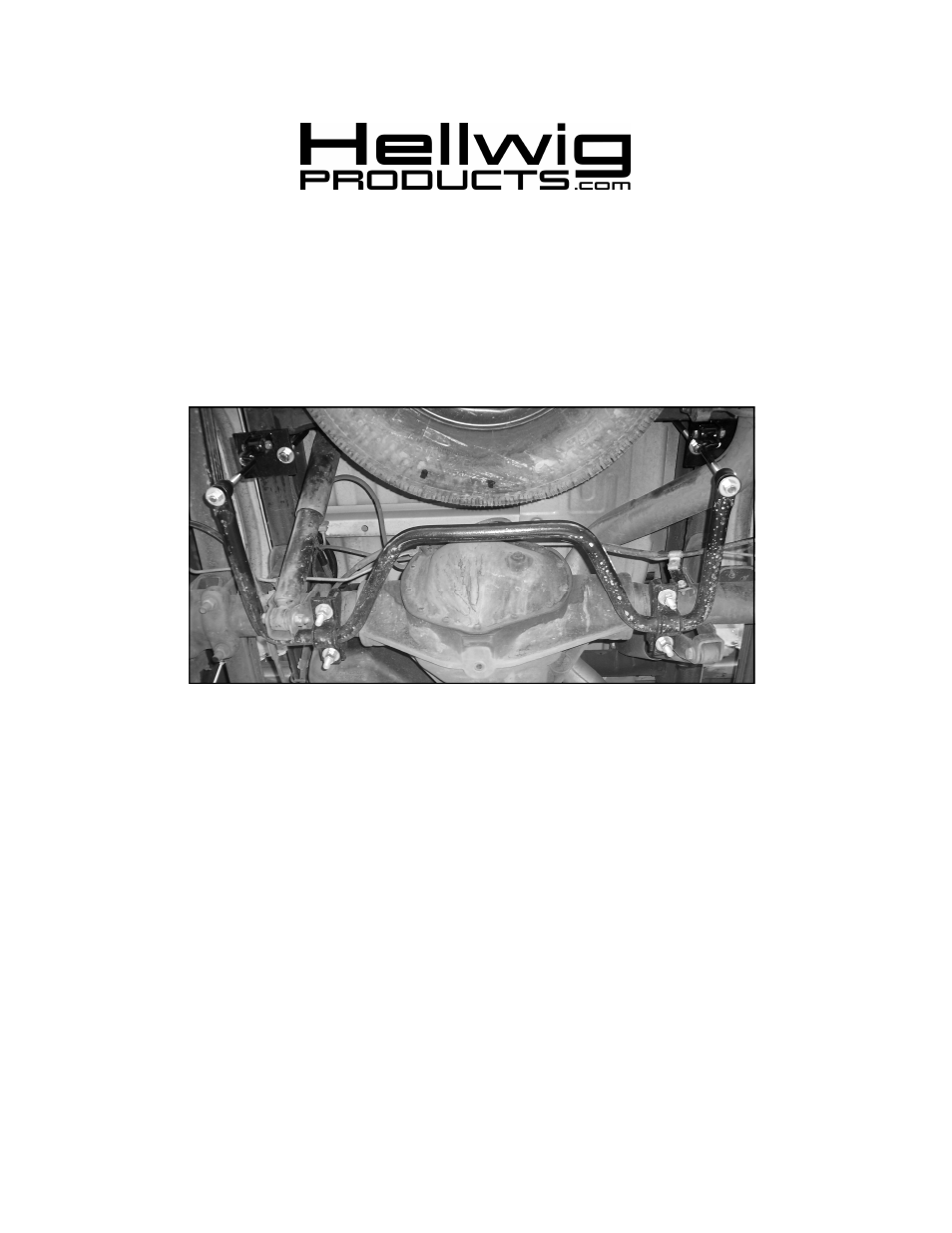

Rear Stabilizer Bar 7652
GM 2500HD-3500HD 2WD-4WD
Thank you for purchasing a quality Hellwig Product.
559-734-7451 800-367-5480 FAX 559-734-7460
