500-S, 750-S, 1000-S, 1000-UP • INSTALLATION/OPERATION/SERVICE MANUAL • 12.
S I T E I N S T A L L A T I O N
I N S T A L L A T I O N

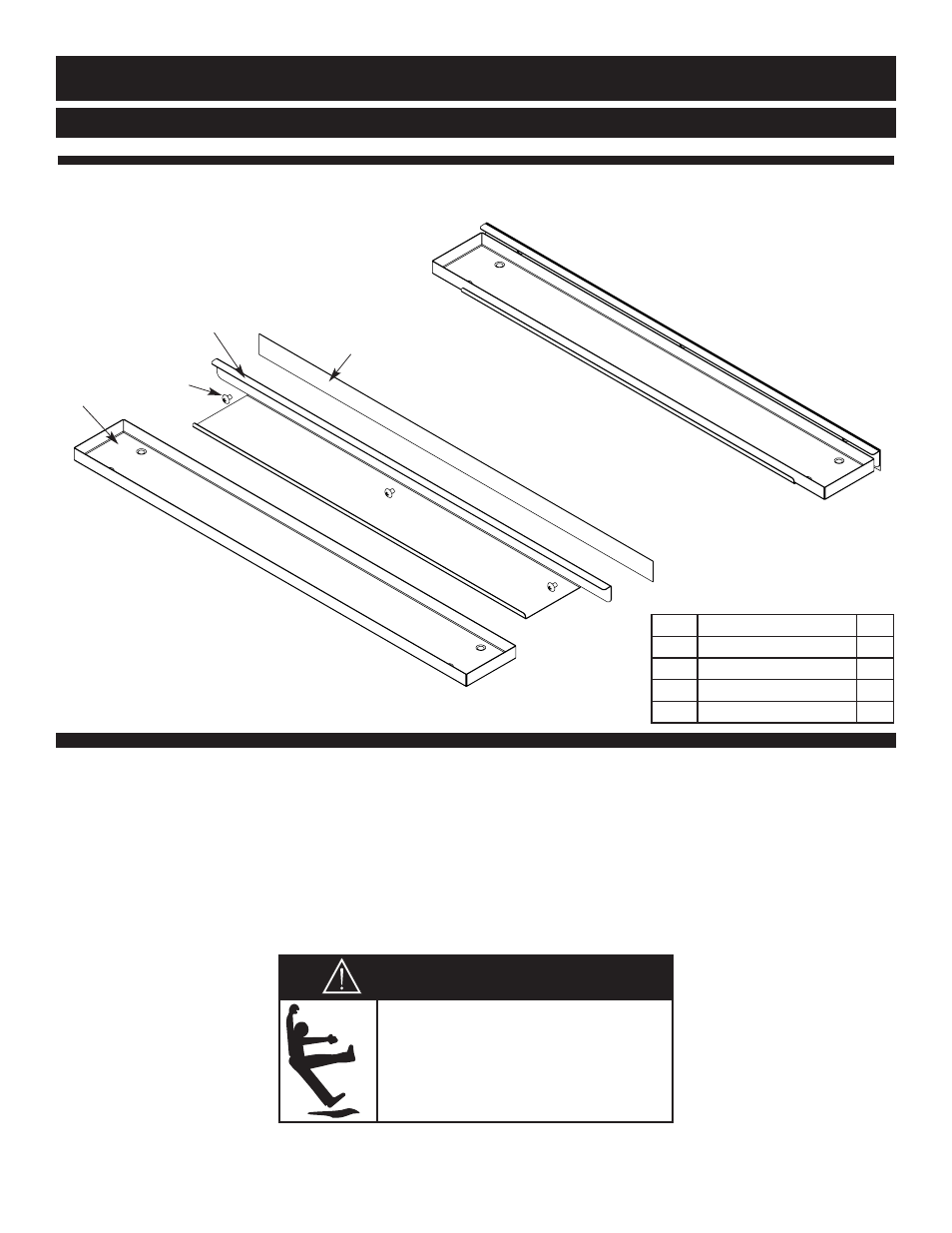

DRIP TRAY INSTALLATION INSTRUCTIONS - 1000-UP
W A R N I N G
FAILURE TO PROPERLY INSTALL THE
DRIP TRAY CAN OR WILL CAUSE
MAJOR EQUIPMENT DAMAGE AND
WILL RESULT IN A LEAKAGE
HAZARD THAT CAN CAUSE
PERSONAL INJURY.
Item Description Qty
1 Double-Sided Tape 1
2 Drip Tray Holder 1
3 8-32 x 1/4" Phil Screw 3
4 Drip Tray 1
1. Poke holes through double-sided tape
ቢ
which is attached to the back of drip tray holder
ባ
.
2. Remove backing on double-sided tape
ቢ
.
3. Put screws
ቤ
through holes and attach drip tray holder
ባ
to unit.
4. Optional - apply a line of food-grade silicone caulk along top edge of drip tray holder
ባ
to seal.
5. Place drip tray
ብ
in drip tray holder
ባ
.
ቢ
ባ
ቤ
ብ
