User’s Manual
43

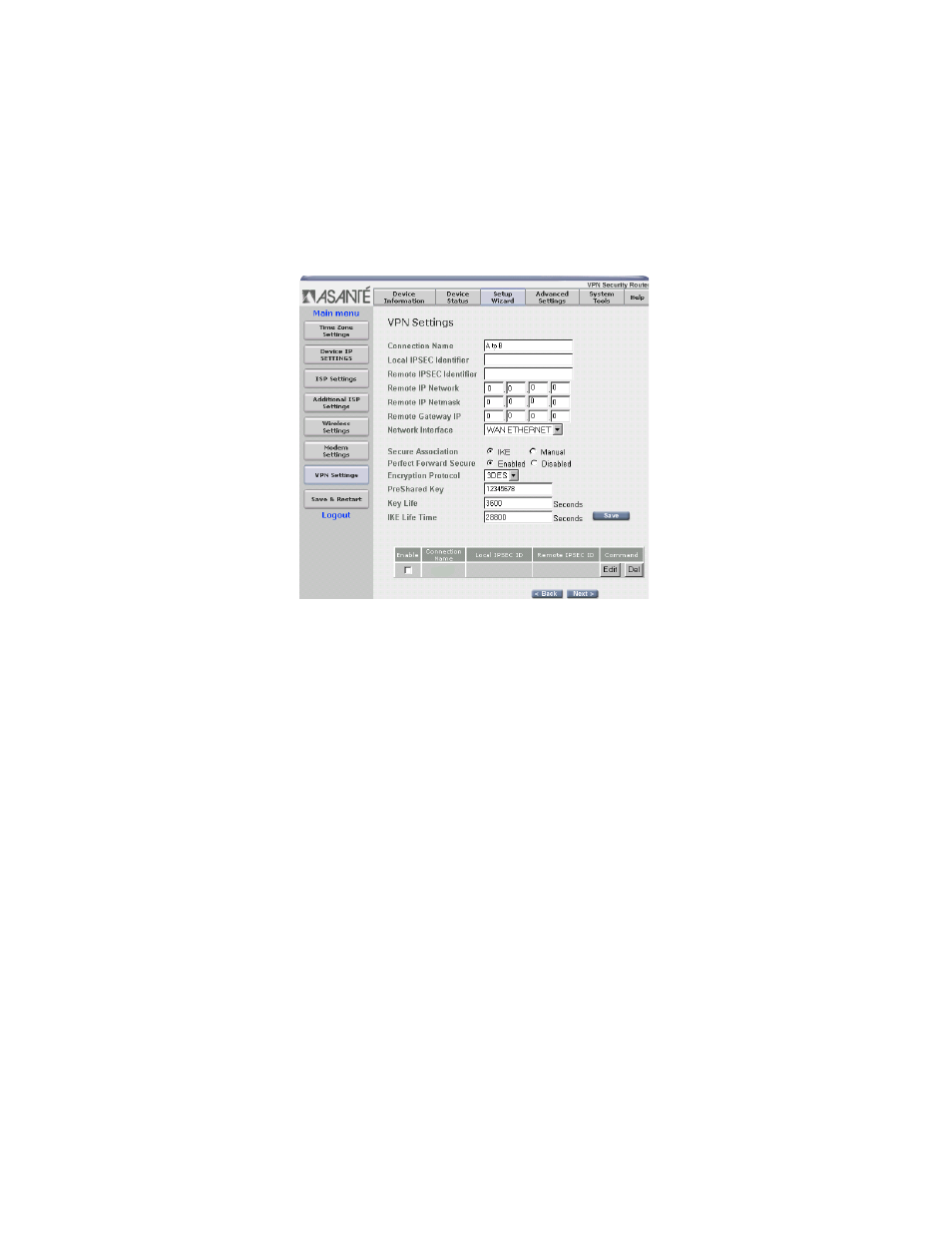

VR2004 ‘A’ (West end)
• Connection Name: West-East
• Local IPSec Identifier: West (Allows you to identify multi-
ple tunnels and does not have to match the name used at
the other end of the tunnel. May be left blank. The default
value is Local.)
• Remote IPSec Identifier: East (Allows you to identify mul-
tiple tunnels and does not have to match the name used at
the other end of the tunnel. Maybe left blank. The default
value is Remote.)
• Remote IP Network: 192.168.100.254
• Remote IP Netmask: 255.255.255.0
• Remote Gateway IP: 10.0.0.123
• Network Interface: WAN ETHERNET
VR2004 ‘B’ (East end)
• Connection Name: East-West
• Local IPSec Identifier: East
• Remote IPSec Identifier: West
