User’s Manual
31

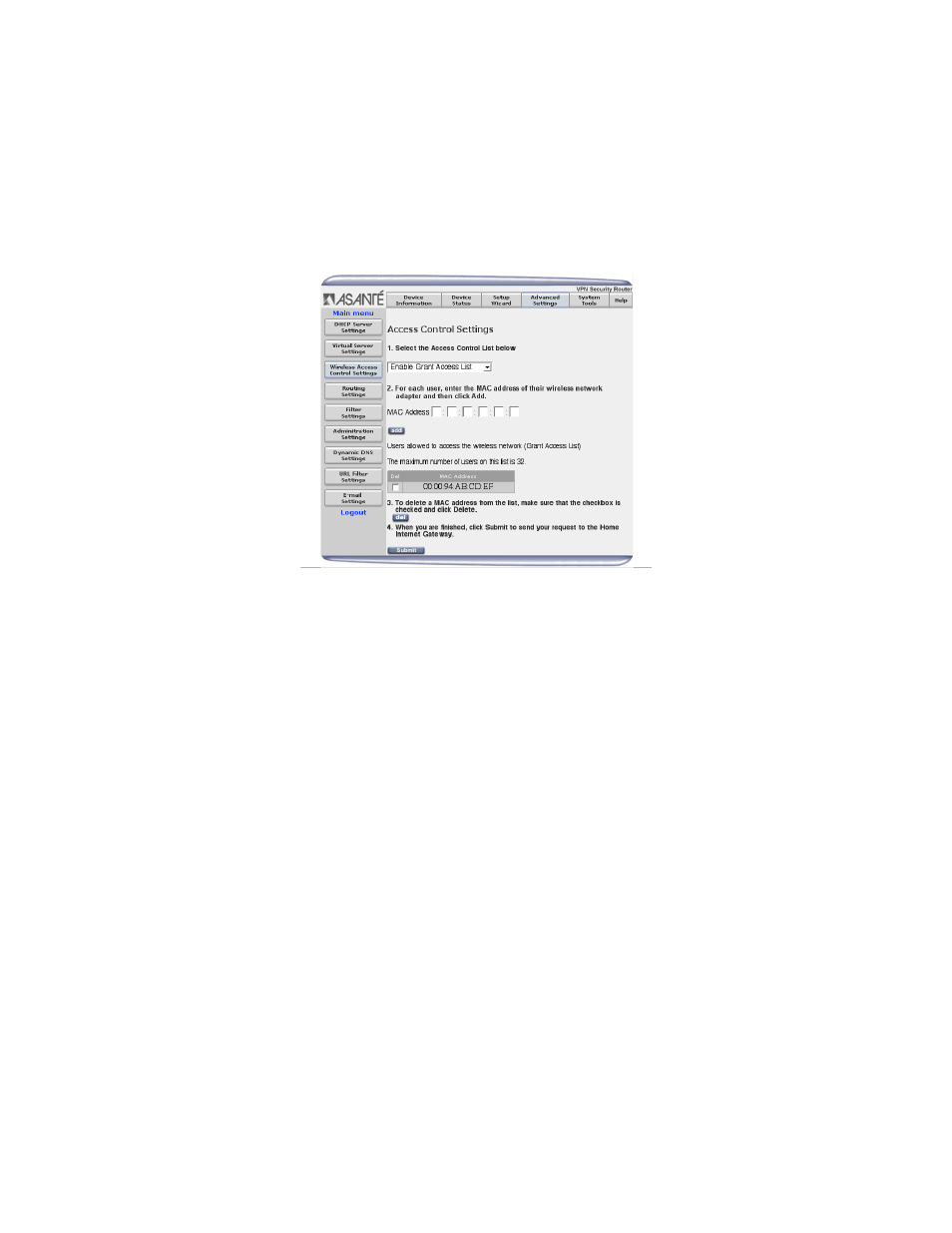

To delete a MAC address, select the corresponding checkbox and
click the Del button. The maximum number of entries allowed in the
table is 32.
Note: At least one client must have full access in order to perform
administrative tasks.
Click Submit to have your changes take effect.
3.4 Routing Settings
* This feature should only be used by users with an extensive
knowledge of TCP/IP.
This screen allows you to enter the Static and Dynamic Routing set-
tings.
3.4.1 Static Routing Table
Network traffic sent by the router is ordinarily sent to the default
gateway configured when the router is set up. Occasionally you
may need to specify a different gateway for a particular IP network.
