- 18 -
CHANNEL SWITCH: Each channel has corresponding channel switch, press 【OK】to turn on or turn off the
motion detection for each channel..
SENSITIVITY: each channel has corresponding sensitivity setting, including four standards high, relative high,
medium and low, press【OK 】key to switch

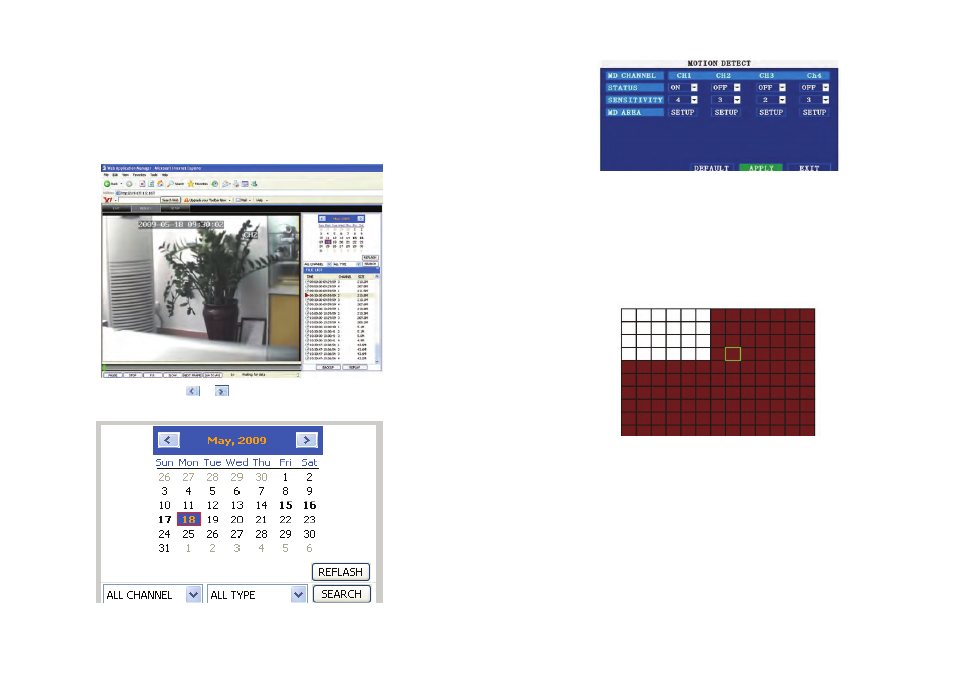

MD AREA: each channel has corresponding regional motion detecting setting, move the cursor to
corresponding【setup 】，press【OK】to enter regional setting interface, red area means it have activated motion
detection, transparent block means it have not activated motion detection. Picture is below:
Move the direction key on remote control or make cursor move to the need designed area, green frame means
the cursor has moved to this pane, press【OK】to select or cancel motion detection of this small pane, when setup
finished, press【exit】to back to MD setup interface, it will save automatically.
Remark:
IR Operation: press [Menu] key to select or cancel full screen.
Mouse operation: click left and drag the frame to setup the region for motion detection.
15 Mobile Surveillance
Move the cursor to【MOBLE】 （ Icon highlighted when selected），press【OK】to enter into setting interface.
Picture is below:
- 29 -
You can open, shut down and start this channel’s record via shortcut menu.
3. Click right key at one live view screen, click” open all windows” or “ close all windows”, will quickly
open/close all windows.
4.4.9 REPLAY
Click” REPLAY” to enter into playback interface.
Click right up of calendar interface and , to setup the month for searching, click” refurbish”, at the
calendar interface will display the recording information of current month
The highlighted date means that day have recording video, RED FRAME means the date is system date,
