ELRO DVR74W 7 tft 4-ch digital recorder + 500Gb hard disc User Manual

Page 10

- 9 -

Remark: You must press “APPLY” to make the setting for submenu valid. It will be no use when exit directly.

There is a special feature of this DVR: when you move the mouse somewhere, the explanation information will be

showed automatically.

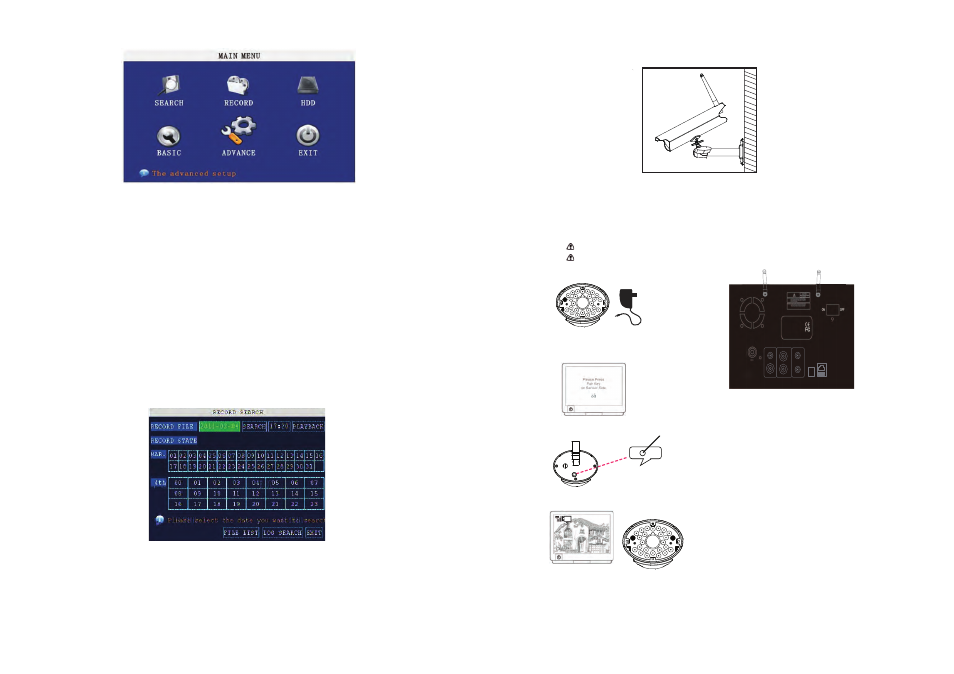

1 RECORD SEARCH

Move the cursor to 【 RECORD SEARCH】（ Icon highlighted when selected） ,press【 OK】 to enter into

the setting interface.

There are three methods of searching record.

Method 1: playback by date

Date input: You can adjust the checking date and time, press【 OK】

or input the number directly to adjust the

year, month, date. And then input time in the next box, click “playback ” and then you can see the recording video.

Method 2: playback by recording status:

Input the date, click 【 search】 and you can see the recording status on this date.

Instruction:

1. MONTH: It will show all the recording status in this month. Green means normal recording, Red means

alarm recording and the default color means no video. Click any date in this frame can search the recording

- 38 -

5.3

Camera Installation

Step1: D i git a l Wi r e less C a mer a Instal l a tion

Step2: System Operat i on

A . M a ke s u r e a l l c on n e c t i ons a r e c orr e c t a s a bov e d i a g r a m i n s t r u c t e d . P r e s s t h e P o w e r B u t t o n o n D V R b a c k

P a ne l t o t u r n on t h e L C D d i spl a y. C H 1 C H 2 w i l l di s p l a y i m a g e s of 2 D i gi t a l W i r e l e ss ca m e r a s.

B . Digi t a l wir e l e ss camera and rice i ver are paired in fac t o r y. F o llow b e l o w steps for D i gi t a l Wir e less

C a m e r a P a i r i n g i f n e c e ss a ry ! .

I t i s h i g h l y r ec o mmen d ed t o p a i r t h e c a m e r a b e f o r e h a rdw a r e i ns t a l l a t i o n.
B e for e p a i r i n g t h e c a m e r a , m a k e s u r e c a m e r a i s pow e r ON, c a m e r a s t a t us i n d i c a t o r a s shown.

a. Pr e ss (PAIR1 or PAIR2)on t h e rece i ver..

b . Sys t e m w i l l c o u n t do w n w i t h i n 6 0 s e c o nds, s y st e m

m e ss a ge a s sho w n:

c . W i t h i n 6 0 - s e c o n d c o u n t d o w n , p r e ss t h e P a i r K e y o n t h e

ba c k of c a m e r a .

d . Onc e p a i r i n g C o m p l e t e d, camer a and rec e iver s t atus

i nd i c a t ors a s a b ov e shown .

Pairing Key

VIDEO IN

AUDIO IN

RJ45

AUDIO OUT

USB
