6

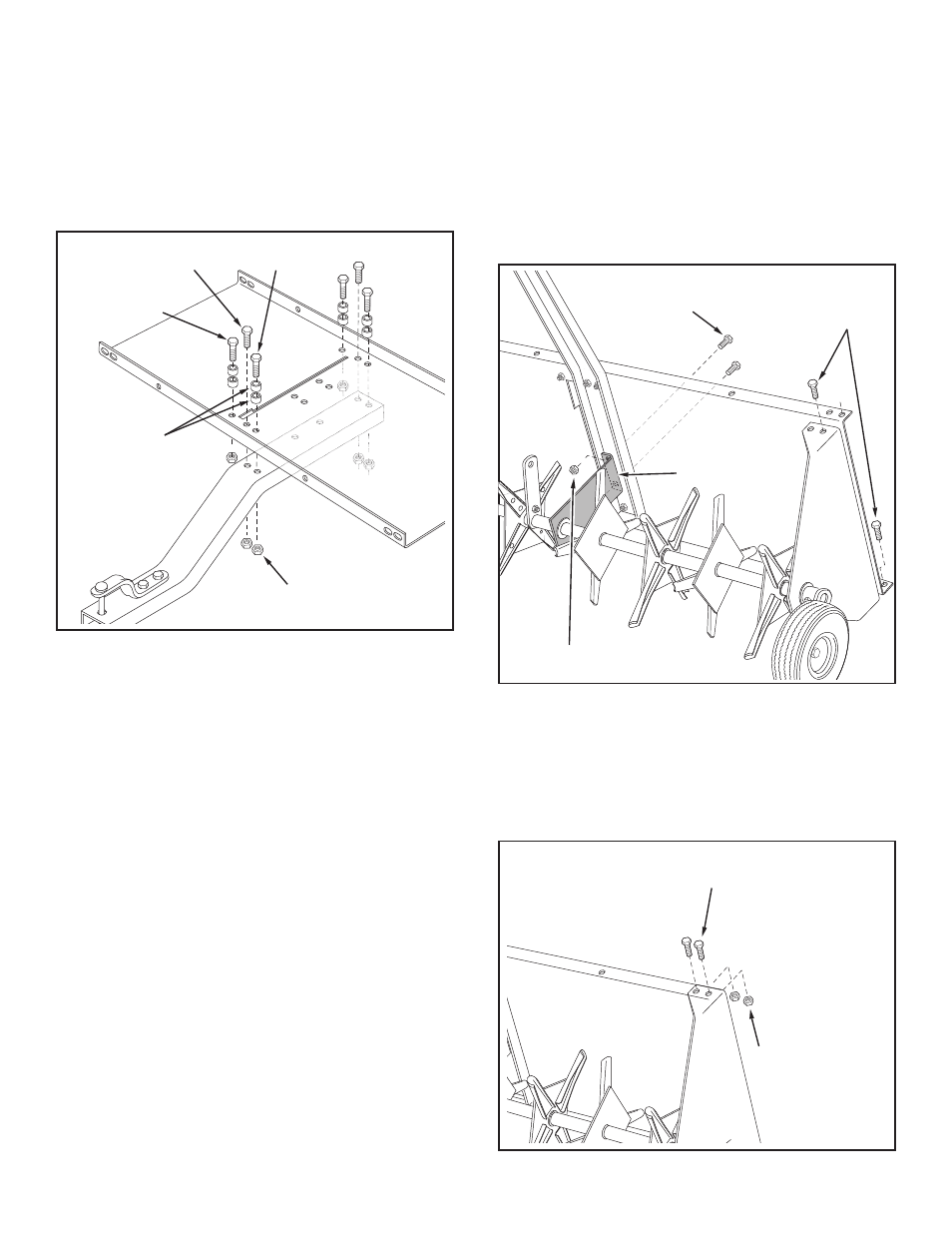

11. Assemble the tongue to the tray, placing the slot's locking
notch to the front. Use two 3/8" x 1" hex bolts, two 3/8"
x 1-1/4" hex bolts, four 1/4" long spacers, and four 3/8"
nylock nuts as shown in figure 8.
Tighten.
12. Assemble two 3/8" x 1-1/4" hex bolts, four 1/4" long
spacers and two 3/8" nylock nuts to the holes on the
right side of the slot in the tray.
Tighten. See figure 8.
FIGURE 10
13. Place the tray between the end plates. Temporarily
insert three 5/16" x 3/4" hex bolts to hold the tray and
end plates together at the corners. Leave one upper
corner empty. See figure 9.
14. Rotate the middle brace up against the tongue, aligning
it with the holes that are closest to the slot in the tray.
Fasten the brace to the tongue using two 3/8" x 1" hex
bolts and 3/8" nylock nuts.
Do not tighten till step 18.
See figure 9.
FIGURE 8
FIGURE 9
15. Fasten the end plates to the corners of the tray using
eight 5/16" x 3/4" hex bolts and 5/16" nylock nuts. Do
not tighten till step 18.
3/8" x 1"
HEX BOLT 3/8" x 1-1/4"
HEX BOLT
1/4" LONG
SPACERS
3/8" NYLOCK NUT
3/8" x 1-1/4"
HEX BOLT
5/16" x 3/4"
HEX BOLT
(Temporary)
3/8" x 1"
HEX BOLT
MIDDLE
BRACE
3/8" NYLOCK NUT
5/16" x 3/4"
HEX BOLT
5/16" NYLOCK NUT
