THREE PHASE WIRING INSTRUCTIONS
FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP
FROM ITS POWER SOURCE BEFORE HANDLING.
“Risk of electrical shock” Do not remove power supply cord and
strain relief or connect conduit directly to the pump.
Installation and checking of electrical circuits and hardware should
be performed by a qualified licensed electrician.
To automatically operate a non-automatic three phase pump, a control panel is
required. Follow the instructions provided with the panel to wire the system. For
automatic three phase pumps see automatic three phase wiring diagram.

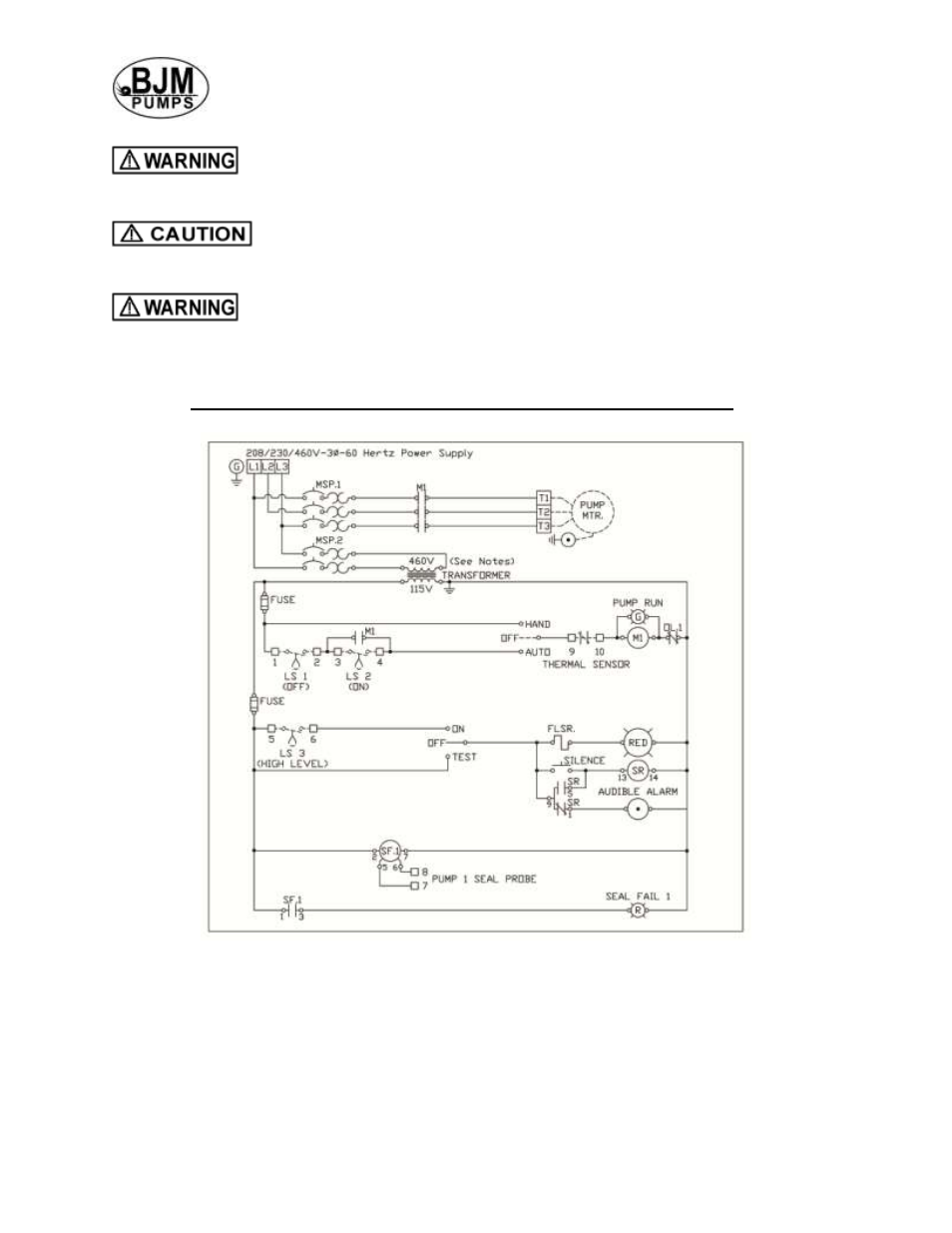

Typical 3 Phase Auto Control 1
Before installing a pump, make sure both of the ground leads and the power leads have
been connected properly. Once the power connections have been confirmed, then
check the pump rotation. Momentarily energize the pump, observing the directions of
kick back due to starting torque. Rotation is correct if kick back is in the opposite
direction of rotation arrow on the pump casing. If rotation is not correct, switching of any
two power leads other than ground will provide the proper rotation.
