SUGGESTED WIRING

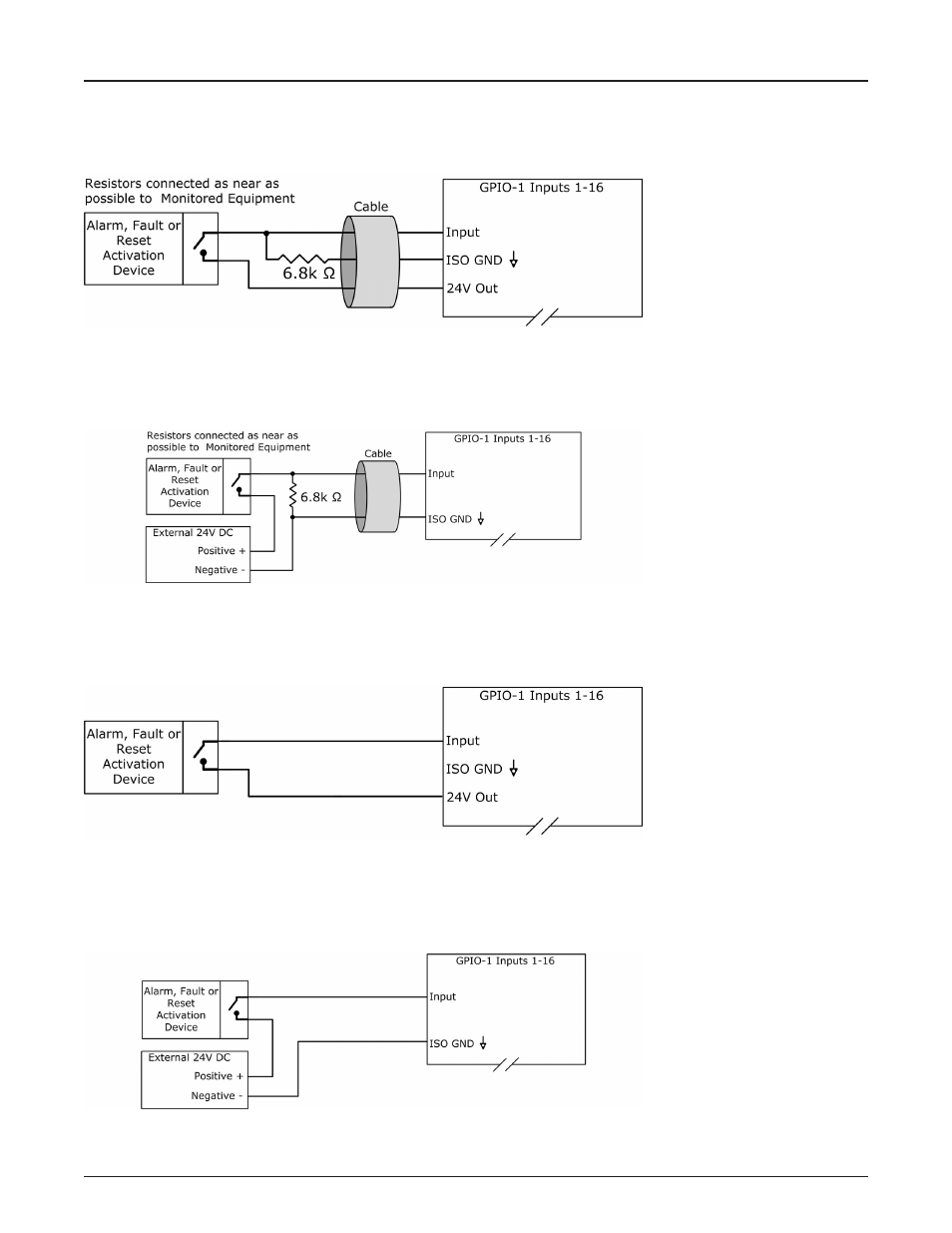

Input - High Range Monitored – Active High - 24VDC Locally Sourced
Notes: Vocia software configured as High Range Monitored - Active State High.
Circuit shown in Low State
Input - High Range Monitored – Active High - 24VDC Externally Sourced
Notes: Vocia software configured as High Range Monitored - Active State High.
Circuit shown in Low State
Input - High Range Unmonitored – Active High - 24VDC Locally Sourced
Notes: Vocia software configured as High Range - Active State High.
Circuit shown in Low State
Input - High Range Unmonitored – Active High - 24VDC Externally Sourced
Notes: Vocia software configured as High Range - Active State High.
Circuit shown in Low State
