10

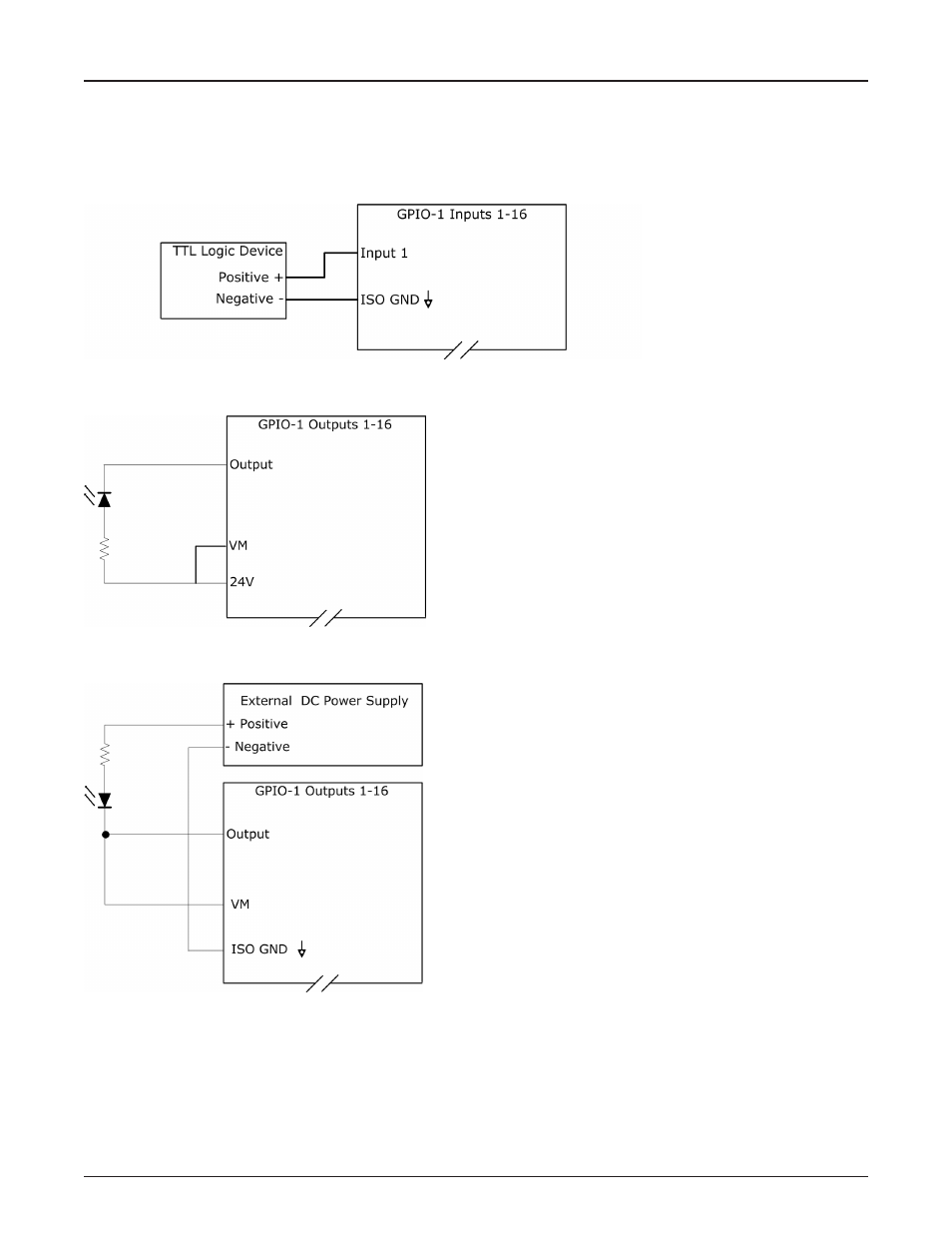

SUGGESTED WIRING

Input - 5V TTL Logic Control
Notes:
Low Voltage = 0 – 0.8 VDC. Logic High = 2 – 5VDC.
If configured as Active State High Alarm/Fault/Reset triggers when voltage transitions from Low to High.
If configured as Active State Low Alarm/Fault/Rest triggers when voltage transitions from High to Low.

Outputs Driving a LED Powered from GPIO-1 24V DC Out


Outputs Driving a LED Powered Externally


Outputs Driving a Relay Powered From GPIO-1 24V DC Out
