Sotera SP100-05X-XX-XXX-X - Manual (Page 7)

7

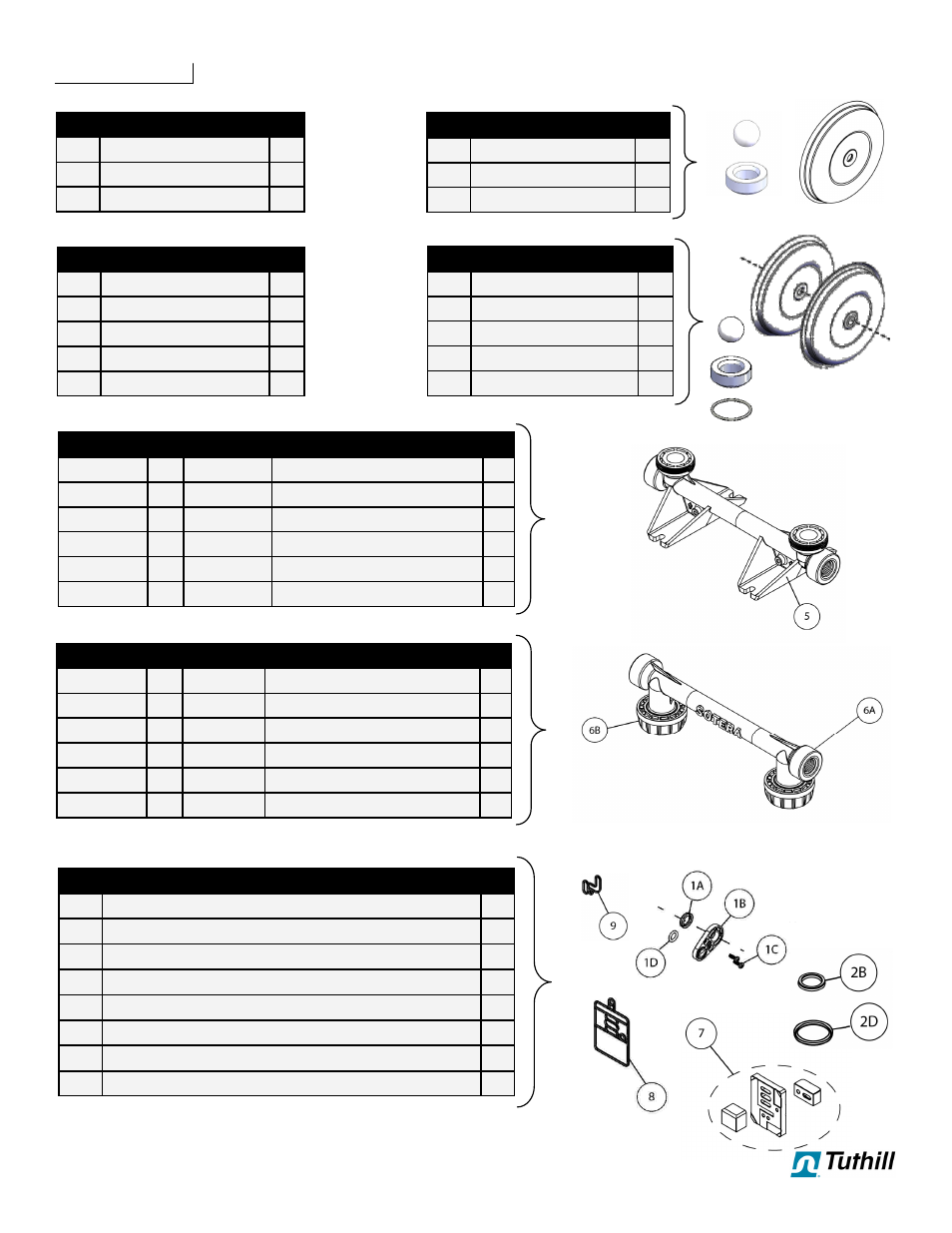

Kits and Parts
Item Description Qty
20 Diaphragm, Santoprene® 2
30 Ball, Santoprene® 4
40 Seat, Santoprene® 4
KITS05SSS Fluid Section Kit
Item Description Qty
20 Diaphragm, HYTREL® 2
30 Ball, HYTREL® 4
40 Seat, HYTREL® 4
KITS05HHH Fluid Section Kit HYTREL® ®
Item Description Qty
20 Diaphragm, PTFE 2
30 Ball, PTFE 4
40 Seat, Polypropylene 4
* Diaphragm Backer 2
* O-Ring, PTFE 4
KITS05TTP Fluid Section Kit PTFE®, PP KITS05TTF Fluid Section Kit PTFE®, PVDF
Item Description Qty
20 Diaphragm, PTFE 2
30 Ball, PTFE 4
40 Seat, PVDF 4
* Diaphragm Backer 2
* O-Ring, PTFE 4
* Part not numbered / shown
Inlet Kits
KIT Item Qty
KITS05NIP 5 1
KITS05NID 5 1
KITS05NIF 5 1
Material of Construction
Polypropylene
Groundable Acetal
PVDF
Description
Inlet
Inlet
Inlet
KITS05BIP 5 Inlet Polypropylene BSPP 1
KITS05BID 5 Inlet Groundable Acetal BSPP 1
KITS05BIF 5 Inlet PVDF BSPP 1
KIT Item Qty
KITS05NOP 6 1
KITS05NOD 6 1
KITS05NOF 6 1
Material of Construction
Polypropylene
Groundable Acetal
PVDF
Description
Outlet
Outlet
Outlet
KITS05BOP 6 Outlet Polypropylene BSPP 1
KITS05BOD 6 Outlet Groundable Acetal BSPP 1
KITS05BOF 6 Outlet PVDF BSPP 1
Outlet Kits
Item Description Qty
1A U-Cup, Buna-N, 1/2 x 3/4 x 1/8 ** 2
1D O-ring, Buna-N, 2 - 110 2
2B U-Cup, Urethane, 3/4 x 1 x 1/8 ** 1
2D U-Cup, Urethane, 1 - 3/16 x 1 - 7/16 x 1/8 ** 1
7 Ceramics 1
8 Track Gasket, Major Valve, Buna-N 1
9 Track Gasket, Pilot, Buna-N 1
* Grease Packet 1
KITS05AVA Air Valve Assembly Kit
* Part not numbered / shown
**Note installation orientation, page 8
* Part not numbered / shown
