Fluid Line Installation
Typical In Ground Tank Installation
A
B C
D
E
F
G
H
J

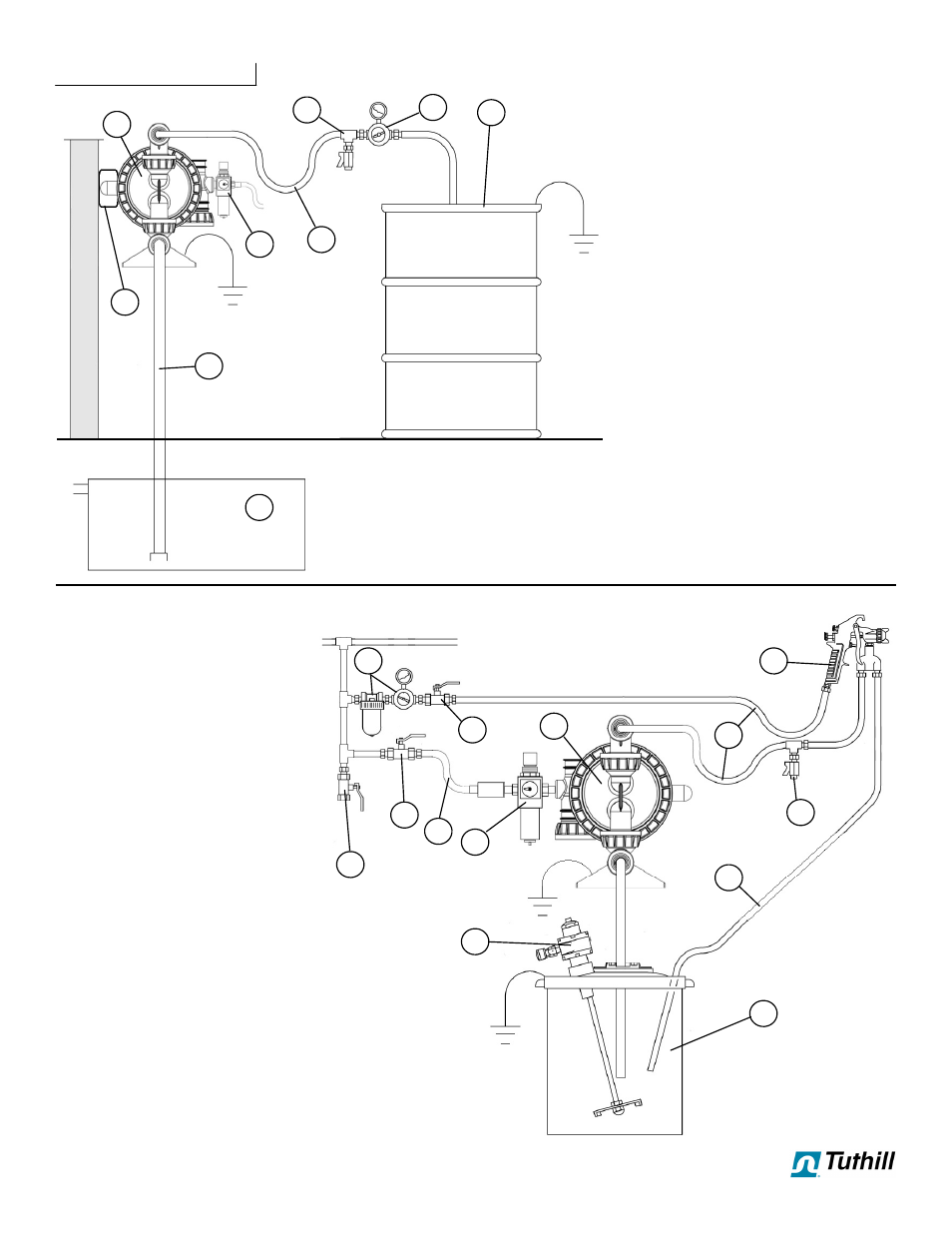

Typical In-Ground Installation
NOTE: Pump (A) and Fluid tank / drum / barrel (D) should
be grounded as illustrated
A) SP100 AOD
B) Fluid drain valve (recommended)
C) Fluid regulator (optional)
D) Fluid tank / drum / barrel
E) Wall mount bracket (KITS05WMA)
F) Air filter regulator (required: see air
line installation information on page 3)
G) Flex hose (outlet side)
H) Suction tube
J) Underground tank
Typical Air Spray Installation Typical Air Spray Installation
NOTE: Pump (A) and Fluid Tank (K) should be grounded
A) SP100 AOD Pump*
B) Air line accessories (plumb air to spray
gun per manufacturers specifications)
C) Master air shut off valve
D) Spray gun
E) Flexible air & fluid hose
F) Master air valve (for air / fluid drainage)
G) Air filter regulator (required: see air line
installation information on page 3)
H) Agitator
J) Fluid drain valve (recommended)
K) 5 Gallon pail
*NOTE: Mount pump securely to a solid surface using
appropriate bracketry and attaching hardware for the
application.
