Standard Equipment and Specifications
Specifications will vary with tractor, tire size, hydraulic system and bucket used. The specifications are given
for a loader equipped with 72” material bucket operated with an average tractor hydraulic system of 16.5 GPM
with engine operating at 2200 RPM and control valve relief setting of 2900 PSI.
4211 MSL
4211SS MSL
Horsepower Range
50-80 HP
50-80 HP
System pressure/flow rate
2900 PSI/ 16.5 GPM
2900 PSI/ 16.5 GPM
Lift Capacity to maximum height
3135 lbs.
2960 lbs.
Breakout force at pivot pin
5880 lbs.
5450 lbs.
Rollback force at ground line
2970 lbs.
2970 lbs.
Total weight with bucket (approx.)
1800 lbs.
1800 lbs.
Hydraulic system flow
16.5 GPM
16.5 GPM
System pressure at rated flow
2900 PSI
2900 PSI

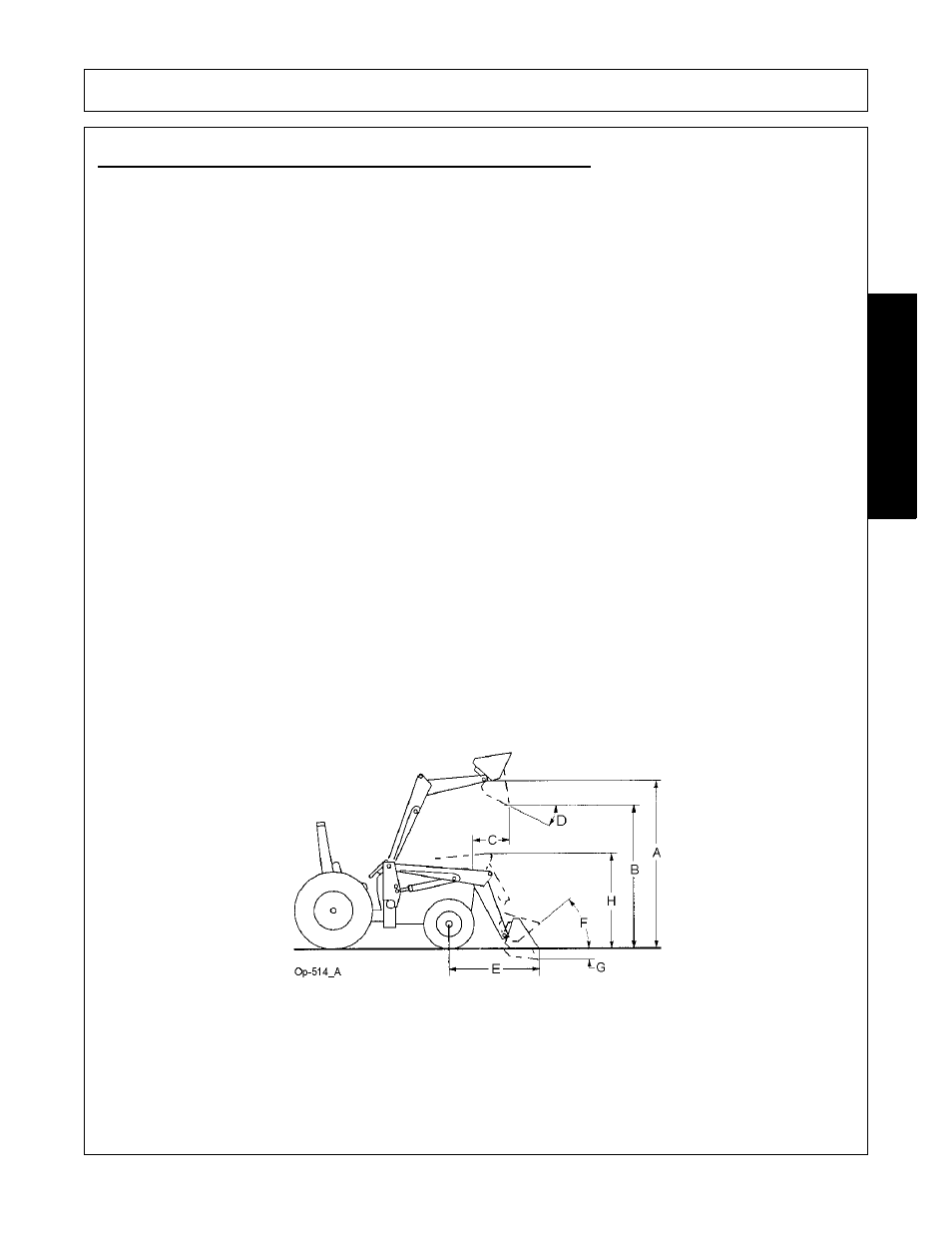

(A)
Maximum Lift Height at Pivot Pin
129”
131”
(B)
Clearance with Bucket Dumped
94”
97”
(C)
Reach at Maximum Height
29”
35”
(D)
Maximum Dump Angle
55°
60°
(E)
Reach with Attachment on Ground
83”
83”
(F)
Attachment Rollback Angle
37°
40°
(G)
Digging Depth
7”
4
(H)
Overall Height in Carry Position
75”
70”
(Manufacturers estimated specifications and design subject to change without notice.)
