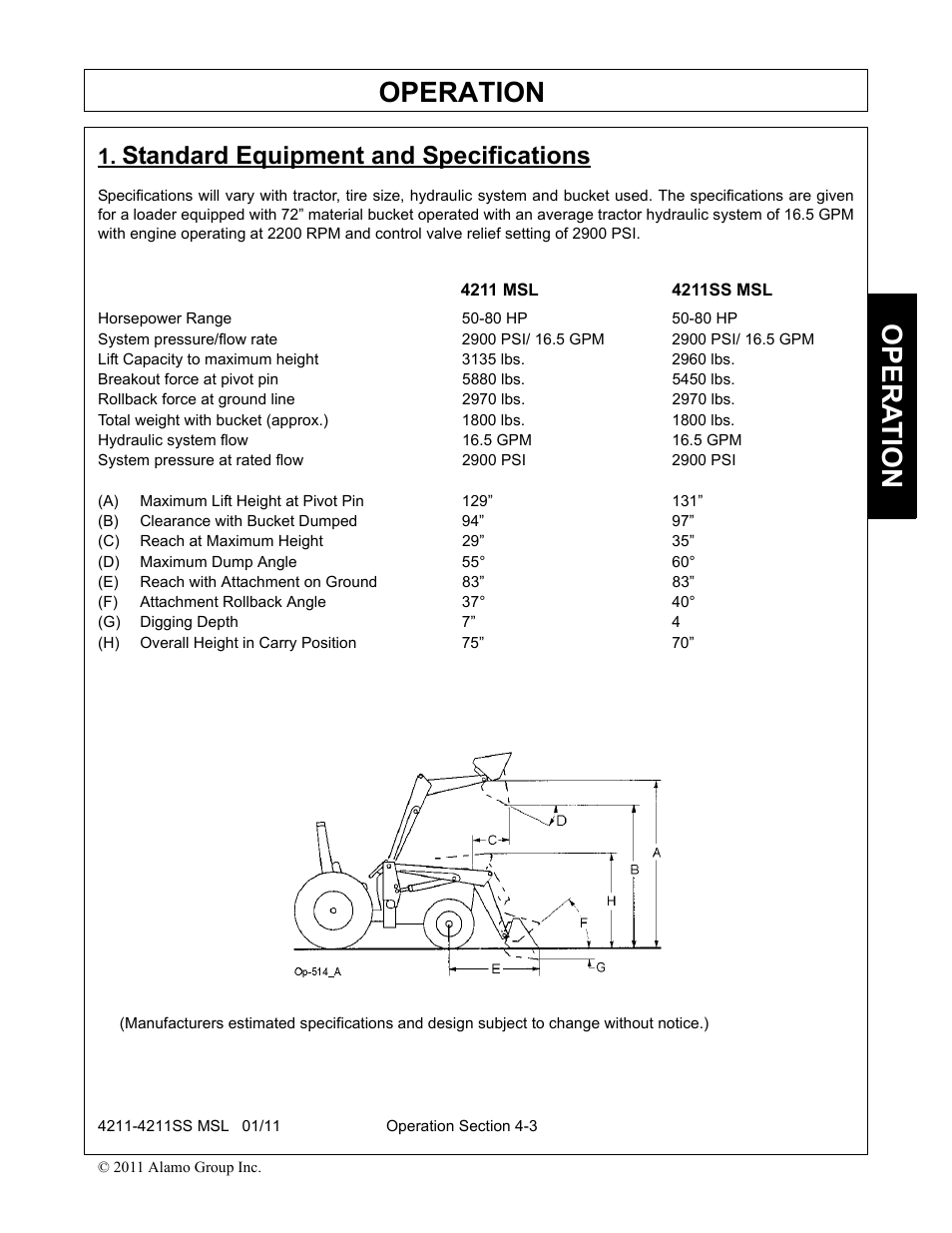

Standard equipment and specifications, A) maximum lift height at pivot pin 129” 131, B) clearance with bucket dumped 94” 97 – Alamo 4211 MSL User Manual

Page 49: C) reach at maximum height 29” 35, D) maximum dump angle 55° 60, E) reach with attachment on ground 83” 83, F) attachment rollback angle 37° 40, G) digging depth 7” 4, H) overall height in carry position 75” 70, Standard equipment and specifications -3

Standard equipment and specifications, A) maximum lift height at pivot pin 129” 131, B) clearance with bucket dumped 94” 97 | C) reach at maximum height 29” 35, D) maximum dump angle 55° 60, E) reach with attachment on ground 83” 83, F) attachment rollback angle 37° 40, G) digging depth 7” 4, H) overall height in carry position 75” 70, Standard equipment and specifications -3 | Alamo 4211 MSL User Manual | Page 49 / 104 Standard equipment and specifications, A) maximum lift height at pivot pin 129” 131, B) clearance with bucket dumped 94” 97 | C) reach at maximum height 29” 35, D) maximum dump angle 55° 60, E) reach with attachment on ground 83” 83, F) attachment rollback angle 37° 40, G) digging depth 7” 4, H) overall height in carry position 75” 70, Standard equipment and specifications -3 | Alamo 4211 MSL User Manual | Page 49 / 104
