55 56
Configuration

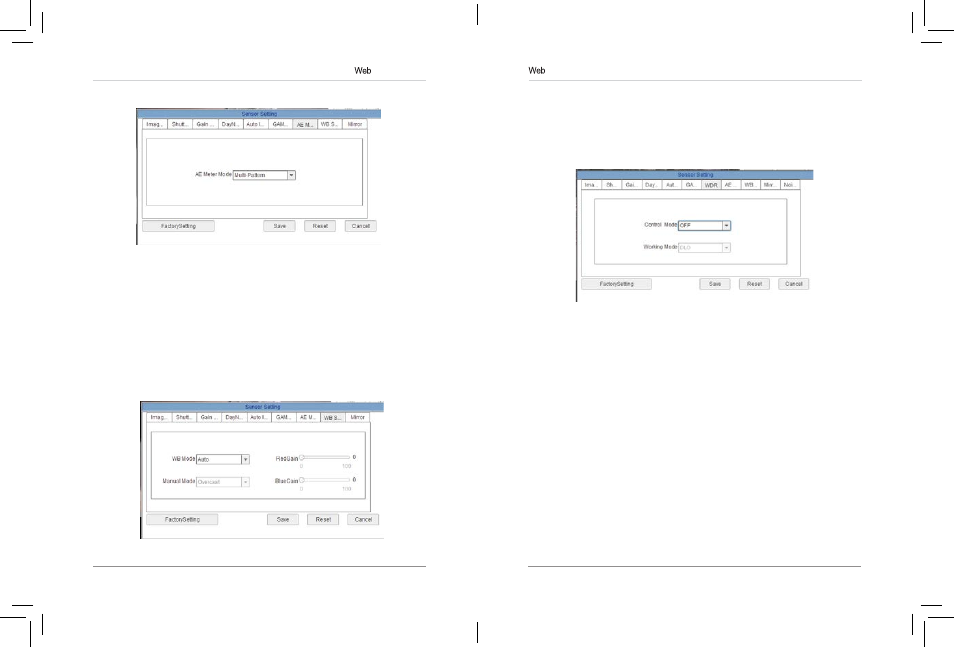

6.17.7 AE Meter Mode
Set the Auto-Exposure Meter Mode from one of the following:
• Multi-Pattern: When metering light, entire image is metered
symmetrically.
• Center-Weighted: When metering light, priority is given to the center of
the image.
• Vertical Center-Weighted: When metering light, priority is given to the
vertical center of the image.
• Horizontal Center-Weighted: When metering light, priority is given to the
horizontal center of the image.
6.17.8 WB Setting
Adjust White Balance.
Configuration
• WB Mode: Select Auto for automatic white balance or Manual to manually
set the white balance.
• Manual Mode: Select a mode for the lighting conditions or select
Customized and manually adjust the RedGain and BlueGain.
6.17.9 WDR (solution may not feature this setting)
Configure settings for Digital Wide Dynamic Range.
• Control Mode: Select ON to enable Digital Wide Dynamic Range or OFF
to disable.
NOTE: Enabling Digital Wide Dynamic Range may cause color distortion
based on the lighting. If you notice color distortion, it is recommended to
turn Control Mode to OFF.
• Working Mode: Select DLO (Digital Side Overflow) for environments with
few moving objects. Select MC (Motion Compensation) for environments
with multiple moving objects.
