gain is less than the set value of TRANS(N->D), cameras will switch to color.
5). Color control: when D/NSetting set as off, cameras keep color always, outside light is not
adequate during night time, it will cause color noise, adjust color control to decrease the color noise.

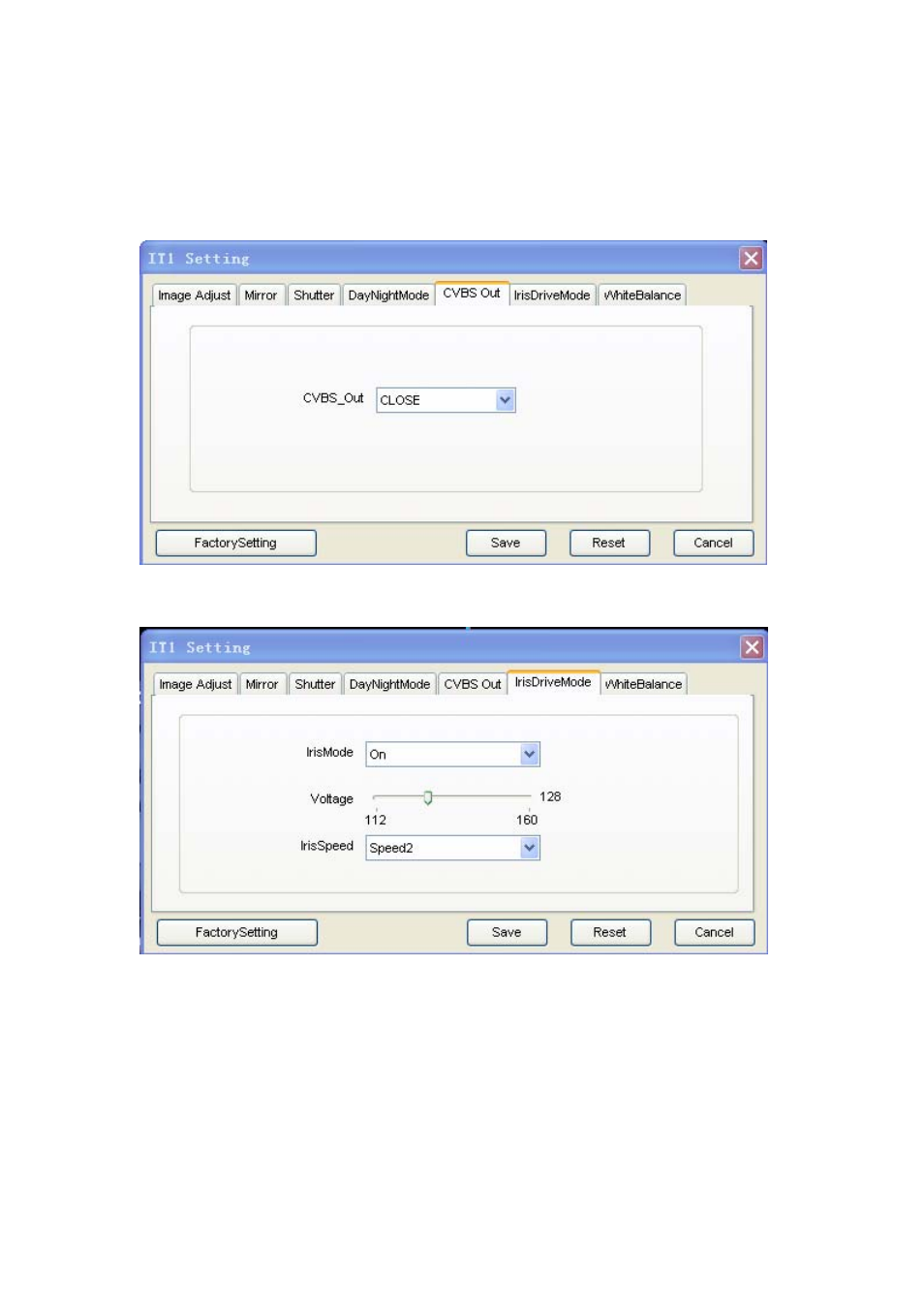

5. CVBS
When CVBS_Out open, cameras support analogue BNC output, the default is CLOSED.
6. IrisDrvieMode
1).when IrisMode off, Iris open max always. When IrisMode on, Iris will work after the priority of
shutter.
2).Voltage: Voltage is different for different iris. The recommended value is 128 ± 8 micro. If the
voltage is too low, image will be dark even flashing while too high, image will be overexposure
3) IrisSpeed: the speed of iris change, when image flash and it is no use by adjusting voltage, adjust
the IrisSpeed, the recommended speed value is Speed2.
7. WhiteBalance
