On-Screen Display (OSD) Settings
On the OSD control device on the cable, hit the center
button to activate the OSD settings.
Exposure Lens ELC DC
HBLC D-WDR BLC HLI/D-WDR
AGC OFF LOW MIDDLE
HIGH
3D DNR OFF LOW MIDDLE
HIGH
SENSE-UP AUTO OFF X2 X4
X8 X16 X32 X64
X128 X256 X512
EXIT
COLOR WB MODE ATW MANUAL
AWC>PUSH AWC
R-Y-GAIN O-256
B-Y-GAIN 0-256
EXIT
DAY & NIGHT D&N MODE AUTO COLOR
B&W EXT
FUNCTION MIRROR ON OFF
SHARPNESS 0-30
LSC ON(0-30)
OFF
MOTION MOTION ON OFF
AREA SEL. TOP BOTTOM
LEFT RIGHT
SENSITI 0-30
DISPLAY
OFF ICON TRACE
HOLD TIME 0-15 Unit: sec
ALARM ON OFF
EXIT
PRIVACY MASK1-MASK8 ON OFF
SETUP TITLE OFF ON: 64
characters
DPC OFF MANUAL:
WHITE THR 0-255
BLACK THR 0-255
DPC LEVEL 0-255
OLPF 650 850
MONITOR CRT LCD
GAMA 0.45 0.60 1.0
USER
EXIT
SYSTEM CAMERA ID 0-255
COMMUNI PROTOCOL:
PELCO-D
BAUDRATE: 2400
4800 9600 bps
RETURN
LANGUAGE CHINESE
ENGLISH
EXIT
EXIT FACTORY SET
SAVE & EXIT
EXIT

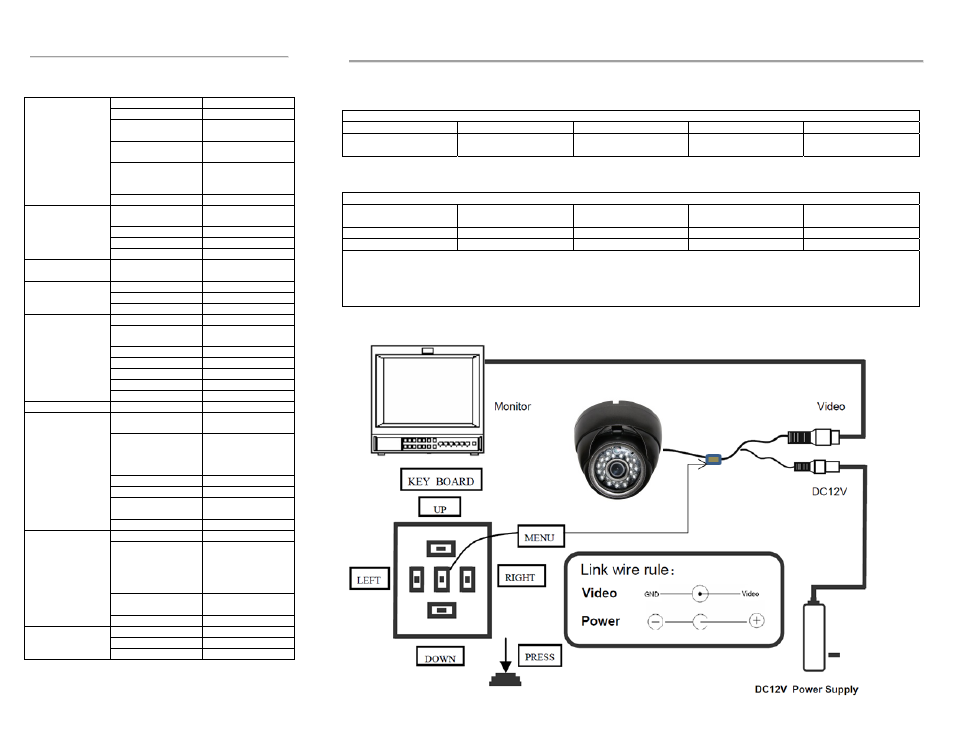

Connections
1. Use a BNC connector to connect the camera’s VIDEO OUT to the monitor’s (or DVRs) VIDEO IN. Use the following
recommendations for cable types and distances:
Maximum Cable Length
Type of Coaxial Cable RG-59/U RG-6/U RG-11/U RG-15/U
Recommended Max
Cable Length 250 M
825 ft 500 M
1650 ft 600 M
1980 ft 800 M
2640 ft
2. The power is DC 12V (+/- 10%) / 350mA. Use the following recommendations for cable types and distances:
12V DC Recommended Wire Size and Resistance (68°F)
Copper Wire Size
(AWG) #24
(0.22 mm
2 )
#22
(0.33 mm
2 )
#20
(0.52 mm
2 )
#18
(0.83 mm
2 )
Resistance (Ω/m) 0.078 0.050 0.03 0.018
Resistance (Ω/ft) 0.024 0.015 0.009 0.005
Use the formula below to calculate the power cord and power supply. “L”, “R”, “VA”, “I” shall satisfy the inequality below:
10.8 V DC ≤ VA - 2 (R x I x L) ≤ 16 V DC
L = Cord length (m or ft)
R = Resistance of copper wire (Ω/m or Ω/ft} VA = DC output voltage of power supply unit
I = DC current consumption (A).
3. Connect power supply to the camera’s POWER IN terminal.
