On-Screen Display (OSD) Settings
On the OSD control device on the back of the body, hit the
center button to activate the OSD settings.

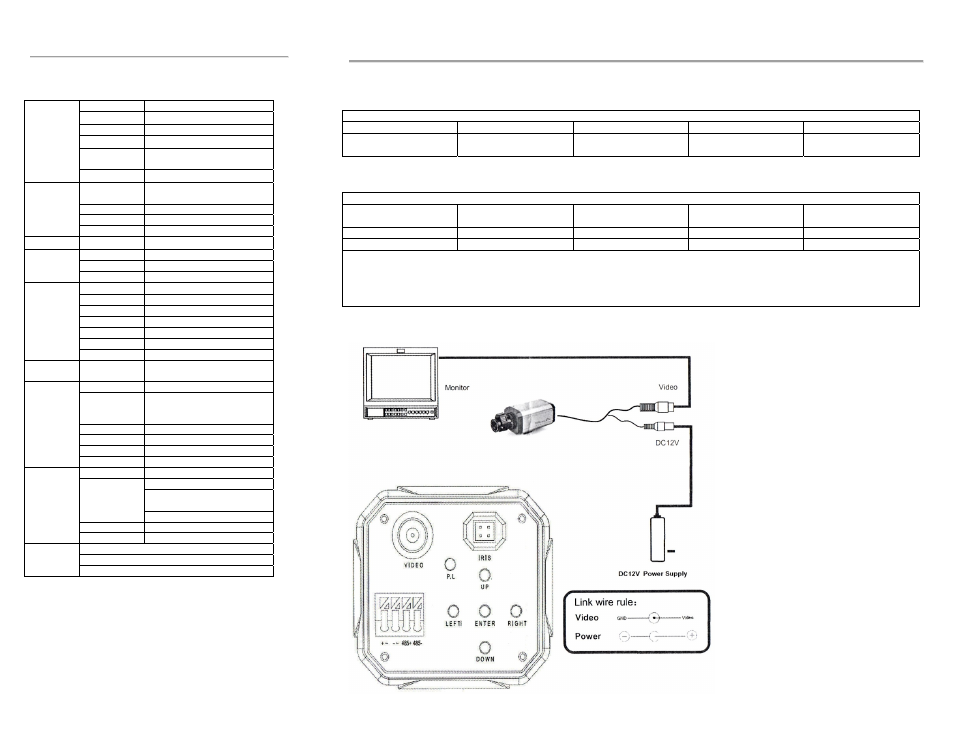

Connections
1. Use a BNC connector to connect the camera’s VIDEO OUT to the monitor’s (or DVRs) VIDEO IN. Use the following
recommendations for cable types and distances:
Maximum Cable Length
Type of Coaxial Cable RG-59/U RG-6/U RG-11/U RG-15/U
Recommended Max
Cable Length 250 M
825 ft 500 M
1650 ft 600 M
1980 ft 800 M
2640 ft
2. The power is DC 12V (+/- 10%) / 350mA. Use the following recommendations for cable types and distances:
12V DC Recommended Wire Size and Resistance (68°F)
Copper Wire Size
(AWG) #24
(0.22 mm
2 )
#22
(0.33 mm
2 )
#20
(0.52 mm
2 )
#18
(0.83 mm
2 )
Resistance (Ω/m) 0.078 0.050 0.03 0.018
Resistance (Ω/ft) 0.024 0.015 0.009 0.005
Use the formula below to calculate the power cord and power supply. “L”, “R”, “VA”, “I” shall satisfy the inequality below:
10.8 V DC ≤ VA - 2 (R x I x L) ≤ 16 V DC
L = Cord length (m or ft)
R = Resistance of copper wire (Ω/m or Ω/ft} VA = DC output voltage of power supply unit
I = DC current consumption (A).
3. Connect power supply to the camera’s POWER IN terminal.
Exposure LENS ELC/DC
HBL C/D-WDR BLC/HLI/D-WDR
AGC OFF / LOW / MIDDLE / HIGH
3D DNR OFF / LOW / MIDDLE / HIGH
SENSE-UP AUTO / OF F / X2 / X4 / X8 / X16
/ X32 / X64 / X128 / X256 / X512
EXIT
Color WB MODE ATW / MANUAL / AWC>PUSH /
AWC
R-Y-GAIN 0-256
B-Y-GAIN 0-256
EXIT
Day & Night D&N MODE AUTO / COLOR / B&W / EXT
Function MIRROR ON / OFF
SHARPNESS 0-30
LSC
ON (0-30) / OFF
Motion MOTION ON / OFF
AREA SEL TOP / BOTTOM / LEFT / RIGHT
SENSITI 0-30
DISPLAY
OFF / ICON / TRACE
HOLD TIME 0-15 Unit: sec
ALARM ON / OFF
EXIT
Privacy MASK1-
MASK8
ON / OFF
Setup TITLE OFF / ON 64 characters
DPC OFF / MANUAL:WHITE THR 0-
255 / BLACK THR 0-255 / DPC
LEVEL 0-255
OLPF 650 / 850
MONITOR CRT / LCD
GAMA 0.45 / 0.60 / 1.0 / USER
EXIT
System CAMERA ID 0-255
COMMUNI PROTOCOL PELCO-D
BAUDRATE: 2400 / 4800 / 9600
bps
LANGUAGE Chinese / English
EXIT
Exit FACTORY SET
SAVE & EXIT
EXIT
