There has an power consumption limit of external alarm equipment：
7000T series：240V/AC 7A, 125V/AC 10A, 28V/DC 10A
8000T/8200T series：120V/AC 1A, 24V/DC 1A
The The The The excessive excessive excessive excessive power power power power consumption consumption consumption consumption may may may may damage damage damage damage main main main main board. board. board. board.
FAQ FAQ FAQ FAQ
01：How to use the alarm function？
Answer ： Our system supports general sensors. （e.g. smoke sensor, IR
sensor ） Outgoing On/off value transfers the signal to Server via alarm
processing module. And it can enable related recording or output the
On/Off value ， all our products support normal open and normal close
working modes
①In case your sensor equipments are of high power consumption, to
avoid damaging the alarm output module, please make relay extension
connection.
②In case you are using high frequency equipments, e.g. High frequency
lights please make relay extension connection method, or alarm module
may not work properly.
02：How to clear alarm？
Answer： you can clear the alarms by pressing the “alarm clear” key on the
IR remote controller. If the host DVR is locked, please login first.

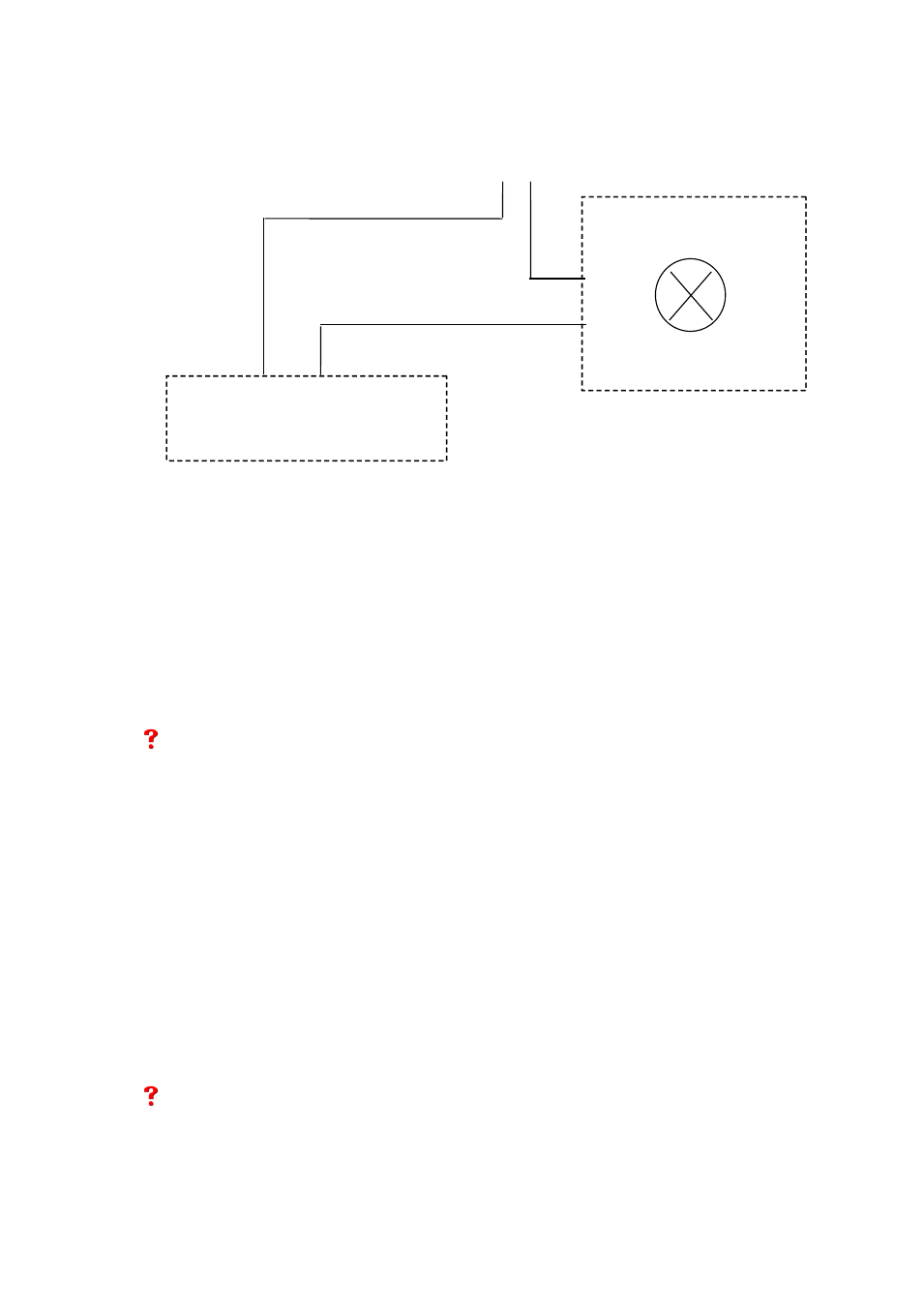

DVR
OUT 1A OUT 1B
Independent power supply
Alarm Speaker
