3 Description

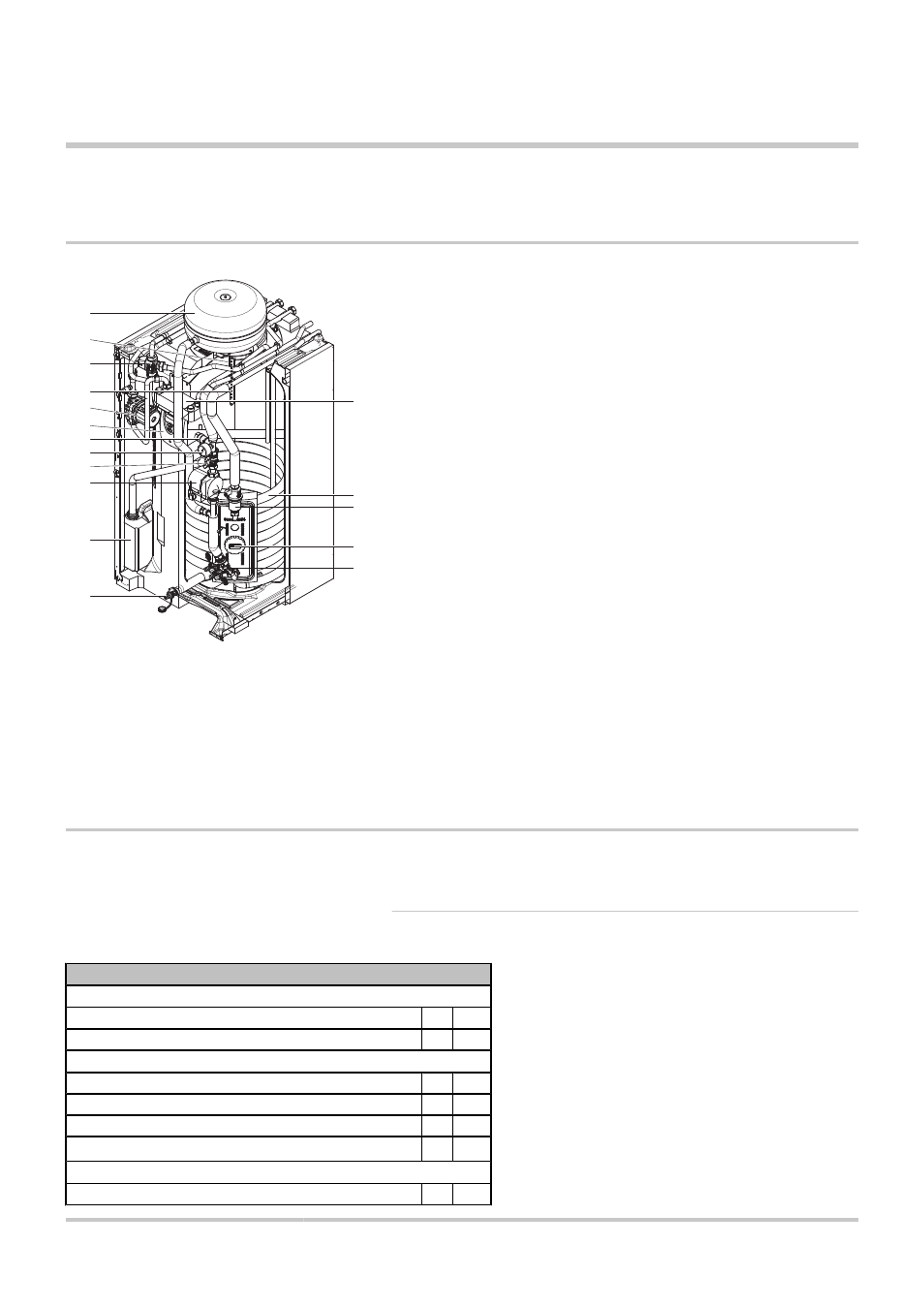

3.1 Main parts
1 Solar expansion vessel 12l
2 Thermostatic mixing valve for domestic hot water
3 Domestic hot water sensor
4 Solar regulator
5 Safety valve
6 Needle pressure gauge
7 Antithermosiphon valve operated by the spherical plug
valve
8 Solar circuit circulating pump
9 Glycol reservoir
10 Primary solar circuit filling and draining device
11 Primary solar coil sensor
12 Manual bleed degasser
13 Primary solar coil
14 Titan Active System anode
15 Plate exchanger on the primary boiler circuit
16 Domestic hot water circulating pump
17 Drain cock
3.2 Technical specifications
3.2.1. Characteristics of the DHW calorifier
DHW tank 220SHL
Primary circuit
(Heating water)
Maximum operating temperature °C 95
Maximum operating pressure bar 3
Primary circuit (Solar circuit fluid)
Maximum operating temperature °C 135
Maximum operating pressure bar 6
Exchanger capacity l 8.4
Exchange surface
m
2 1.25
Secondary circuit (domestic water)
Maximum operating temperature °C 95
L000225-A
1
2
14
16
3
4
5
6
7
8
9
17
11
12
13
15
10
220 SHL 3. Description
18/10/2012 - 300028214-001-02 8
