3. Description

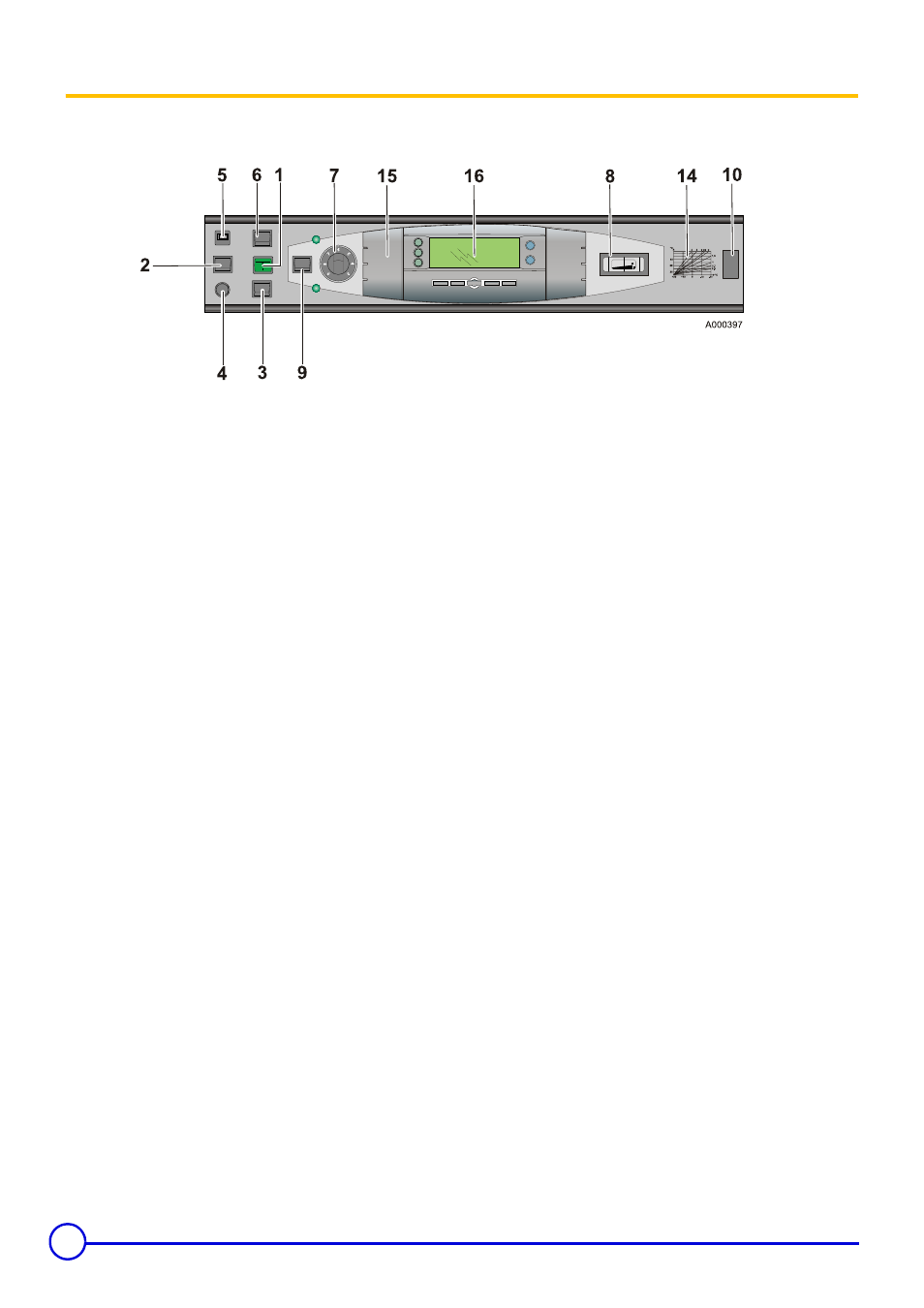

3.6 Description of the DIEMATIC-m3 control panel
„
Electromechanical components
1. General ON (1) / OFF (0) switch
2. Burner alarm indicator
This indicator lights up when the burner is on safety (faulty).
3. Switch AUTO/ ! /TEST-STB
Position AUTO: Automatic control
Position
! : Manual control
Position TEST-STB: Temporary action to test the safety
thermostat
4. Safety thermostat with manual reset
Set at 110° C
5. Timed circuit breaker (10 A) with delayed action and manual
reset
6. Pump shutdown switch
7. Boiler thermostat (30 to 90 °C)
A factory-set stop limits the maximum temperature to 75 °C. The
stop may be moved if necessary.
Z
See "Moving the thermostat stop".
8. Boiler thermometer. Boiler temperature display.
9. Switch for selecting the number of burner stages
10. Connector for the programming tool
14. "Boiler" heat curve
15. DIEMATIC-m3 regulator
16. Display
The panel must always be supplied with 230V voltage:
- to ensure the anti-grip of the heating pump,
- to ensure Titan Active System® operation when a titanium anode
is protecting the DHW tank.
Use the mode:
- "summer" to shut down the heating.
- "antifreeze" to shut down the boiler if you are to be absent.
Furthermore, if an interactive remote control (CDI 2) is connected
and the 1 switch is in the off
7 position, there will be no display on
the CDI 2.
