3. Description
3 Description
3.1 General description
The SGC 24 SOL solar column is a multi-energy unit which includes
a gas-fired condensing boiler and a 200-litre solar domestic hot water
tank in the same casing. The boiler is preset in the factory to operate on natural gases H and
E (Operating pressure: 20 mbar).
The boiler is fitted with a system to protect against overheating.

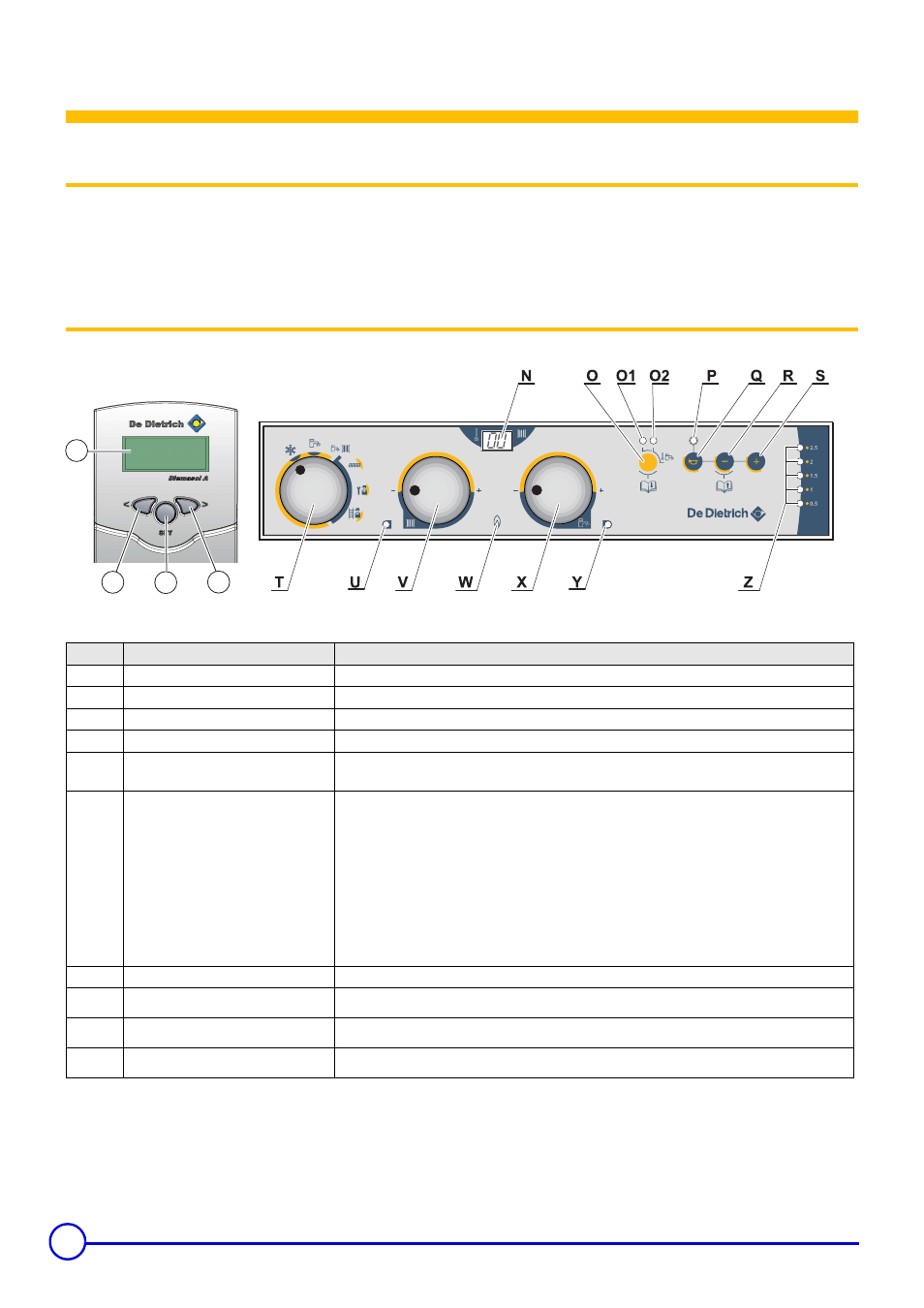

3.2 Control panel
C001771B
1
2 3 4
Position Key Description
1 Alphanumeric LCD display Displays the settings for the solar circuit.
2 < Returns to the previous menu or reduces the value of a setting.
3 > Moves to the next menu or increases the value of a setting.
4 SET Allows the displayed parameter to be accessed and modified.
N Temperature display The display shows the temperature of the water in the domestic hot water heating outlet when there is
a request for domestic hot water.
O
I Domestic hot water temperature
maintenance override button For SGC 24 SOL with Easymatic or Easyradio remote control:
Pressing the button for 1 second makes it possible to override domestic hot water tank loading
outside the time period programmed in the control unit up to midnight (indicator light O2 flash).
- Light O1 lit : The burner is ignited to reheat the domestic hot water tank.
- Light O2 off : No override or programme running.
- Light O2 lit : Comfort programme activated.
For SGC 24 SOL without remote control:
Light O1 lit : The burner is ignited to reheat the domestic hot water tank.
A power cut does not modify the selected operating mode.
P Safety shutdown light Indicates an error in the boiler.
Q Unlock button To restart the boiler after safety shutdown.
R
H Button Used only in measurement 8888, installer K and sweep M mode.
S Button Used only in sweep mode M .
