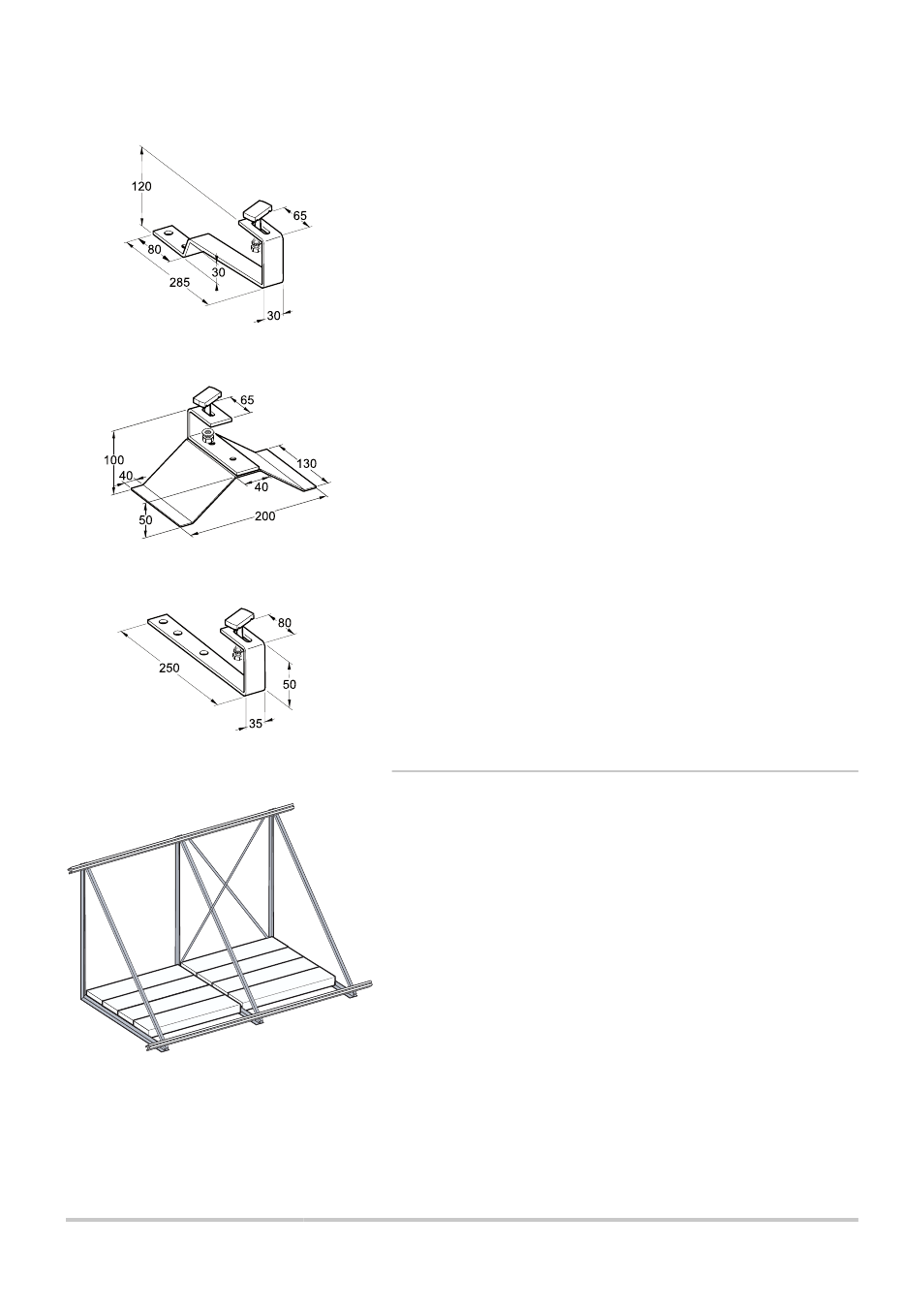

n Stainless steel roof anchor for flat tiles
EG 315 (4 pieces)
EG 316 (6 pieces)
These roof anchors are attached directly to the roof rafters (rafter-
mounted
anchors). Their slim design normally allows two roof
anchors to be fixed to one rafter.
n Stainless steel roof anchor for corrugated rooves
EG 317 (4 pieces)
EG 318 (6 pieces)
On corrugated rooves (fibrecement, asbestos, etc.) these roof
anchors are screwed to the roof rafters through the corrugated sheets
(rafter-mounted anchors). They are fixed by coach bolts (not
supplied with the roof anchors as they vary depending on the roofing
manufacturer).
n Stainless steel roof anchor for slate
EG 319 (4 pieces)
EG 320 (6 pieces)
These roof anchors are screwed to the rafters through the boarding
(rafter-mounted anchors). The roof anchor then has to be covered
in the normal way.
4.2.3. Terrace assembly kit
For terrace assembly, specific kits are available: EG 358, EG 359.
Refer to the instructions delivered with the package.
